KTC G48P5S OLED - Installation Instruction

15 pages

To Next Page

To Previous Page

300mm

100mm

300mm

100mm

Recommended screw size

(M6, required screwing depth is 10 ~ 15mm)

Pitch-row of wall mount

100×100mm/300×300mm

Installation Instruction

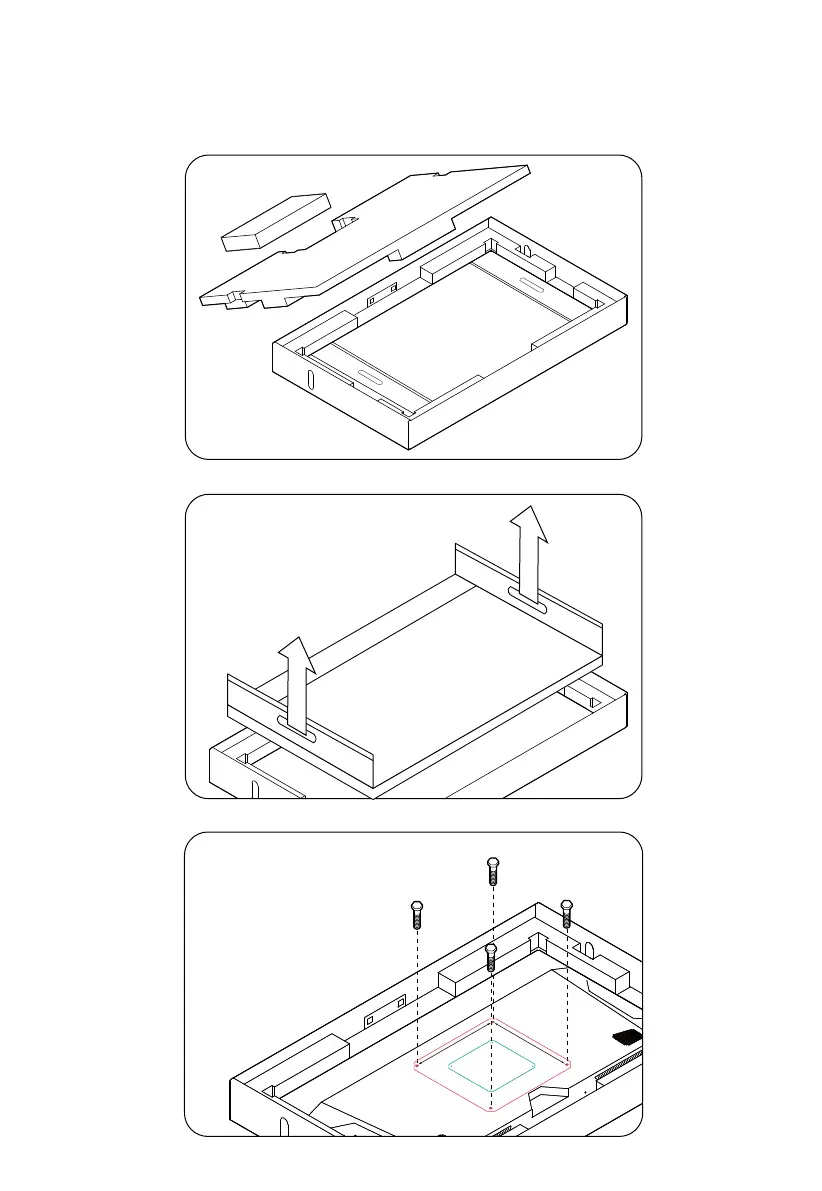

Instruction for wall mount installation (optional)

Please follow the arrow indicator

to take out the display
