KTM 250 XC TPI 2022 User Manual

ELECTRICAL SYSTEM 14
101

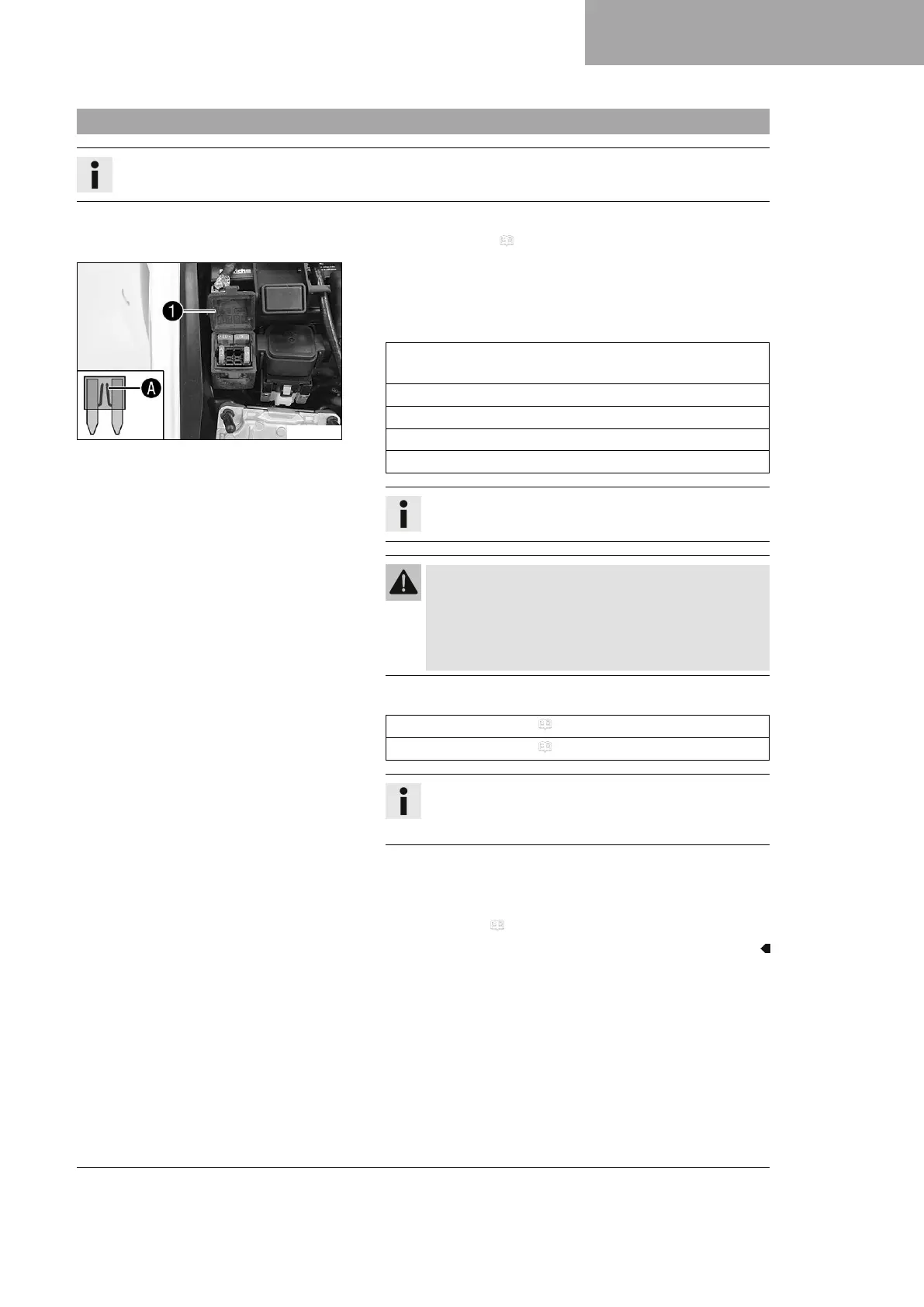

14.5 Changing the fuses of individual electrical power consumers
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
– Remove the seat. ( p. 59)
V01676-10
Main work
–
Open fuse box cover
1
.
– Remove the faulty fuse.
Guideline
Fuse 1 - 10 A - EFI control unit, oil pump, electronic fuel
injection, diagnostics connector
Fuse 2 - not assigned
Fuse 3 - not assigned
Fuse 4 - 5 A - fuel pump
Fuses SPARE - 10 A/5 A - spare fuse
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 135)
Fuse (75011088005) ( p. 135)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
–
Close the fuse box cover
1
.
Finishing work
– Mount the seat. ( p. 59)

KTM 250 XC TPI 2022 Specifications

General

Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Seat Height	950 mm
Fuel Tank Capacity	9.5 liters
Front Suspension	WP XPLOR 48
Rear Suspension	WP XPLOR PDS
Starter	Electric starter
Front Brake	260 mm disc
Rear Brake	220 mm disc
Ground Clearance	370 mm
Engine Type	2-stroke
Fuel System	Electronic Fuel Injection
Frame	Chrome-molybdenum frame
