ELECTRICAL SYSTEM 15
123
S03497-10
–

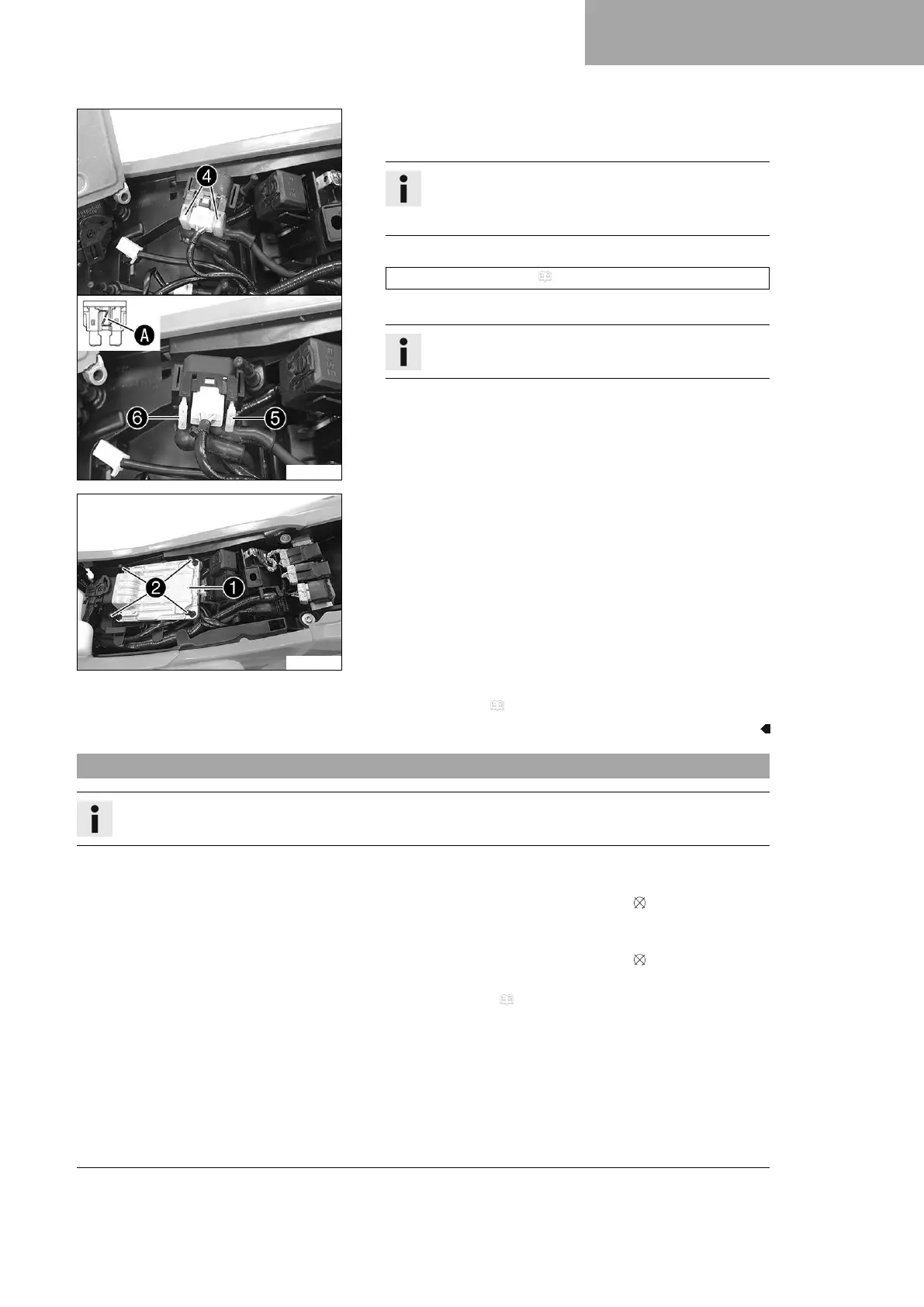

Take off protection caps
4
.
–
Remove faulty main fuse
5
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
6
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109120) ( p. 161)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
–
Attach the protection caps
4
.
–
Mount starter relay
3
onto the holder and route the cable.
S03495-10
–
Mount the EFI control unit
1
on the rubber lugs
2
.
Finishing work
– Mount the seat. ( p. 79)
15.5 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
(All EXC models)
– Press and hold the switch-off button while the engine is
idling until the engine stops.
(All XC‑W models)
– Press and hold the switch-off button while the engine is
idling until the engine stops.
– Remove the seat. ( p. 79)
