KTM 300 XC-W TPI 2019 Repair Manual

IGNITION SYSTEM 23
305
601211-10 H01812-10

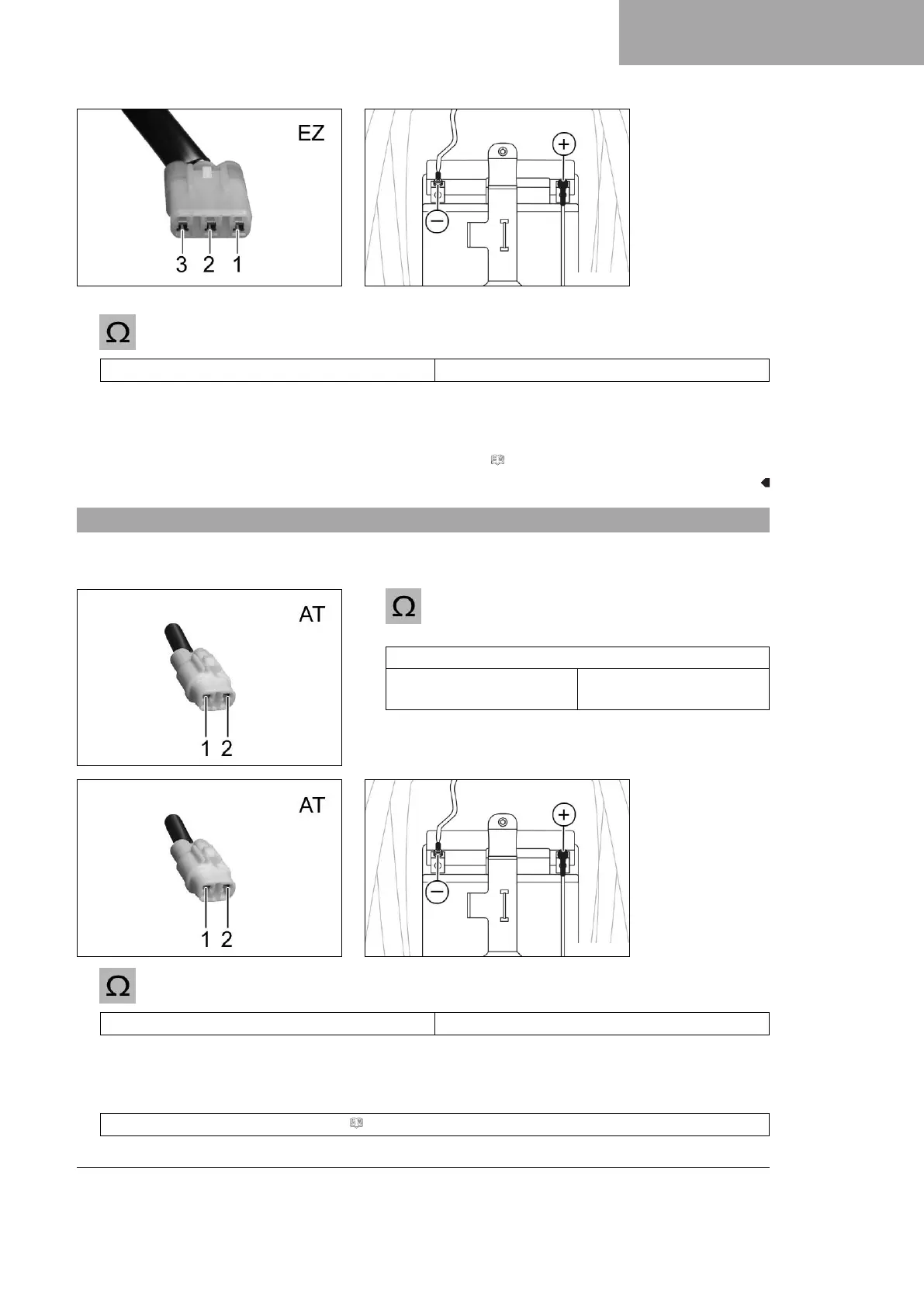

Stator winding - checking the short circuit to ground (terminal 31).
– Measure the resistance between the specified points.
Stator, connector EZ pin 1 – Measuring point Ground (−)
Resistance ∞ Ω
» If the indicated value does not correspond to the setpoint value:
– Change the stator.
Finishing work
– Mount the seat. ( p. 121)
23.5 Checking the crankshaft position sensor
Condition
Crankshaft speed sensor is disconnected.
400585-10
– Measure the resistance between the specified points.
Crankshaft position sensor, connector AT pin 1 –
Crankshaft position sensor, connector AT pin 2
Crankshaft speed sensor
Resistance at: 20 °C
(68 °F)
80 … 120 Ω
» If the specification is not reached:
– Change the crankshaft position sensor.
400585-10 H01812-10
– Measure the resistance between the specified points.
Crankshaft position sensor, connector AT pin 1 – Measuring point Ground (−)
Resistance ∞ Ω
» If the specification is not reached:
– Change the crankshaft position sensor.
– Connect the special tool to the multimeter.
Peak voltage adapter (58429042000) ( p. 367)

KTM 300 XC-W TPI 2019 Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	2-stroke
Fuel System	TPI (Transfer Port Injection)
Front Suspension	WP XPlor 48
Rear Suspension	WP XPlor PDS
Front Brake	260 mm disc
Rear Brake	220 mm disc
Fuel Capacity	9 liters
Frame	Central-tube frame with double-cradle
