WHEELS, TIRES 13
103
S01633-10
–

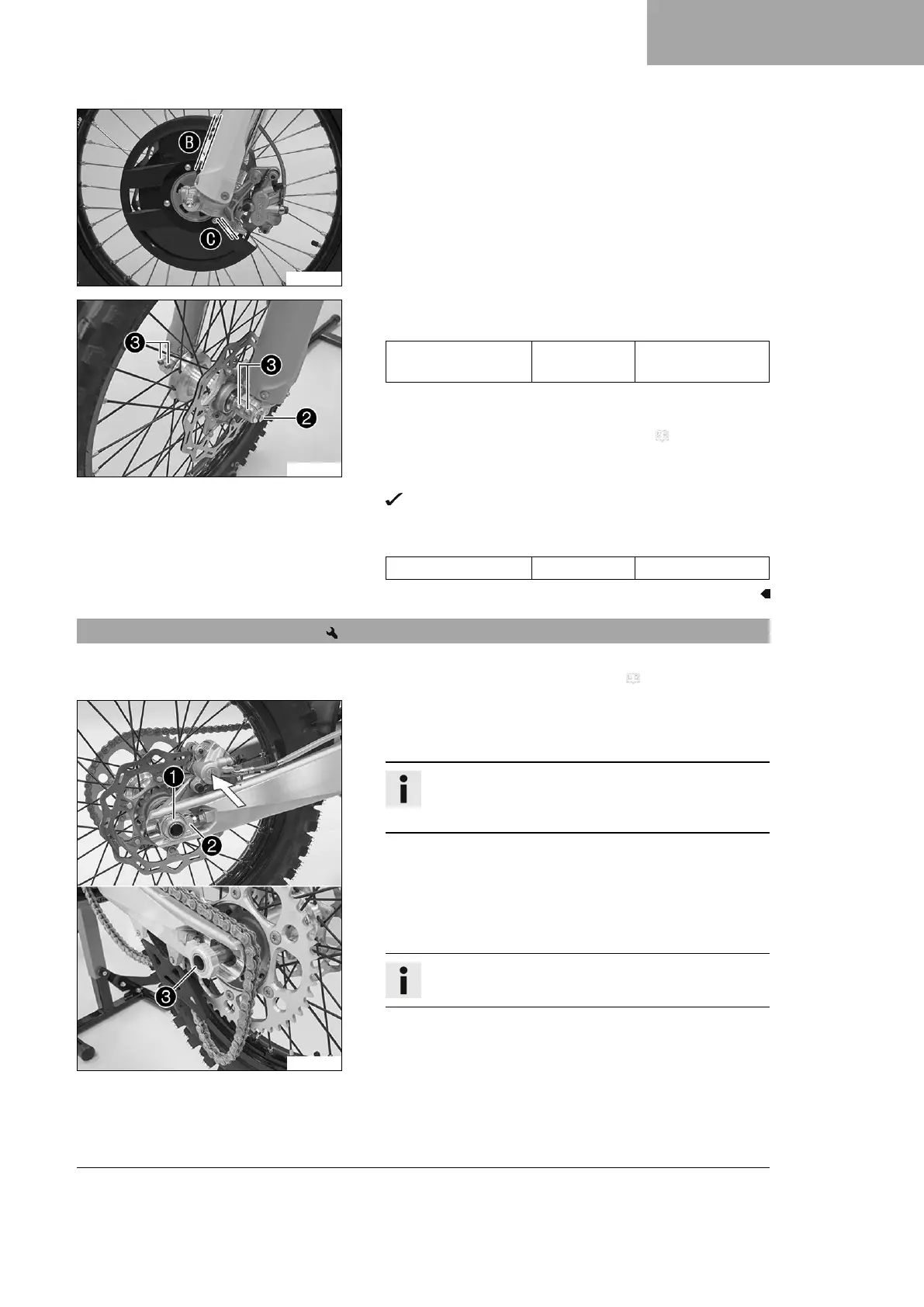

Align the brake disc guard so that distance
B
and
C
are
equal in size.
F00141-11
–
Mount and tighten screw
2
.
Guideline
Screw, front wheel
spindle
M20x1.5 35 Nm (25.8 lbf ft)
– Operate the hand brake lever several times until the brake lin-
ings are seated correctly against the brake disc.
– Remove the motorcycle from the lift stand. ( p. 51)
– Operate the front brake and compress the fork a few times
firmly.
The fork legs straighten.
–
Tighten screws
3
.
Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
13.3 Removing the rear wheel
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 51)
V00296-10
Main work
– Manually press the brake caliper toward the brake disc to push
back the brake piston.
Info
Make sure that you do not press the brake caliper
against the spokes when pushing back the brake piston.
–
Remove nut
1
.
–
Take off chain adjuster
2
. Pull out wheel spindle
3
far
enough to allow the rear wheel to be pushed forward.
– Push the rear wheel forward as far as possible. Remove the
chain from the rear sprocket.
Info
Cover the components to protect them against damage.
