15 ELECTRICAL SYSTEM
184
S04757-10
Main work
–

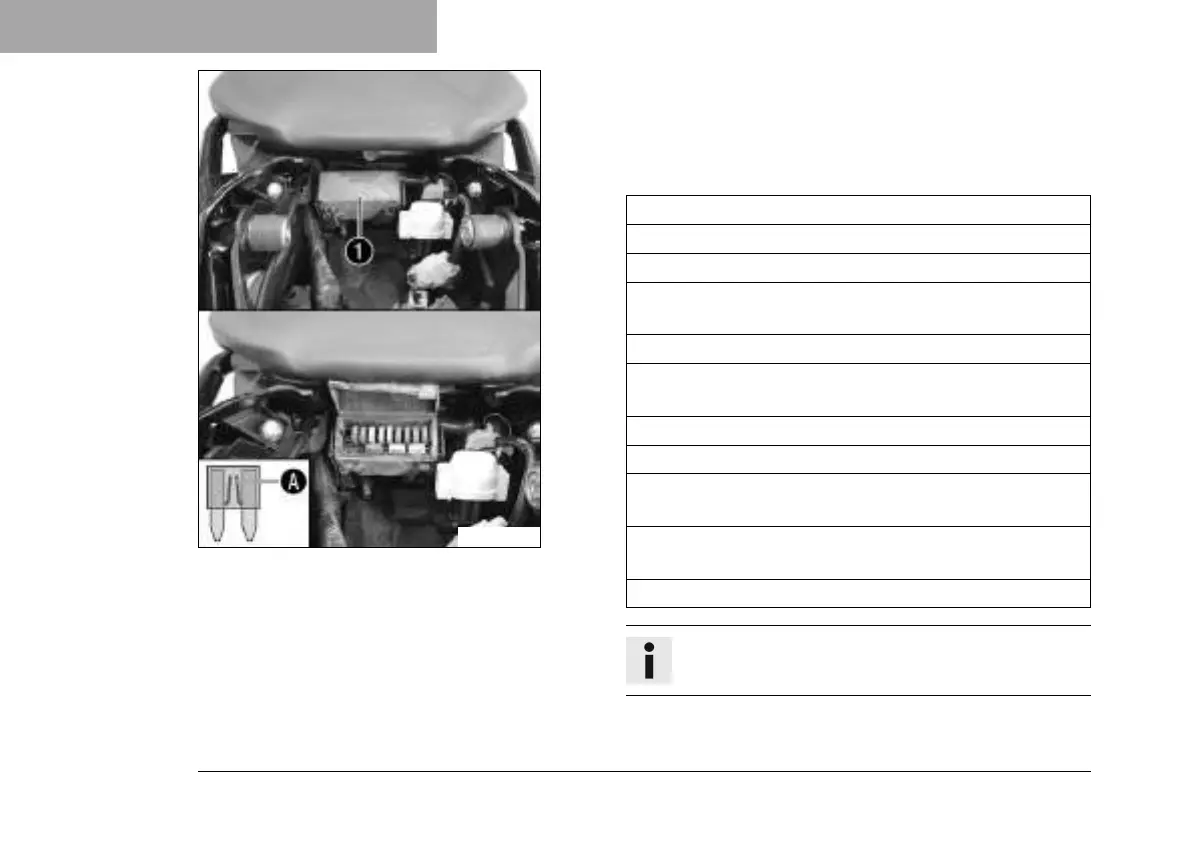

Open fuse box cover
1
.
(EU B.D/AU/AR/BR/CN/CO/MY/PH/TH)
– Remove the faulty fuse.
Guideline
Fuse 1 - 30 A - main fuse
Fuse 2 - 10 A - combination instrument
Fuse 3 - 10 A - power relay
Fuse 4 - 15 A - ignition coil, fuel pump, start auxiliary
relay, horn
Fuse 5 - 15 A - radiator fan
Fuse 6 - 15 A - brake light, turn signal, high beam, low
beam, position light, tail light, license plate lamp
Fuse 7 - 10 A - engine control unit, ABS control unit
Fuse 8 - 10 A - alarm system (optional)
Fuse 9 - 10 A - permanent positive for auxiliary equip-
ment (ACC1)
Fuse 10 - 10 A - ignition positive for auxiliary equipment
(ACC2)
Fuse SPARE - 10 A/15 A/30 A - spare fuses
Info
A faulty fuse has a burned-out fuse wire
A
.
