8 PREPARING FOR USE 40

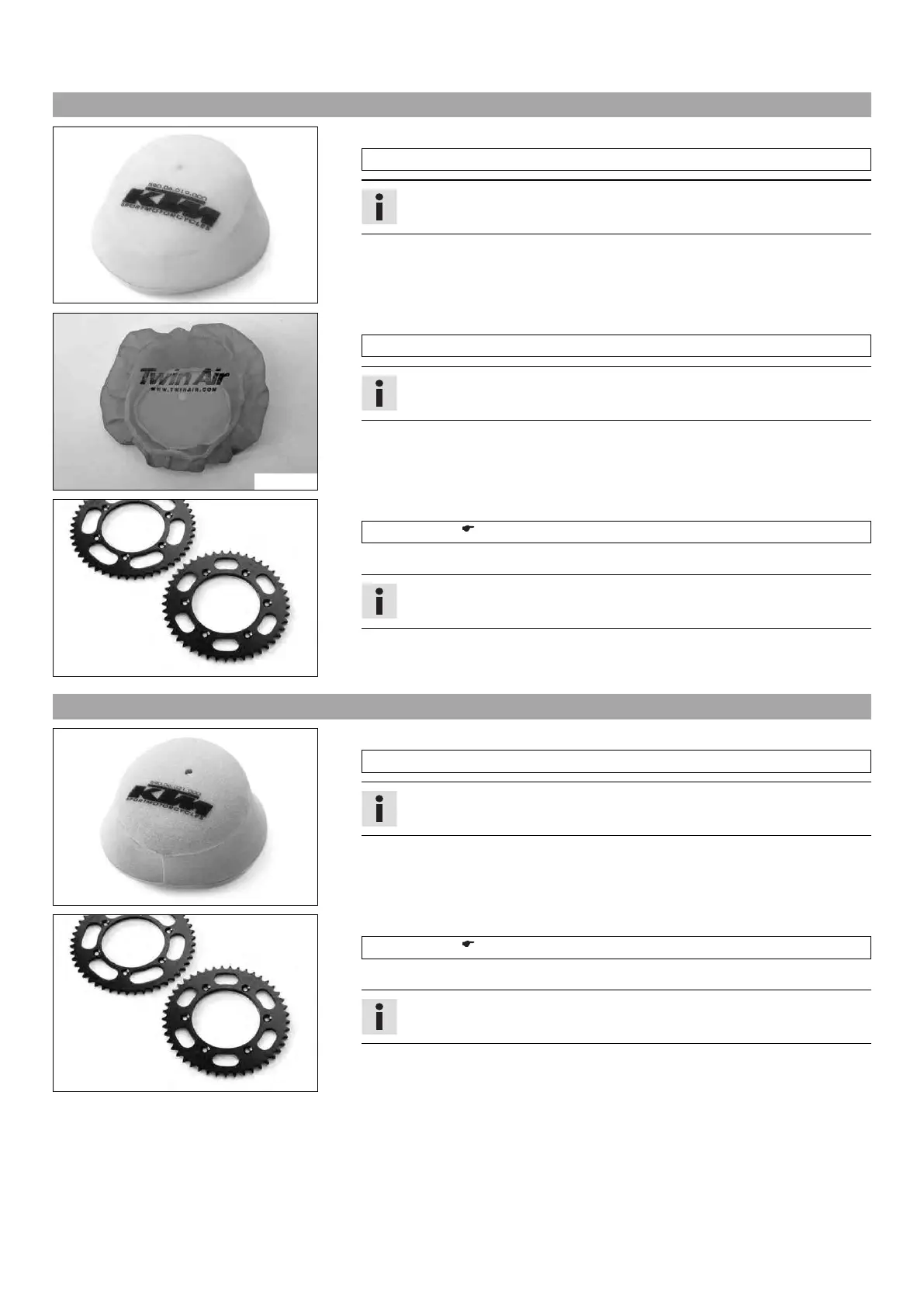

8.4 Preparing for rides on dry sand

600869-01

– Fit a dust cover on the air filter.

Dust protection device for air filter (77206920000)

Info

See the KTM PowerParts fitting instructions.

600871-01

– Fit a sand cover on the air filter.

Sand protection device for air filter (59006022000)

Info

See the KTM PowerParts fitting instructions.

600868-01

– Clean the chain.

Chain cleaner ( p. 128)

– Fit the steel sprocket.

Tip

Do not grease the chain.

– Clean the radiator fins.

– Straighten bent radiator fins carefully.

8.5 Preparing for rides on wet sand

600870-01

– Fit a rain cover on the air filter.

Waterproofing device for air filter (77206921000)

Info

See the KTM PowerParts fitting instructions.

600868-01

– Clean the chain.

Chain cleaner ( p. 128)

– Fit the steel sprocket.

Tip

Do not grease the chain.

– Clean the radiator fins.

– Straighten bent radiator fins carefully.
