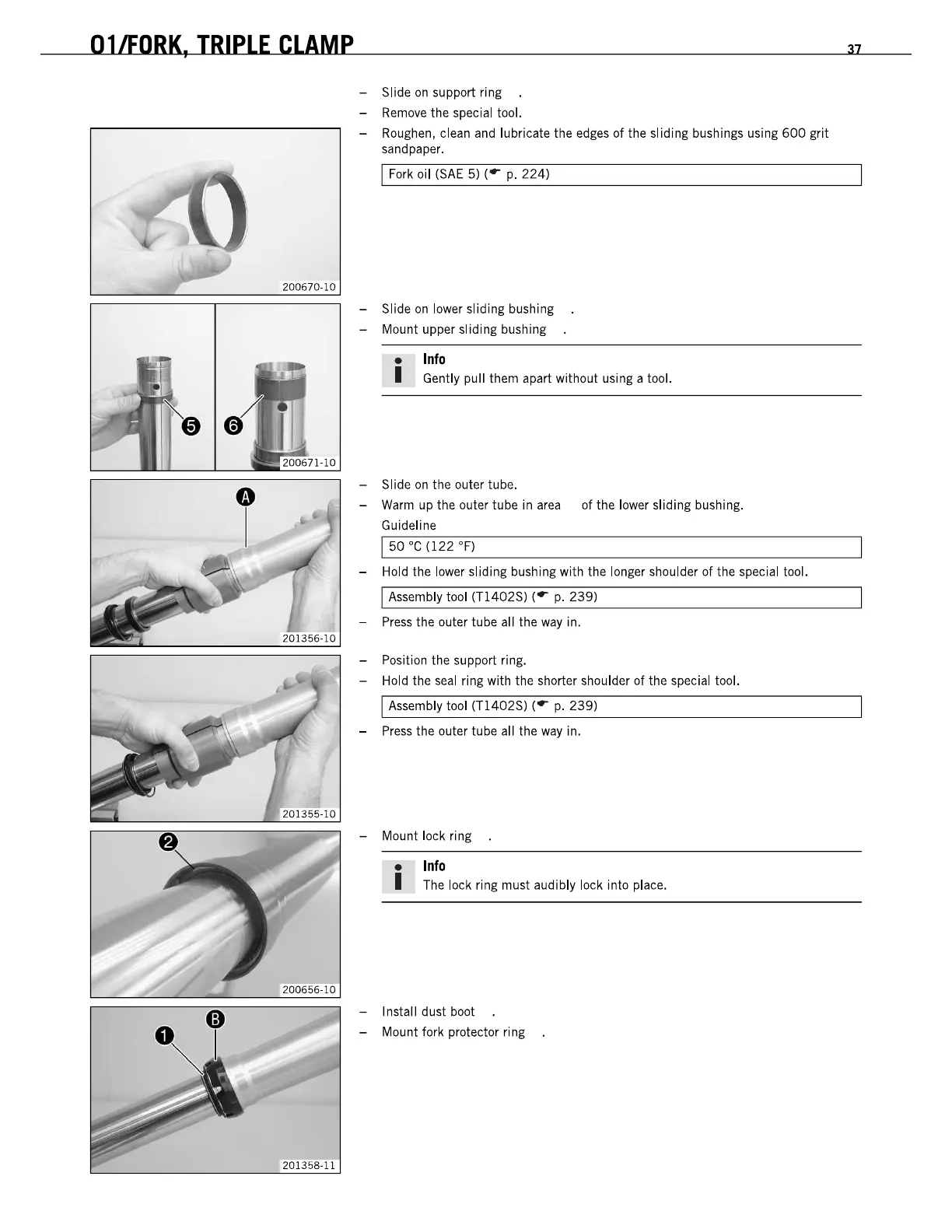

Ol/FORK,
TRIPLE
CLAMP
200670-1Q
- Slide
on
support ring
-
Remove
the special tool.
- Roughen, clean and lubricate the
edges
of the sliding bushings using
600
grit
sandpaper.
1 Fork oil
(SAE
5) (
or
p.
224)
- Slide
on
lower sliding bushing
- Mount upper sliding bushing
•
Info
I Gently pull them apart without using a tool.
- Slide
on
the outer tube.
-
Warm
up the outer tube in
area
of the lower sliding bushing.
Guideline
150°C
(122
OF)
- Hold the lower sliding bushing with the longer shoulder of the special tool.
1 Assembly tool (T1402S) (
or
p.
239)
-
Press
the outer tube all the
way
in.
- Position the support ring.
- Hold the seal ring with the shorter shoulder of the special tool.
1 Assembly tool (T1402S) (
or
p.
239)
-
Press
the outer tube all the
way
in.
-
Mou
nt lock
ri
ng
•
Info
I The lock ring must audibly lock into place.
- Install dust boot
-
Mou
nt fork protector
ri
ng
37
