KTM 450 SX-F User Manual

11 SERVICE WORK ON THE CHASSIS 45

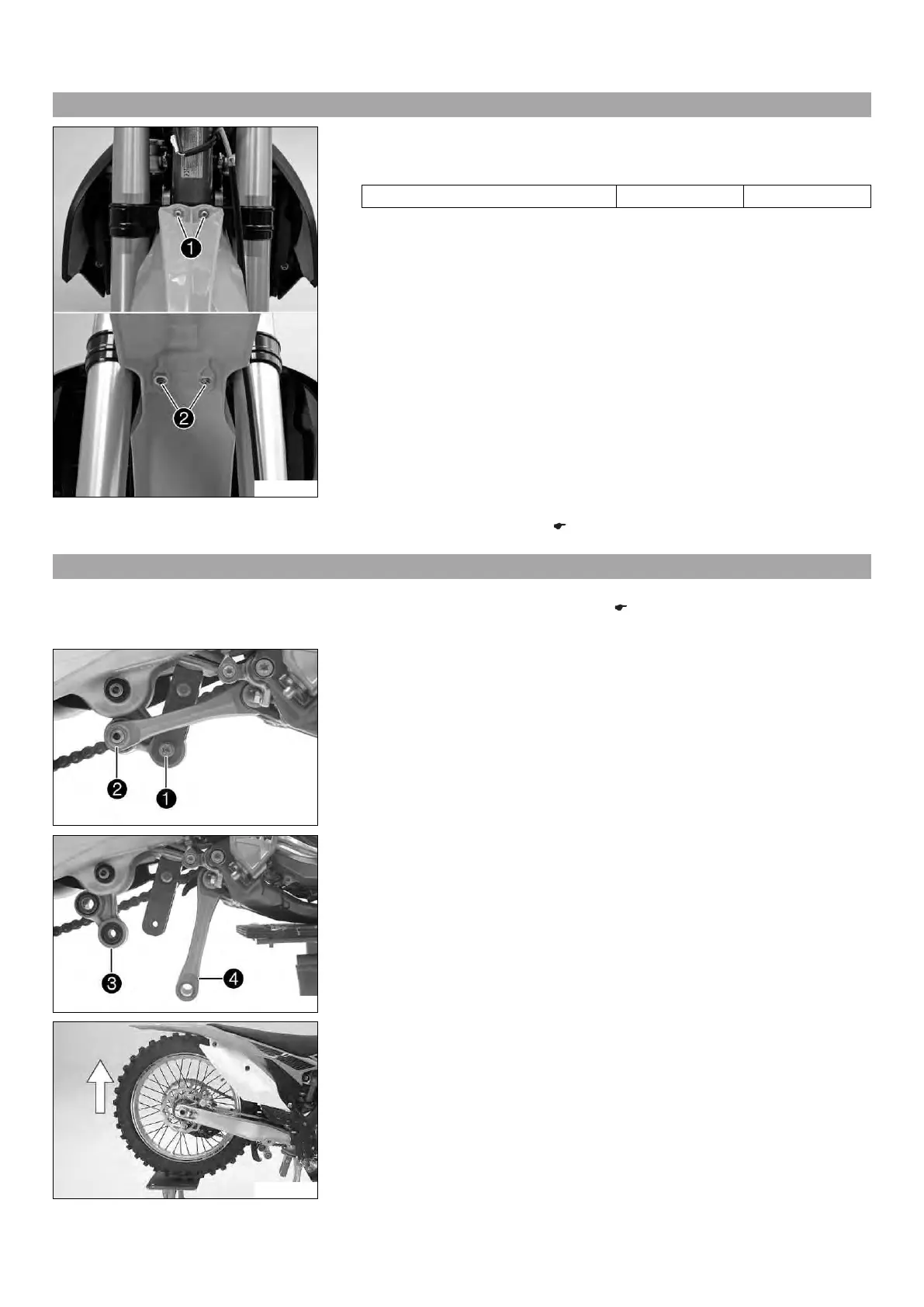

11.21 Installing the front fender
C00420-10
Main work
–
Position the front fender. Mount and tighten screws
1
and
2
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 44)
11.22 Removing the shock absorber x
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 36)
–
Remove the manifold. x
L01294-10
Main work
–
Remove screw
1
.
–
Remove fitting
2
.
L01293-10
–
Press angle lever
3
toward the rear.
–
Press linkage lever
4
downward.
S00126-10
– Lift the swingarm.

KTM 450 SX-F Specifications

General

Engine Type	Single Cylinder, 4-Stroke
Displacement	449.9 cc
Bore x Stroke	95 mm x 63.4 mm
Starter	Electric starter
Transmission	5-speed
Fuel System	Keihin EFI, throttle body 44 mm
Cooling	Liquid cooled
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	370 mm
Seat Height	950 mm
Compression Ratio	12.75:1
Ignition	Keihin EMS
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Final Drive	5/8 x 1/4"
Frame	Central-tube frame with double-cradle
