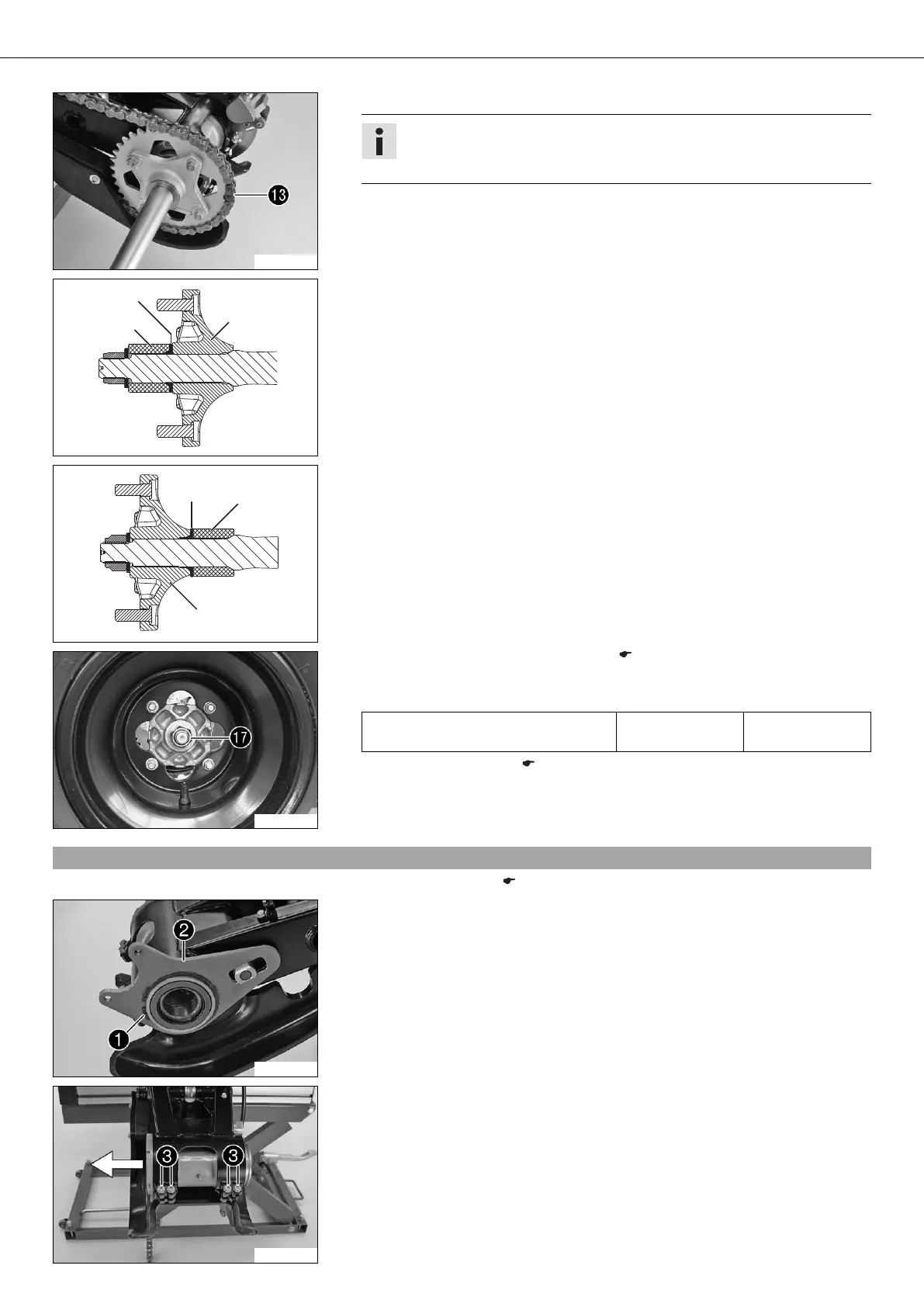

10/REAR WHEEL 67
600409-11
– Place the chain on the sprocket. Mount chain joint.
Info
When installing the chain joint, always make sure that the closed side of the
joint is facing forward (direction of travel).
100103-11
Setting a narrow toe width:
– Mount wheel hub.
– Mount conical ring with the cone facing outward.
– Mount spacing sleeve with the cone facing inward.
– Mount the washer and the new self-locking nut.
100104-11
Setting a wide toe width:
– Mount spacing sleeve with the cone facing inward.
– Mount conical ring with the cone facing outward.
– Mount wheel hub.
– Mount the washer and the new self-locking nut.
100102-11
– Remove the vehicle from the work stand. ( P. 14)
– Tighten nuts on both sides.
Specification
Nut, rear wheel hub M18x1,5 130Nm
(95.9lbfft)
– Check the chain tension. ( P. 62)
14.10Changing the rear axle bearing
– Remove the rear axle. ( P. 64)
600415-10
– Remove lock ring.
– Remove brake caliper support.
600416-10
– Mark the position of the rear wheel eccentric in the swingarm.
– Loosen screw. Remove the rear wheel eccentric in the direction of the arrow.
