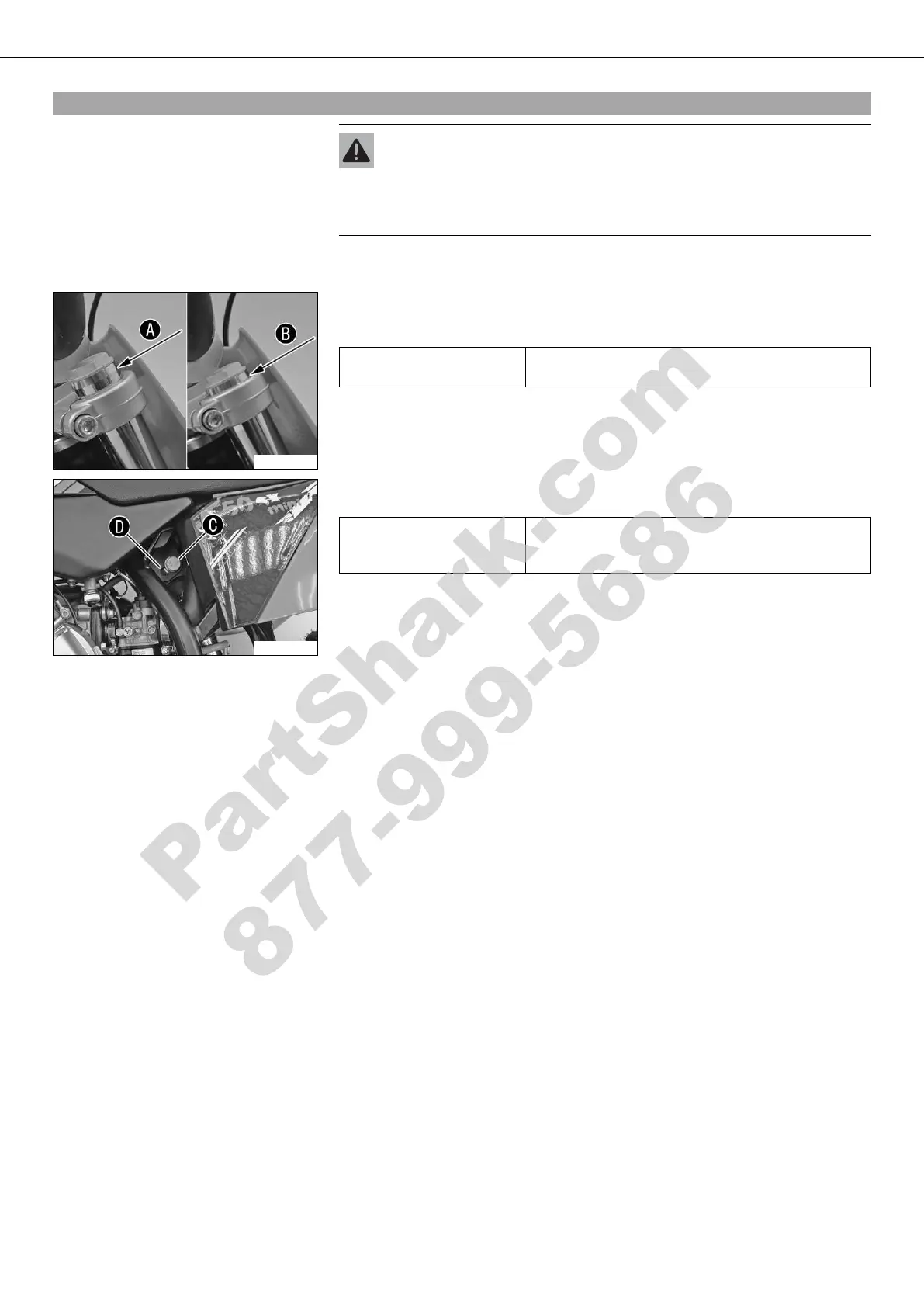

MOTORCYCLE 8
3.4Vehicle level
Warning
Danger of accidentsModifications to the suspension settings can seriously alter
the vehicle's ride behavior.
Following modifications, ride slowly at first to get the feel of the new ride
behavior.
The vehicle level can be adjusted at the front by means of the clamping of the fork legs
and at the rear by means of the positioning of the shock absorber.
700523-10
The fork overhang can be individually adjusted to the size of the child. In the lower
position (standard), the fork is completely pushed through. In the higher position ,
the cone is flush with the upper triple clamp.
Fork overhang over the
upper triple clamp
10… 17 mm (0.39… 0.67 in)
700521-11
The seat height can be individually adjusted to the size of the child. The shock
absorber can be mounted at two different holes in the frame.
Difference between low
(standard) and high seat
position
25 mm (0.98 in)
