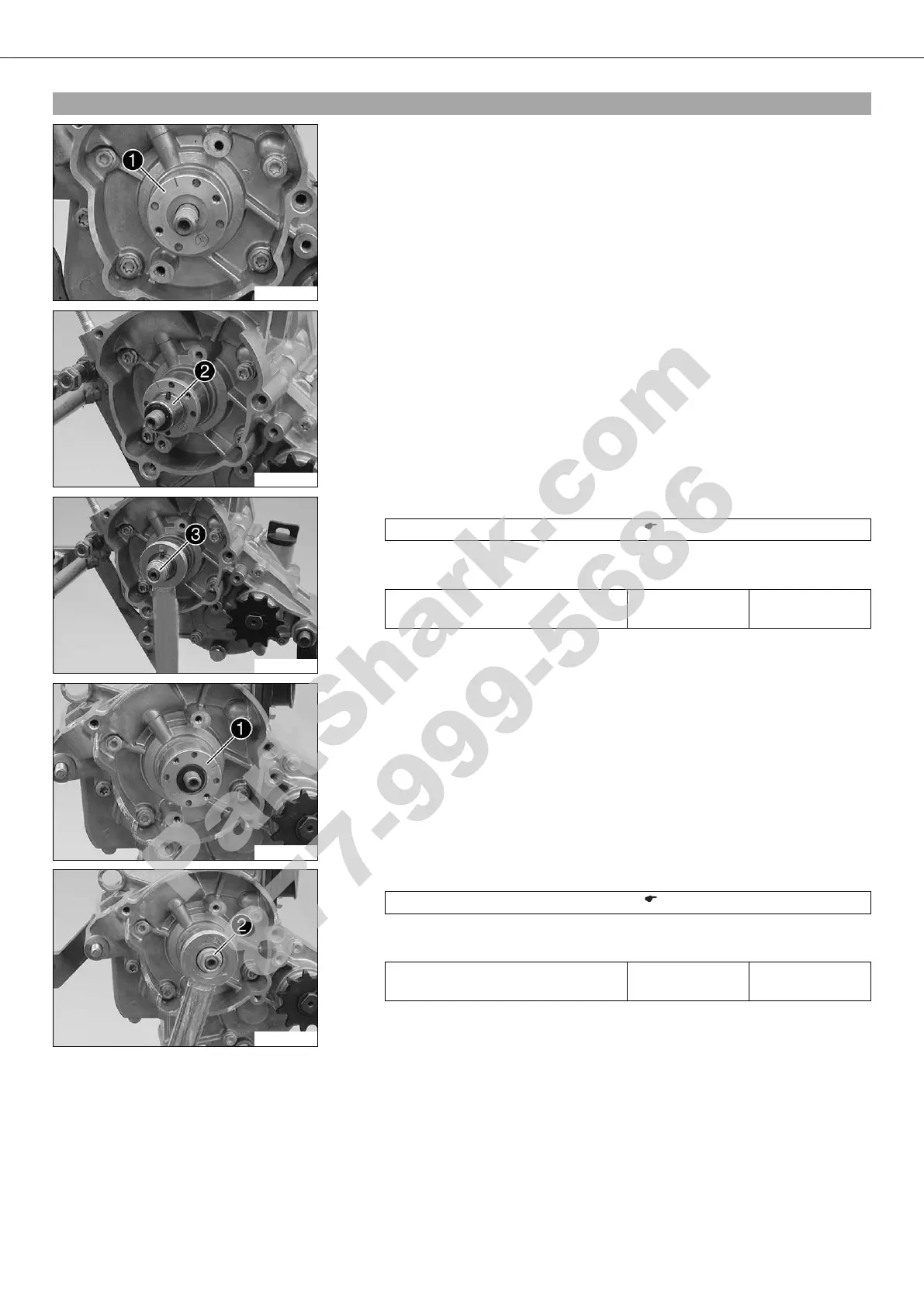

KTM 50 SX Mini Repair Manual

30/ASSEMBLING THE ENGINE 88
17.17Installing the rotor
300478-10
(50 SX Mini)
– Ensure that the spring washer is seated properly.
– Mount rotor .
300476-11
– Mount distance sleeve .
300475-11
– Hold the rotor in place with the special tool.
Holding spanner, rotor (45229012000) ( p. 147)
– Mount and tighten nut .
Guideline
Nut, rotor M10x1.25 15 Nm
(11.1 lbf ft)
300855-10
(50 SX, 50 SX Junior)
– Ensure that the spring washer is seated properly.
– Mount rotor .
300853-11
– Hold the rotor in place with the special tool.
Holding spanner, rotor (45229012000) ( p. 147)
– Mount the washer and nut . Tighten the nut.
Guideline
Nut, rotor M10x1.25 15 Nm
(11.1 lbf ft)
