3 WORK

– Place the handlebar support in the required position. Mount

and tighten screws

Guideline

Screw, handle-

bar support

M10 40 Nm (29.5 lbf ft)

Loctite

243™

– Position the handlebar.

Info

Make sure the cables and wiring are positioned cor-

rectly.

–

Position the handlebar clamps. Mount screws

and tighten

evenly.

Guideline

Screw, handlebar

clamp

M8 20 Nm (14.8 lbf ft)

Info

Make sure the gap widths are even.

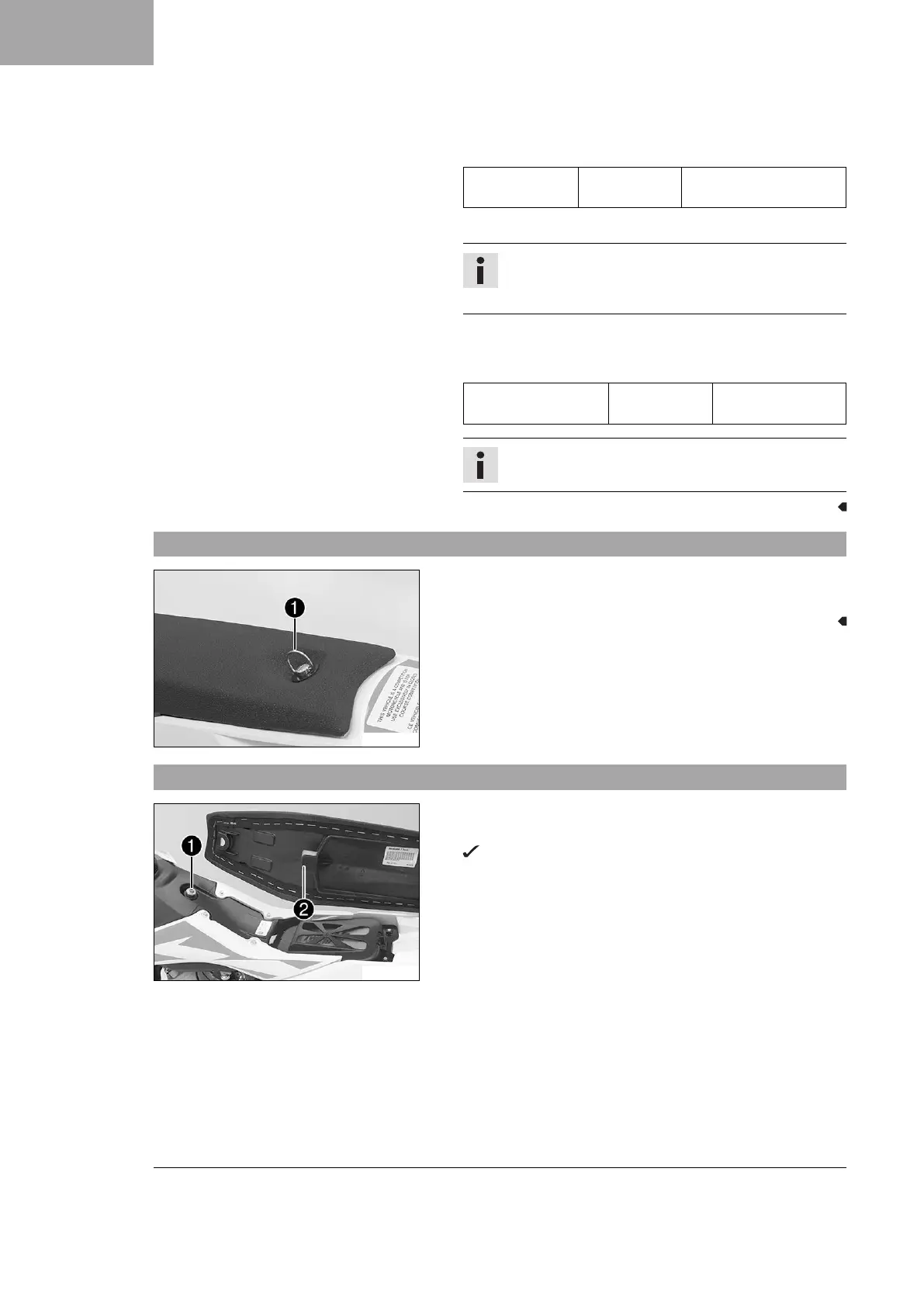

3.4 Removing the seat

H00066-10

–

Open quick release

and raise the rear of the seat.

– Pull back the seat and remove it.

3.5 Mounting the seat

H01431-10

–

Hook the seat onto screw

, lower the seat at the rear, and

push it forward.

Catch

hooks into the fuel tank.

Other manuals for KTM 50 SX Mini

Questions and Answers:

Need help?

Do you have a question about the KTM 50 SX Mini and is the answer not in the manual?

General

Engine Type	Single-cylinder, 2-stroke
Cooling System	Liquid cooled
Transmission	Automatic
Starter	Kickstarter
Rear Suspension	WP XACT Monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Weight	40 kg
Bore x Stroke	39.5 mm x 40 mm
Weight (without fuel)	40 kg
Front Brake Type	Hydraulic disc brake
Rear Brake Type	Hydraulic disc brake
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP XACT 35 USD, Ø 35 mm
