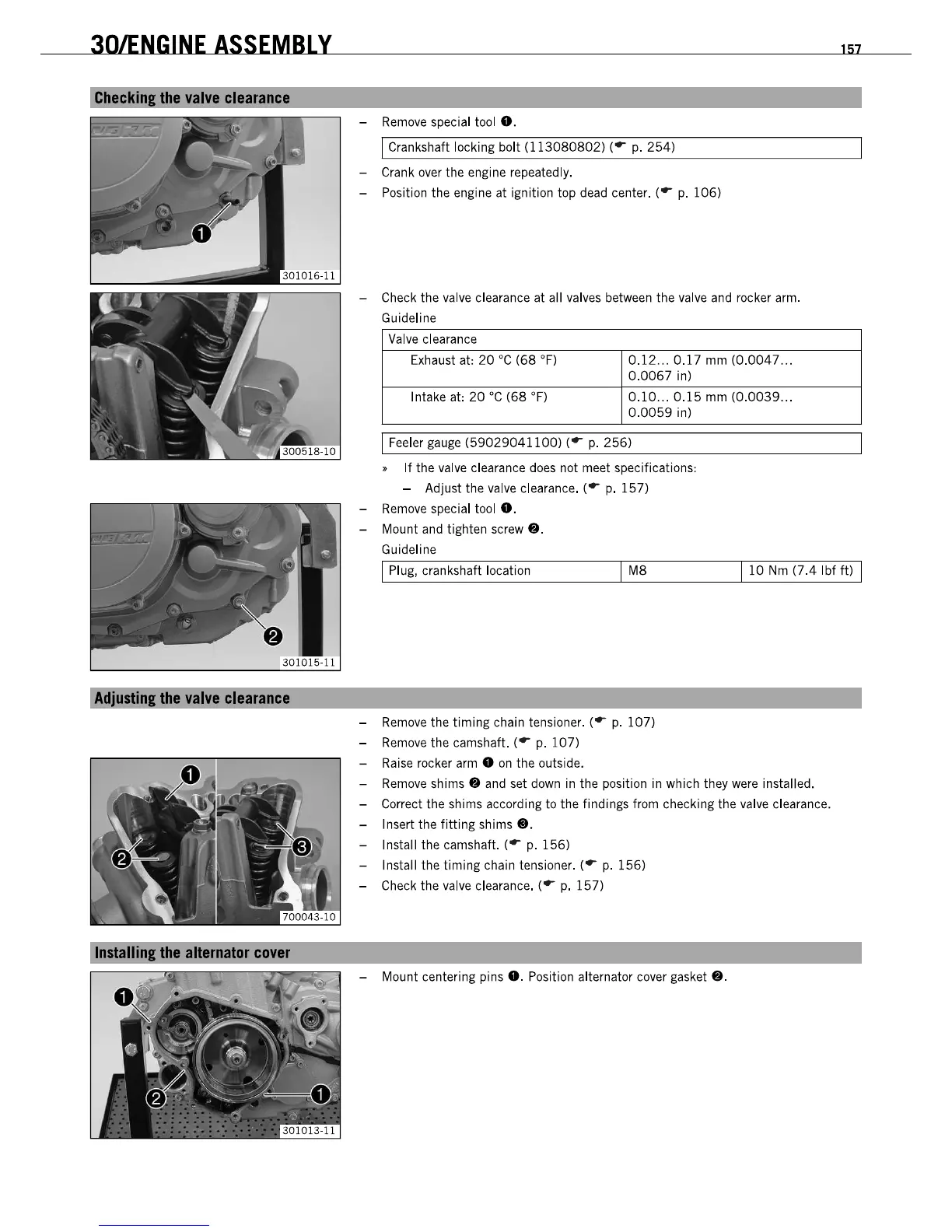

301ENGINE ASSEMBLY
Adjultinllhe valve clearance
Installinllh8 alternator CDV8r
- Remove special tool O.
I Crankshaft locking bolt (113080802) (r p. 254)
- Crank over the engine repeatedly.
- Position the engine at ignition top dead center.
(r p. 106)
- Check the valve clearance at all valves between the valve and rocker arm.
Guideline
Valve clearance
Exhaust at:
20 'C (68 'F)
I ntake at: 20 'C (68 'F)
0.12 ... 0.17 mm (0.0047 ...
0.0067
in)
0.10 ... 0.15 mm (0.0039 ...
0.0059
in)
I Feeler gauge (59029041100) (r p. 256)
• If the valve clearance does not meet specifications:
- Adjust the valve clearance.
(r p. 157)
- Remove special tool O.
- Mount and tighten screw •.
Guideline
157
I Plug, crankshaft location
110 Nm (7.4 Ibf It) I
- Remove the timing chain tensioner. (r p. 107)
- Remove the camshaft. (r p. 107)
- Raise rocker arm 0 on the outside.
- Remove
shims. and set down in the position in which they were installed.
- Correct the shims according to the findings from checking the valve clearance.
- Insert the
fitting shims •.
- Install the camshaft. (r p. 156)
- Install the timing chain tensioner. (r p. 156)
- Check the valve clearance. (r p. 157)
- Mount centering pins •. Position alternator cover gasket •.
301ENGINE ASSEMBLY
Adjultinllhe valve clearance
Installinllh8 alternator CDV8r
- Remove special tool O.
I Crankshaft locking bolt (113080802) (r p. 254)
- Crank over the engine repeatedly.
- Position the engine at ignition top dead center.
(r p. 106)
- Check the valve clearance at all valves between the valve and rocker arm.
Guideline
Valve clearance
Exhaust at:
20 'C (68 'F)
I ntake at: 20 'C (68 'F)
0.12 ... 0.17 mm (0.0047 ...
0.0067
in)
0.10 ... 0.15 mm (0.0039 ...
0.0059
in)
I Feeler gauge (59029041100) (r p. 256)
• If the valve clearance does not meet specifications:
- Adjust the valve clearance.
(r p. 157)
- Remove special tool O.
- Mount and tighten screw •.
Guideline
157
I Plug, crankshaft location
110 Nm (7.4 Ibf It) I
- Remove the timing chain tensioner. (r p. 107)
- Remove the camshaft. (r p. 107)
- Raise rocker arm 0 on the outside.
- Remove
shims. and set down in the position in which they were installed.
- Correct the shims according to the findings from checking the valve clearance.
- Insert the
fitting shims •.
- Install the camshaft. (r p. 156)
- Install the timing chain tensioner. (r p. 156)
- Check the valve clearance. (r p. 157)
- Mount centering pins •. Position alternator cover gasket •.

KTM 530 EXC EU 2009 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	95 mm x 72 mm
Compression Ratio	11.9:1
Transmission	6-speed
Cooling System	Liquid cooled
Clutch	Wet multi-disc clutch, hydraulically operated
Subframe	Aluminum
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP PDS shock absorber
Suspension Travel Front	300 mm
Suspension Travel Rear	335 mm
Rear Wheel	2.15 x 18"
Front Tire	90/90-21"
Rear Tire	140/80-18"
Silencer	Aluminum
Ground Clearance	380 mm
Displacement	510.4 cm³
Fuel System	Keihin FCR-MX 41
Ignition	Kokusan DC-CDI
Frame	Steel trellis frame
Handlebar	Aluminum, Ø 28/22 mm
Front Brake	Disc brake, 260 mm
Rear Brake	Brembo disc brake Ø 220 mm
Front Wheel	1.60 x 21"
Chain	5/8 x 1/4"
Steering Head Angle	63.5 degrees
Wheelbase	1485 mm
Tank Capacity	9.5 l
Power	52 hp (38.2 kW)
