KTM 530 EXC EU 2009 User Manual

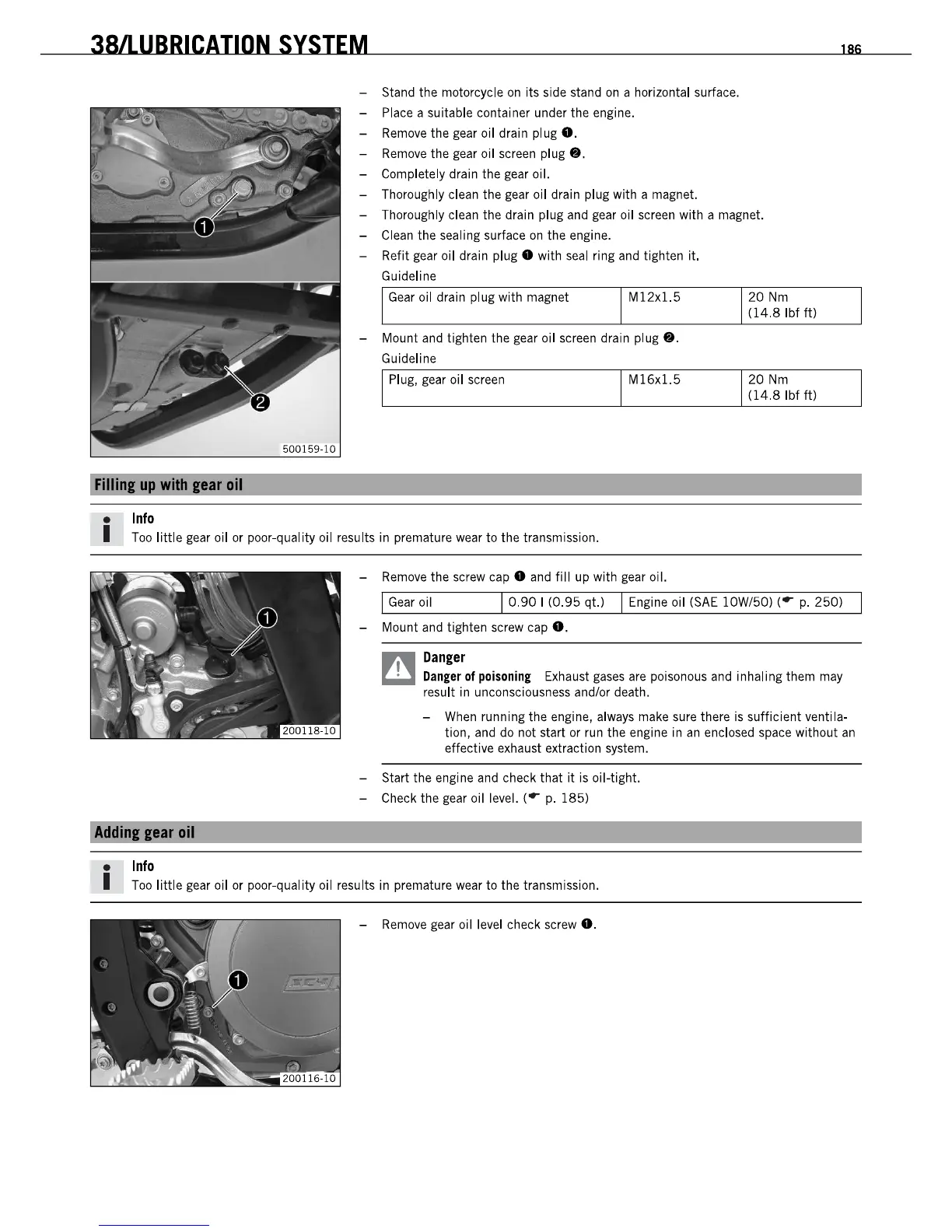

38/l.UBRICATION SYSTEM 186
Fillinl up with lear oil
• Info
- Stand the motorcycle on its side stand on a horizontal surface.
- Place a suitable container under
the engine.
- Remove
the gear oil drain plug •.
- Remove the gear oil screen plug e.
- Completely drain the gear oil.
- Thoroughly clean the gear oil drain plug with a magnet.
- Thoroughly clean the drain plug and gear oil screen with a magnet.
- Clean the sealing surface
on the engine.
- Refit gear oil drain plug
0 with seal ring and tighten it.
Guideline
Gear oil drain plug with magnet M12x1.5
- Mount and tighten the gear oil screen drain plug •.
Guideline
Plug, gear oil screen
M16x1.5
20 Nm
(14.8 Ibf It)
20 Nm
(14.8 Ibf It)
I Too little gear oil or poor-quality oil results in premature wear to the transmission.
Addinllllr oil
• Info
- Remove the screw cap. and fill up with gear oil.
I Gear oil
I 0.90 I (0.95 qt.) I Engine oil (SAE lOW/50) (r p. 250)
- Mount and tighten screw cap O .
... Danger
t.,;".;lI Danger 01 poisoning Exhaust gases are poisonous and inhaling them may
result in unconsciousness and/or death.
- When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
- Start
the engine and check that it is oil-tight.
- Check the gear oil level.
(r p. 185)
I Too little gear oil or poor-quality oil results in premature wear to the transmission.
- Remove gear oil level check
screw •.
38/l.UBRICATION SYSTEM 186
Fillinl up with lear oil
• Info
- Stand the motorcycle on its side stand on a horizontal surface.
- Place a suitable container under
the engine.
- Remove
the gear oil drain plug •.
- Remove the gear oil screen plug e.
- Completely drain the gear oil.
- Thoroughly clean the gear oil drain plug with a magnet.
- Thoroughly clean the drain plug and gear oil screen with a magnet.
- Clean the sealing surface
on the engine.
- Refit gear oil drain plug
0 with seal ring and tighten it.
Guideline
Gear oil drain plug with magnet M12x1.5
- Mount and tighten the gear oil screen drain plug •.
Guideline
Plug, gear oil screen
M16x1.5
20 Nm
(14.8 Ibf It)
20 Nm
(14.8 Ibf It)
I Too little gear oil or poor-quality oil results in premature wear to the transmission.
Addinllllr oil
• Info
- Remove the screw cap. and fill up with gear oil.
I Gear oil
I 0.90 I (0.95 qt.) I Engine oil (SAE lOW/50) (r p. 250)
- Mount and tighten screw cap O .
... Danger
t.,;".;lI Danger 01 poisoning Exhaust gases are poisonous and inhaling them may
result in unconsciousness and/or death.
- When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
- Start
the engine and check that it is oil-tight.
- Check the gear oil level.
(r p. 185)
I Too little gear oil or poor-quality oil results in premature wear to the transmission.
- Remove gear oil level check
screw •.

KTM 530 EXC EU 2009 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	95 mm x 72 mm
Compression Ratio	11.9:1
Transmission	6-speed
Cooling System	Liquid cooled
Clutch	Wet multi-disc clutch, hydraulically operated
Subframe	Aluminum
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP PDS shock absorber
Suspension Travel Front	300 mm
Suspension Travel Rear	335 mm
Rear Wheel	2.15 x 18"
Front Tire	90/90-21"
Rear Tire	140/80-18"
Silencer	Aluminum
Ground Clearance	380 mm
Displacement	510.4 cm³
Fuel System	Keihin FCR-MX 41
Ignition	Kokusan DC-CDI
Frame	Steel trellis frame
Handlebar	Aluminum, Ø 28/22 mm
Front Brake	Disc brake, 260 mm
Rear Brake	Brembo disc brake Ø 220 mm
Front Wheel	1.60 x 21"
Chain	5/8 x 1/4"
Steering Head Angle	63.5 degrees
Wheelbase	1485 mm
Tank Capacity	9.5 l
Power	52 hp (38.2 kW)
