KTM 530 EXC EU 2009 User Manual

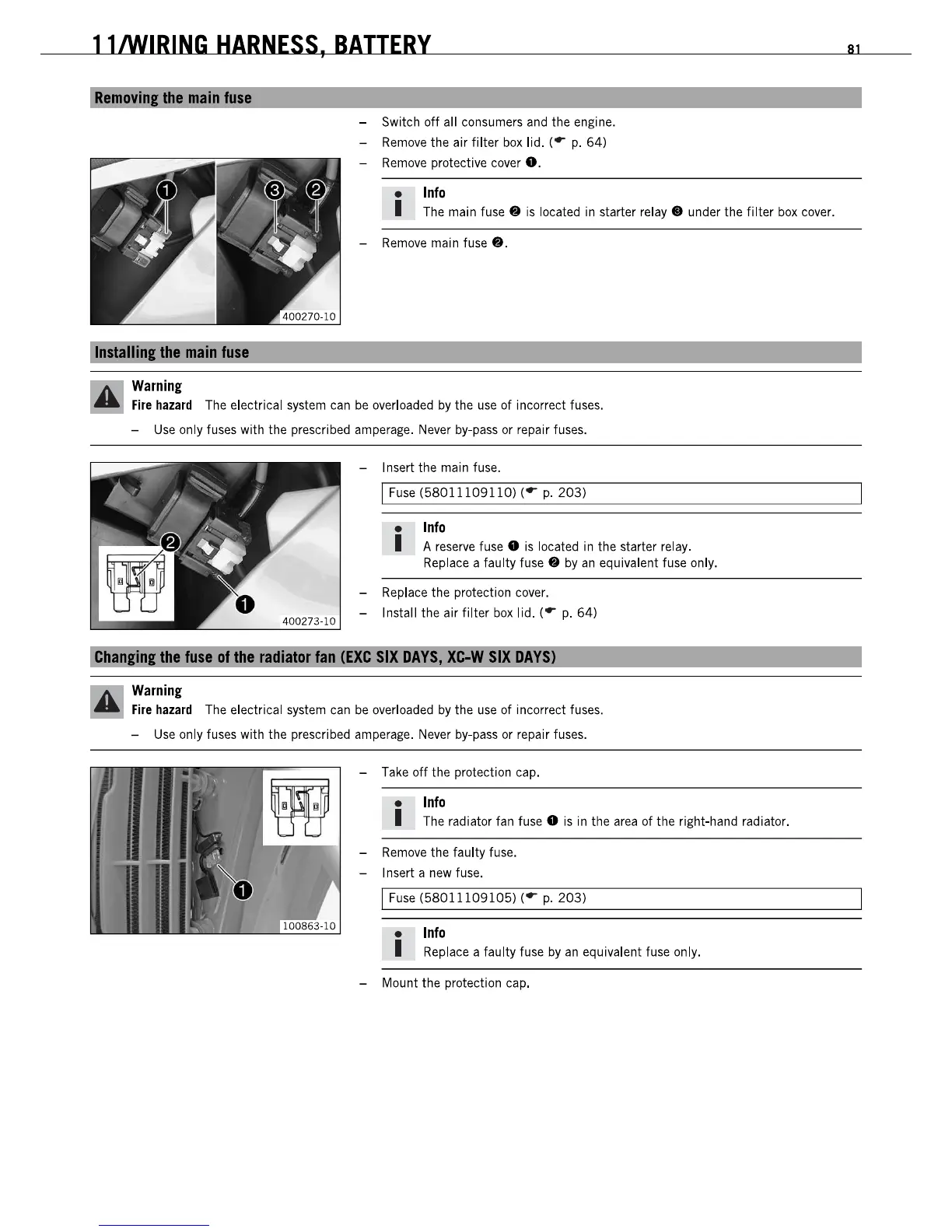

lllWlRING HARNESS, BATTERY 81
RemDYinlllle main fuse
- Switch off all consumers and the engine.
-
Remove the air filter box lid. ( .- p. 64)
-
Remove protective cover O.
• Info
I The main fuse. is located in starter relay. under the filter box cover.
-
Remove main fuse •.
Warning
Fir. hazard The electrical system can be overloaded by the use of incorrect fuses.
-
Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
- Insert the main fuse.
I Fuse (58011109110) ( .- p. 203)
• Info
I A reserve fuse. is located in the starter relay.
Replace a faulty
fuse. by an equivalent fuse only.
- Replace the protection cover.
- Install the air
filter box lid. ( .- p. 64)
Chanlinl tha fusa of ilia radiator fan (EXC SIX DAYS, XC-W SIX DAYS)
Warning
Fire hazard The electrical system can be overloaded by the use of incorrect fuses.
-
Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
- Take
off the protection cap.
• Info
I The radiator fan fuse. is in the area of the right-hand radiator.
-
Remove the faulty fuse.
- I nsert a
new fuse.
I Fuse (58011109105) ( .- p. 203)
• Info
I Replace a faulty fuse by an equivalent fuse only.
- Mount the protection cap.
lllWlRING HARNESS, BATTERY 81
RemDYinlllle main fuse
- Switch off all consumers and the engine.
-
Remove the air filter box lid. ( .- p. 64)
-
Remove protective cover O.
• Info
I The main fuse. is located in starter relay. under the filter box cover.
-
Remove main fuse •.
Warning
Fir. hazard The electrical system can be overloaded by the use of incorrect fuses.
-
Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
- Insert the main fuse.
I Fuse (58011109110) ( .- p. 203)
• Info
I A reserve fuse. is located in the starter relay.
Replace a faulty
fuse. by an equivalent fuse only.
- Replace the protection cover.
- Install the air
filter box lid. ( .- p. 64)
Chanlinl tha fusa of ilia radiator fan (EXC SIX DAYS, XC-W SIX DAYS)
Warning
Fire hazard The electrical system can be overloaded by the use of incorrect fuses.
-
Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
- Take
off the protection cap.
• Info
I The radiator fan fuse. is in the area of the right-hand radiator.
-
Remove the faulty fuse.
- I nsert a
new fuse.
I Fuse (58011109105) ( .- p. 203)
• Info
I Replace a faulty fuse by an equivalent fuse only.
- Mount the protection cap.

KTM 530 EXC EU 2009 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	95 mm x 72 mm
Compression Ratio	11.9:1
Transmission	6-speed
Cooling System	Liquid cooled
Clutch	Wet multi-disc clutch, hydraulically operated
Subframe	Aluminum
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP PDS shock absorber
Suspension Travel Front	300 mm
Suspension Travel Rear	335 mm
Rear Wheel	2.15 x 18"
Front Tire	90/90-21"
Rear Tire	140/80-18"
Silencer	Aluminum
Ground Clearance	380 mm
Displacement	510.4 cm³
Fuel System	Keihin FCR-MX 41
Ignition	Kokusan DC-CDI
Frame	Steel trellis frame
Handlebar	Aluminum, Ø 28/22 mm
Front Brake	Disc brake, 260 mm
Rear Brake	Brembo disc brake Ø 220 mm
Front Wheel	1.60 x 21"
Chain	5/8 x 1/4"
Steering Head Angle	63.5 degrees
Wheelbase	1485 mm
Tank Capacity	9.5 l
Power	52 hp (38.2 kW)
