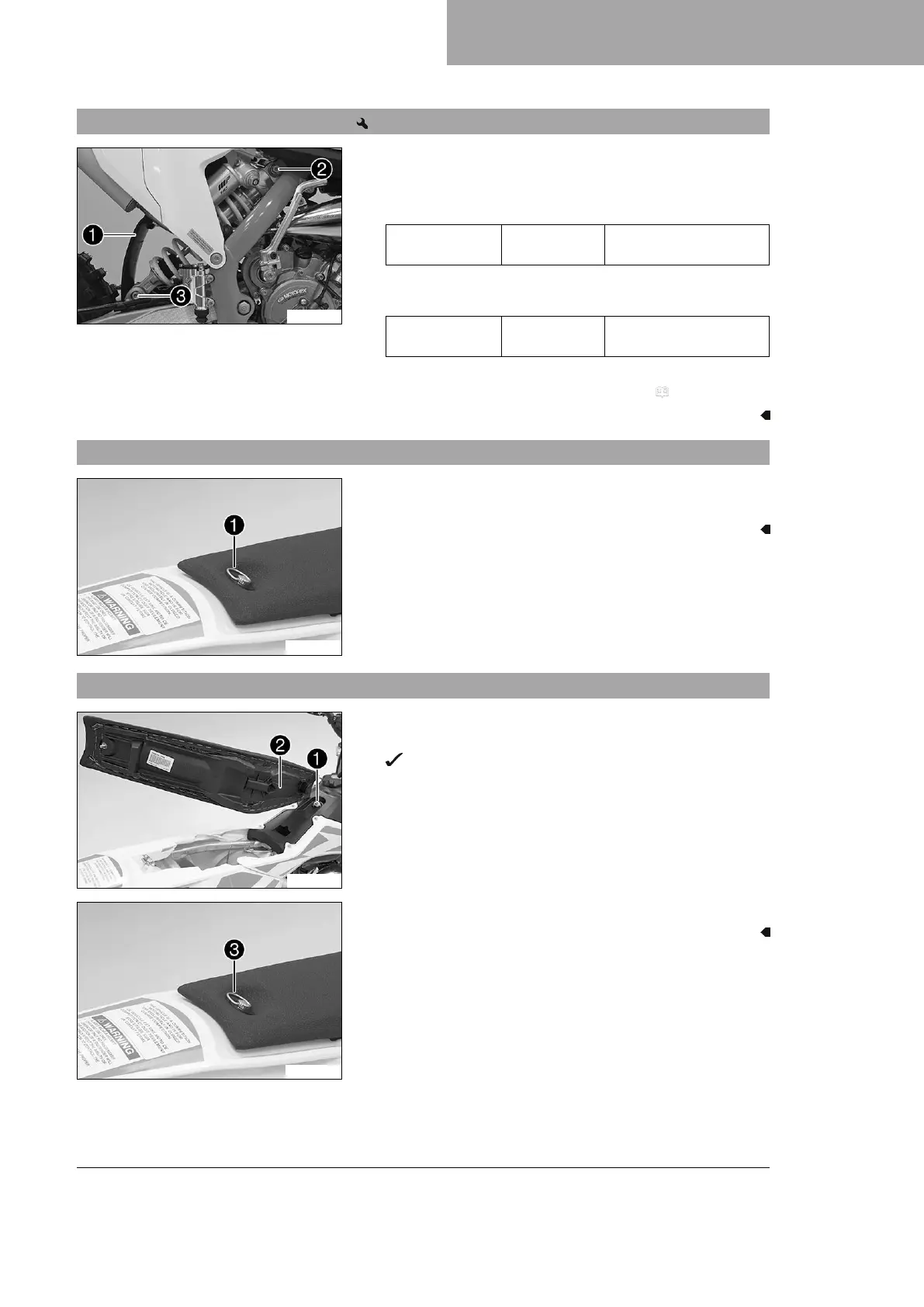

11.19 Installing the shock absorber
F02174-11
Main work
–
Push splash protector
1
to the side and position the shock
absorber. Mount and tighten screw
2
.
Guideline
Screw, top
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
3
.
Guideline
Screw, bottom
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
Finishing work
– Remove the motorcycle from the lift stand. ( p. 39)
11.20 Removing the seat
H00122-10
–
Open quick release
1
and raise the rear of the seat.
– Pull back the seat and remove it.
11.21 Mounting the seat
V00208-10
–
Hook seat onto screw
1
and lower the seat at the rear and
push it forward.
Holding lug
2
hooks into the fuel tank.
H00122-11
–
Close quick release
3
.
