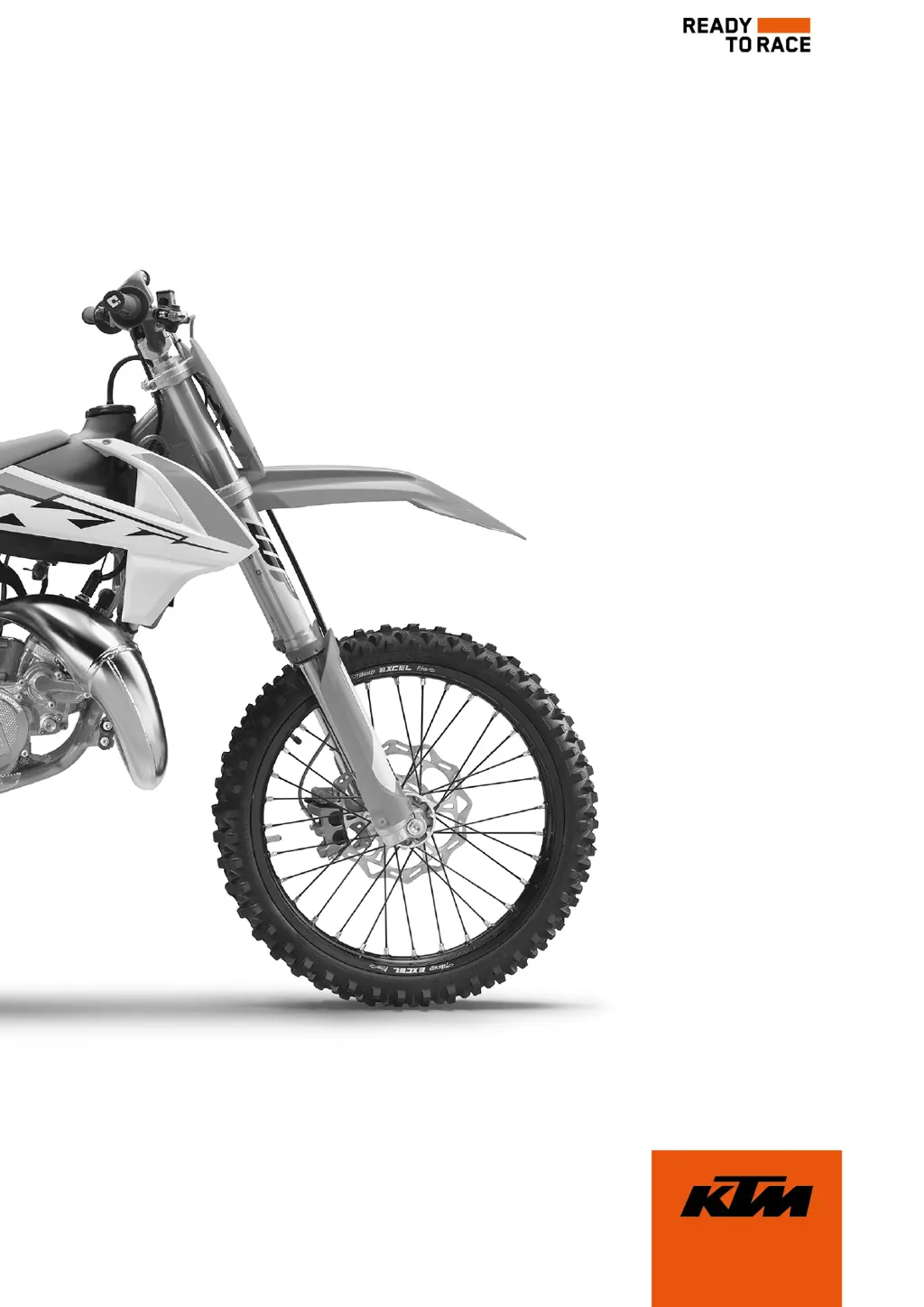

OWNER'S MANUAL 2023
85 SX
Art. no. 3214636en

Table of Contents

Questions and Answers

  • J
    Jennifer ReidAug 18, 2025
    Why does my KTM 85 SX 2023 engine have too little power?
    • J
      Joe HawkinsAug 18, 2025
      If your KTM Motorcycle engine has too little power, the issue could stem from several factors. A disrupted fuel supply could be the cause, so check the fuel tank breather, clean the fuel tap, and check/adjust the carburetor components. A very dirty air filter can also restrict power; therefore, clean the air filter and air filter box. Leaks in the exhaust system, a deformed system, or insufficient glass fiber yarn filling in the main silencer can also reduce power. Inspect the exhaust system for damage and replace the glass fiber yarn filling of the main silencer. A fault in the ignition system is another potential cause, so check and adjust the ignition system. Lastly, check the membrane and reed valve housing for any damage.
  • S
    scottchaseAug 22, 2025
    What to do if my KTM Motorcycle engine does not speed up?
    • F
      fcastanedaAug 22, 2025
      If your KTM Motorcycle engine does not speed up, it could be due to a few reasons. The carburetor might be running over because the float needle is dirty or worn, so check and set the carburetor components. Loose carburetor jets can also cause this issue, so check and set the carburetor components. Another possible cause is a fault in the ignition system, so check and adjust the ignition system.
  • J
    Jason RobertsonAug 25, 2025
    What to do if KTM Motorcycle engine overheats?
    • M
      Michele HernandezAug 26, 2025
      If your KTM Motorcycle engine is overheating, several factors could be responsible. Start by checking the cooling system for leaks and ensure the coolant level is correct. Insufficient airflow can also cause overheating, so switch off the engine when standing. Clean the radiator fins if they are very dirty. Foam formation in the cooling system can also lead to overheating, so drain and refill the coolant. Inspect the cylinder head and cylinder head gasket for damage. A bent radiator hose can restrict coolant flow, so replace it if necessary. Finally, an incorrect ignition point due to a loose stator can cause overheating, so adjust the ignition system.
  • M
    Michael DixonAug 28, 2025
    How to fix KTM 85 SX 2023 Motorcycle engine stalls or is popping into the carburetor?
    • A
      Adrian JohnsonAug 29, 2025
      If your KTM Motorcycle engine stalls or is popping into the carburetor, it could be due to a lack of fuel. Ensure the fuel tap handle is in the ON position and refuel if necessary. Another cause could be the engine taking in bad air, so check the intake flange and carburetor for tightness. Also, inspect the connector or ignition coil for looseness or oxidation; clean the connector and treat it with contact spray if needed.
  • J
    jonathanspencerSep 1, 2025
    Why KTM 85 SX 2023 Motorcycle engine has no idle speed?
    • J
      Jennifer BestSep 1, 2025
      If your KTM Motorcycle engine has no idle speed, it may be due to a blocked idling jet, in which case you should check/set the carburetor components. Another possibility is distorted adjusting screws on the carburetor; adjust the idle speed of the carburetor. A defective spark plug or ignition system can also cause this problem; change the spark plug and check the ignition coil and spark plug connector.
  • W
    Wayne WilkinsonSep 4, 2025
    What causes white smoke emission (steam in exhaust gas) in KTM 85 SX 2023?
    • C
      csmithSep 4, 2025
      White smoke emission (steam in exhaust gas) in your KTM Motorcycle is typically caused by a damaged cylinder head or cylinder head gasket. You should check the cylinder head and cylinder head gasket for damage.
  • T
    Theresa BennettSep 8, 2025
    What causes gear oil to exit at the vent hose on a KTM 85 SX 2023 Motorcycle?
    • R
      robertcastroSep 8, 2025
      Gear oil exiting at the vent hose on your KTM Motorcycle is likely due to too much gear oil being added. Check the gear oil level to ensure it is correct.
  • L
    lindavalenzuelaSep 12, 2025
    What causes water in the gear oil of my KTM Motorcycle?
    • J
      John TranSep 12, 2025
      Water in the gear oil of your KTM Motorcycle can be caused by a damaged radial shaft seal ring or water pump. Check the radial shaft seal ring and the water pump for any damage.
  • S
    Sheila EvansNov 14, 2025
    What to do if my KTM Motorcycle engine turns but does not start?
    • A
      Alexis DudleyNov 14, 2025
      If your KTM Motorcycle engine turns over but doesn't start, there could be several reasons. It could be due to an operating error, so ensure you are following the correct start procedure. If the motorcycle has been stored for a long time, old fuel in the float chamber could be the issue; in this case, empty the carburetor float chamber. Check for any interruption in the fuel supply by inspecting the fuel tank breather and cleaning the fuel tap. Also, check and adjust the carburetor components. A sooty or wet spark plug can also prevent starting, so clean, dry, or replace the spark plug and connector as needed. Ensure the spark plug gap is correctly adjusted to 0.60 mm (0.0236 in). Inspect the ignition system for faults and adjust as necessary. Check the stop button for any issues. Lastly, ...

Summary

MEANS OF REPRESENTATION

Symbols used

Explains the meaning of various symbols used in the manual for clear communication.

Formats used

Details the typographical formats used in the document for consistent understanding.

SAFETY ADVICE

Degrees of risk and symbols

Defines different risk levels and associated symbols to highlight potential dangers.

Safe operation

Provides essential guidelines for operating the vehicle safely and avoiding hazards.

Owners Manual

Emphasizes the importance of reading the owner's manual for operation and maintenance.

CONTROLS

Clutch lever

Description and location of the clutch lever on the handlebar.

Throttle grip

Details the throttle grip and its location on the handlebar.

Shift lever

Information on the location and function of the shift lever.

PREPARING FOR USE

Advice on preparing for first use

Key advice and safety considerations before the initial use of the vehicle.

Running in the engine

Instructions for the proper engine break-in procedure to ensure longevity.

RIDING INSTRUCTIONS

Checks and maintenance measures when preparing for use

Pre-ride checks and maintenance to ensure safe operation.

Braking

Guidance on proper braking techniques and considerations.

SERVICE SCHEDULE

Required work

Details the essential maintenance tasks required at specific intervals.

Recommended work

Lists recommended maintenance tasks for optimal performance and longevity.

TUNING THE CHASSIS

Checking the basic chassis setting with riders weight

Procedure for setting up the chassis based on rider's weight for optimal handling.

Adjusting the suspension damping

Guides on adjusting compression and rebound damping for suspension tuning.

SERVICE WORK ON THE CHASSIS

Cleaning the dust boots of the fork legs

Steps for cleaning fork dust boots to maintain seal integrity.

Adjusting the chain tension

Procedure for checking and adjusting the motorcycle's chain tension.

BRAKE SYSTEM

Checking the front brake fluid level

Procedure for checking the front brake fluid level for system integrity.

Changing the rear brake linings

Instructions for changing the rear brake linings to maintain braking performance.

WHEELS, TIRES

Checking the tire condition

Guidance on inspecting tires for wear and damage.

Checking spoke tension

Procedure for checking and adjusting spoke tension for wheel integrity.

TUNING THE ENGINE

Carburetor tuning

Details on adjusting carburetor components for optimal engine performance.

Adjusting the idle speed

Procedure for setting the engine's idle speed and mixture for smooth operation.

TECHNICAL DATA

Engine

Specifications related to the motorcycle's engine design and performance.

Carburetor

Technical data and settings for the motorcycle's carburetor.

Chassis tightening torques

Specifications for torque values on various chassis components.

KTM 85 SX 2023 Specifications

General IconGeneral
Displacement84.9 cm³
StarterKickstarter
Transmission6-speed
Front SuspensionWP XACT-USD, Ø 43 mm
Front BrakeDisc brake
Rear BrakeDisc brake
Weight (without fuel)68 kg
Engine TypeSingle cylinder, 2-stroke
ClutchWet multi-disc clutch
Rear SuspensionWP XACT
Front Tire70/100
Rear Tire90/100
Wheelbase1, 290 mm
Fuel Tank Capacity5.2 liters
FrameCentral-tube frame with double-cradle
