3 WORK
10

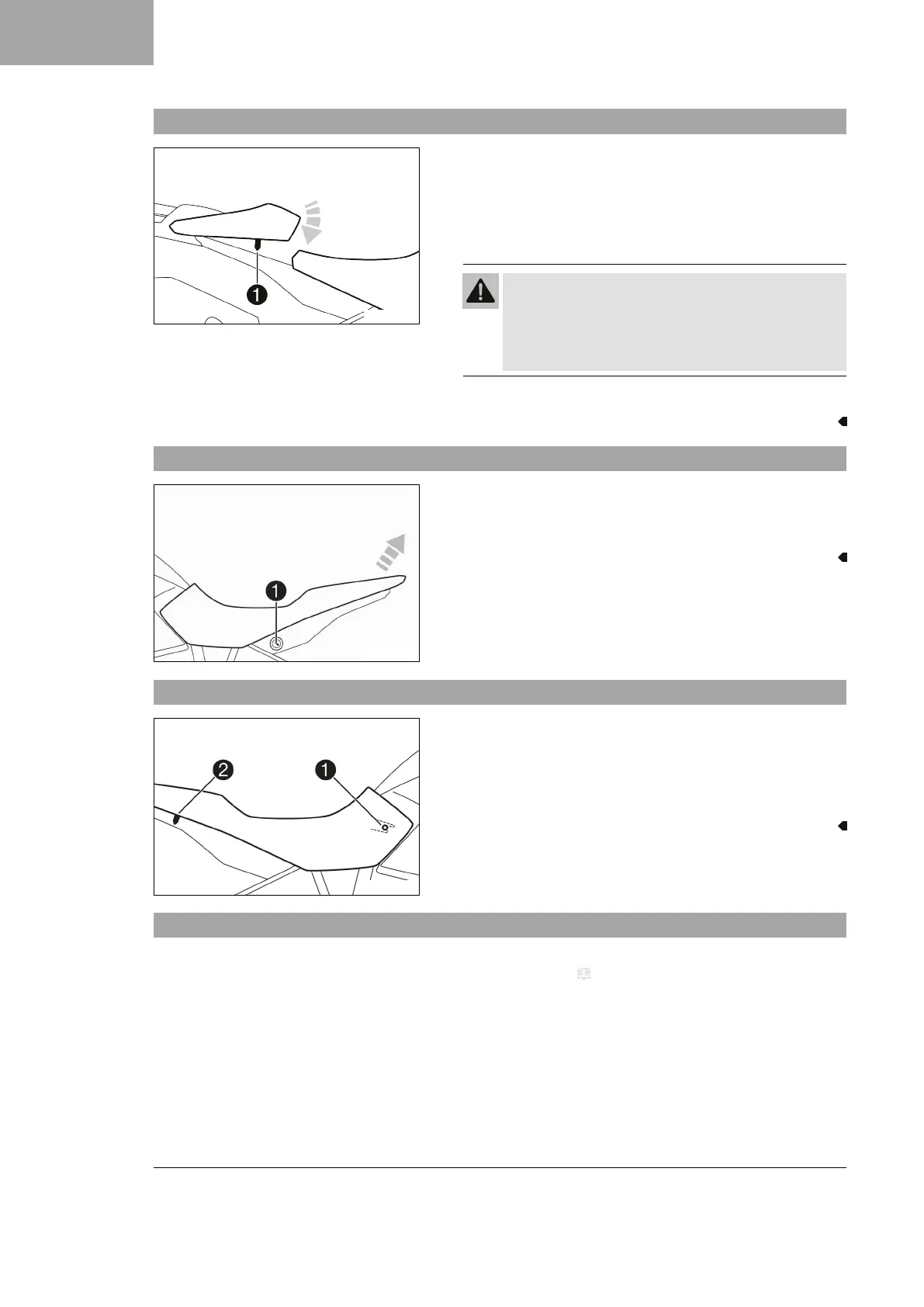

3.3 Mounting the passenger seat
401680-10
– Hook holding lugs of the passenger seat into the bushings on
the subframe, lower the front, and simultaneously push back-
ward.
–
Insert locking pin
1
into the lock housing and push down the
front of the passenger seat until the locking pin engages with
an audible click.
Warning
Danger of accidents The seat can come loose from the
anchoring if it is not mounted correctly.
– After assembly, check whether the seat is correctly
locked and cannot be pulled up.
– Finally, check that the passenger seat is correctly mounted.
3.4 Removing the seat
H02022-10
–
Insert the ignition key in seat lock
1
and turn it clockwise.
– Raise the rear of the seat, pull the seat back, and lift it off.
– Remove the ignition key.
3.5 Mounting the seat
I00450-10
–
Hook holding lug
1
of the seat onto the fuel tank, lower the
rear and push it forward.
–
Insert locking pin
2
into the lock housing and push down the
rear of the seat until the locking pin engages with a click.
– Check that the seat is correctly mounted.
3.6 Removing the left side cover
Preparatory work
– Remove the seat. ( p. 10)
