2 SETUP
4
Info
The procedure in the event of transport damage is
described in the Customer Service Manual.

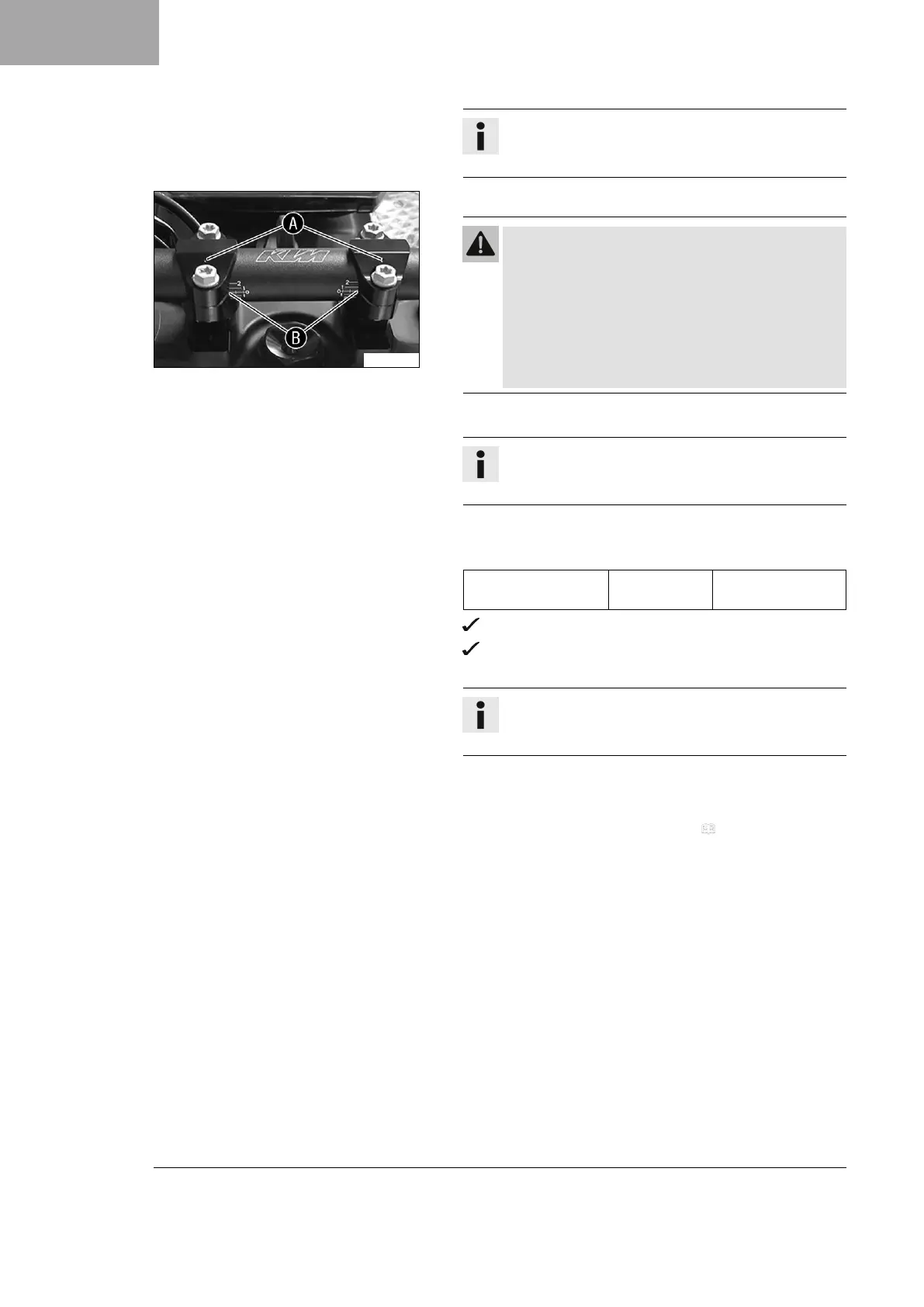

F02128-10
–
Remove cable ties and protective film on the handlebar.
Warning
Danger of accidents A repaired handlebar poses a
safety risk.
If the handlebar is bent or straightened, the mate-
rial becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged
or bent.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
– Position the handlebar clamps. Mount and tighten the screws
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Markings
A
face the rear.
Handlebar scale markings
B
are located centrally
between the handlebar clamps.
Info
Keep the installed gap dimensions equal when tighten-
ing.
–
Check the handlebar position.
» If the handlebar position is not adjusted as required by the
customer:
– Adjust the handlebar position. ( p. 9)
