5 ASSEMBLY
8
5.1 Assembly
Preliminary work
– Raise the motorcycle with a lift stand (see owner's manual).
– Remove the front wheel (see owner’s manual).
– Remove the fork legs (see owner's manual).
– Remove start number plate (see Owner's Manual).
– Remove the front fender (see Owner's Manual).
– Take off the handlebar cushion.
– Remove the lower triple clamp (see Owner's Manual).

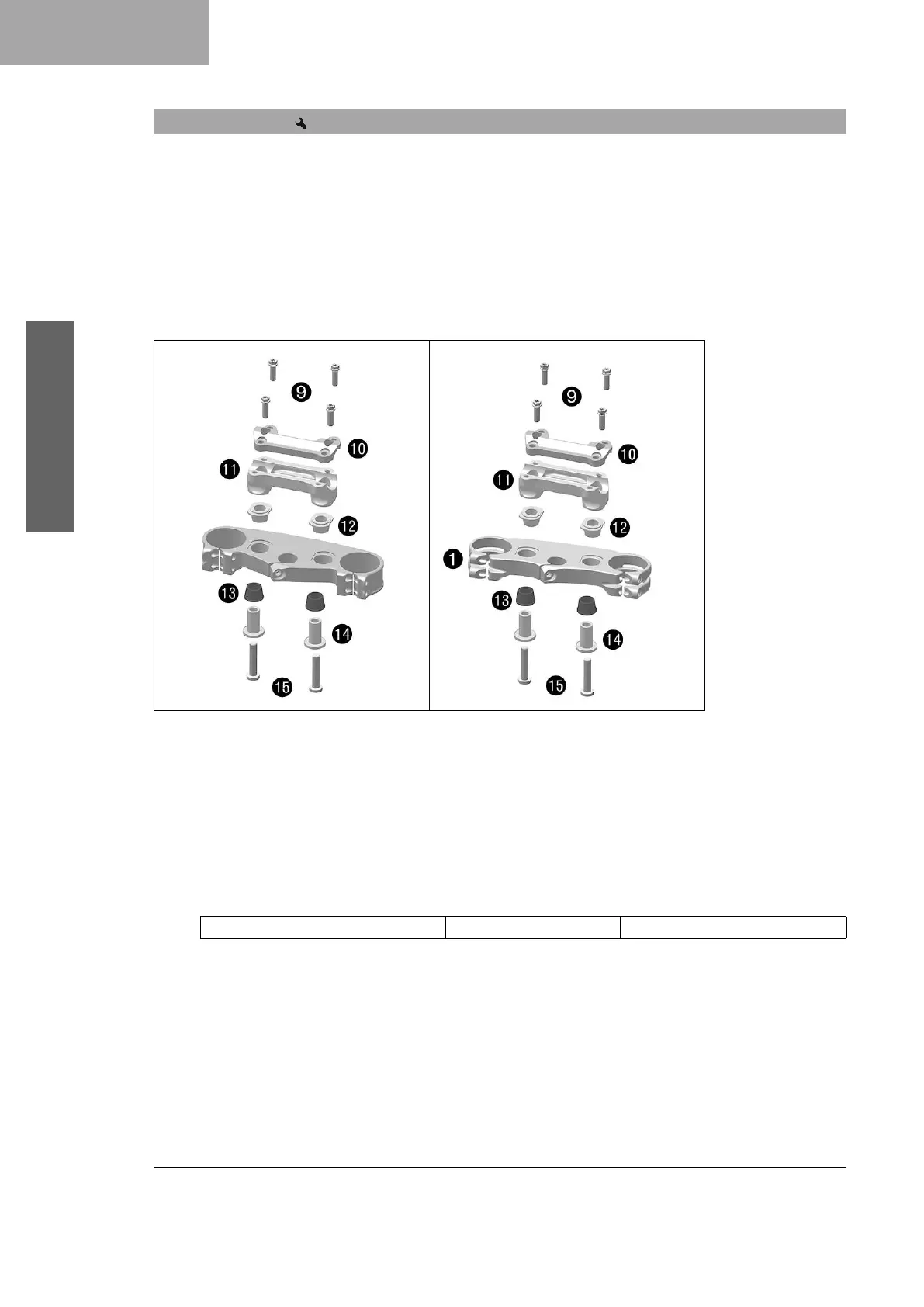

Preassembly of upper triple clamp
504073-01
–
Remove screws
bp
and bottom handlebar supports
bo
from the original triple clamp and take off top
handlebar support
bl
.
–
Remove rubber bushing
bm
and
bn
from the original triple clamp.
–
Mount rubber bushing
bm
and
bn
on the upper triple clamp
1
(included).
–
Mount and tighten screws
bp
together with bottom handlebar supports
bo
and top handlebar
supports
bl
.
– Position the handlebar.
–
Mount and tighten screws
9
with top handlebar support
bk
.
Guideline
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft)
