Changing the fork offset
504076-01
–

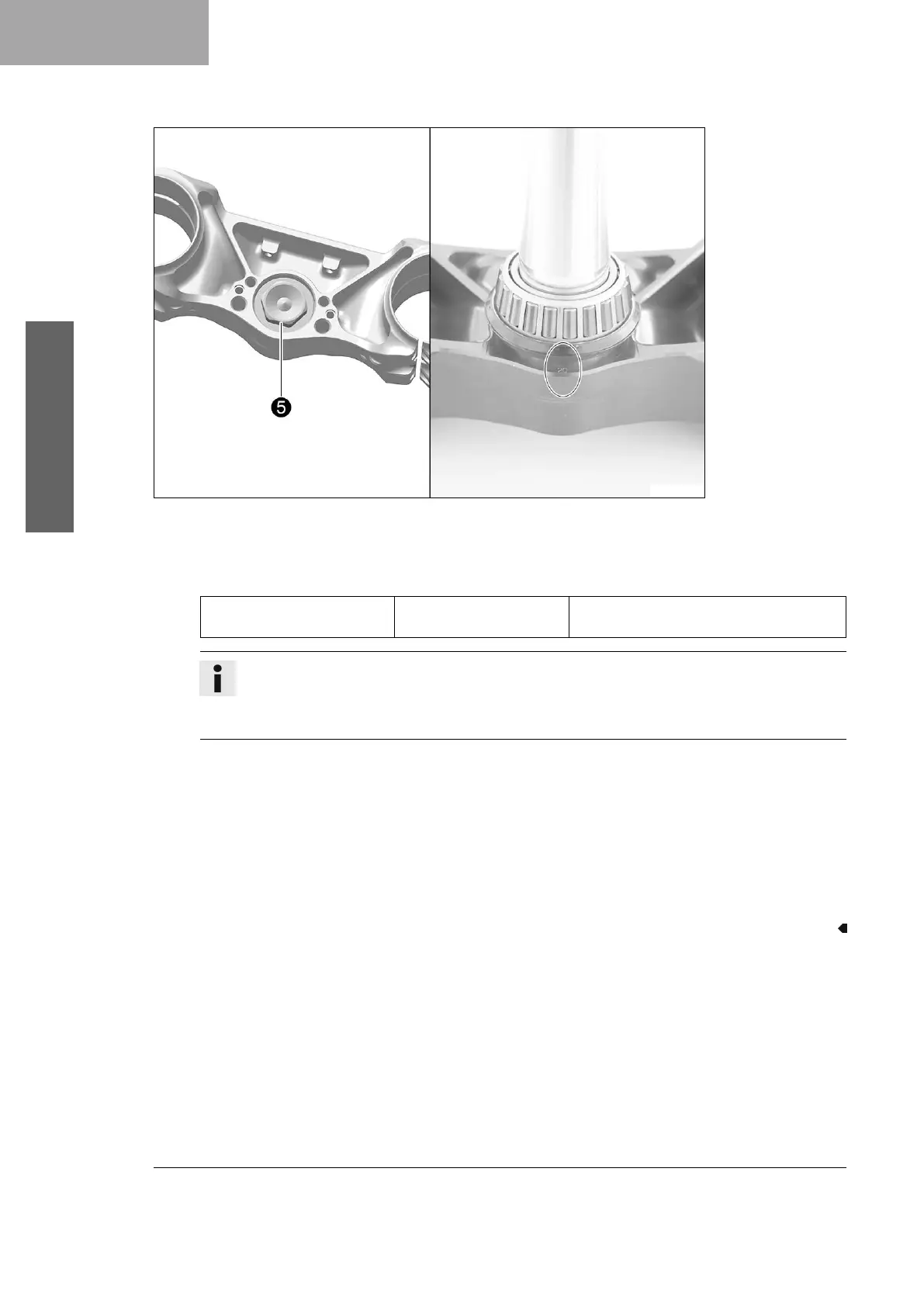

Loosen screw
5
.
–
Depending on the desired offset
A
or
B
turn the stem tube of the triple clamp by 180°.
–
Tighten screw
5
.
Guideline
Screw, steering head M20 60 Nm (44.3 lbf ft)
Loctite
®
243™
Info
As required, the chassis can then be adjusted to a stiffer setting.
Adjust fork airpump (see Owner's Manual) – incrementally by 0.1 bar more.
Adjust the compression damping of the fork (see Owner's Manual) – 3 to 5 clicks.
Final steps
– Install the front fender (see owner's Manual).
– Mount the handlebar cushion.
– Install the start number plate (see Owner's Manual).
– Install the front wheel (see owner's manual).
– Check the wiring harness, cables, and brake and clutch lines for freedom of movement and correct routing.
– Check steering head bearing play (see Owner's Manual).
– Remove the motorcycle from the lift stand (see owner's manual).
