KTM F8201V5 Setup Instructions

2 SETUP
10

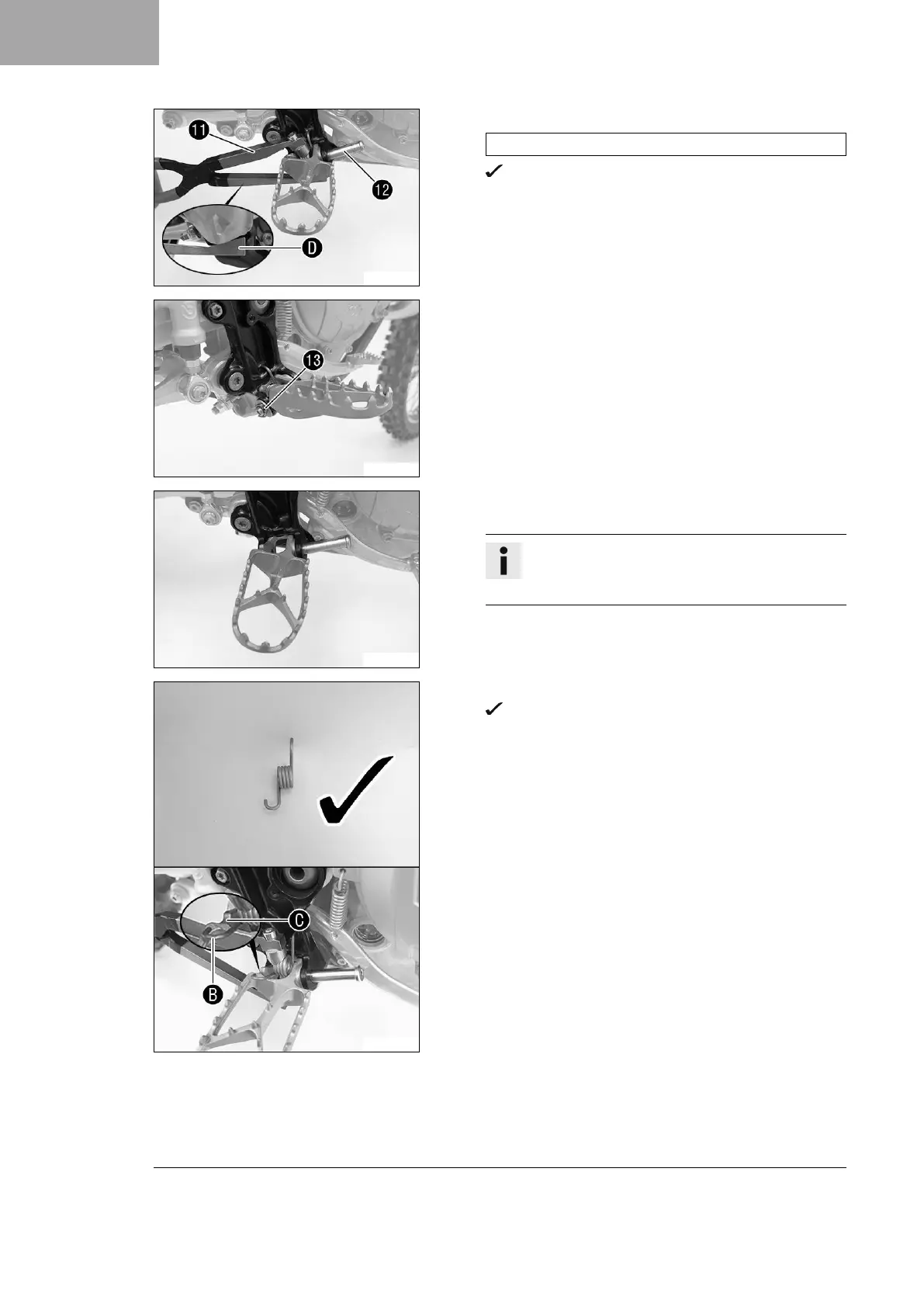

F01630-10
–
Press the spring with special tool
bl
.
Footrest spring plier (79029083000)
The special tool is applied to area
D
on the footrest.
–
Mount pin
bm
.
F01631-10
–
Mount the washer and splint
bn
.
– Repeat these steps on the opposite side.
D00674-10
Right footrest (All XC‑F models)
– Position the right footrest and pin.
Info
Only insert the pin to the extent that the spring can
still be mounted.
K00621-12
– Position spring as shown.
Spring
B
engages in area
C
.
