3 WORK
12
Guideline
Position both fork legs equally.
Finishing work
– Install the front wheel. ( p. 8)

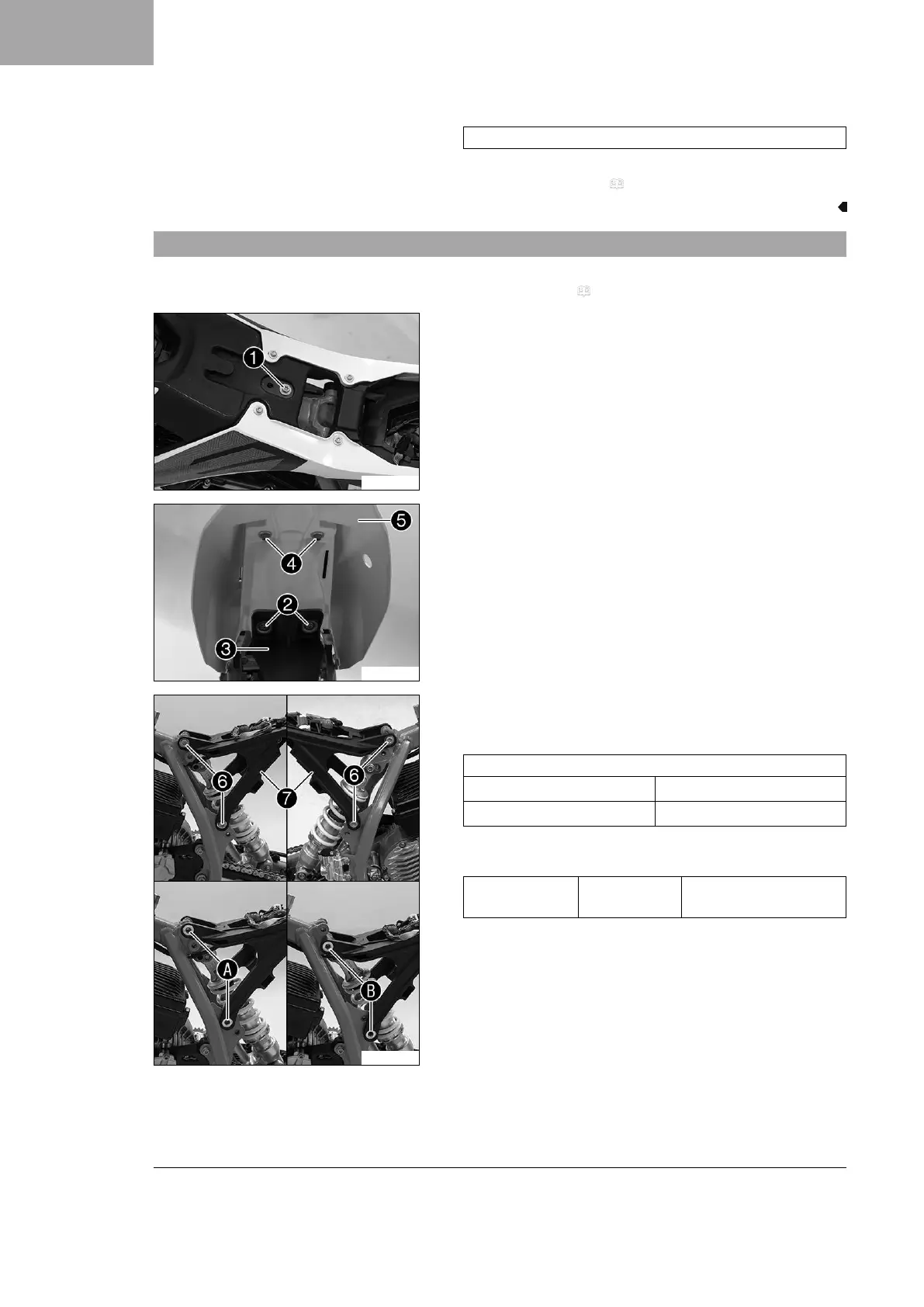

3.12 Adjusting the seat height on the frame
Preparatory work
– Remove the seat. ( p. 14)
M01675-10
Main work
–
Remove screw
1
and the front fairing.
M01676-10
–
Remove screws
2
with bushings and splash protector
3
.
–
Remove screws
4
with bushings and rear fairing
5
.
M01677-10
–
Remove screws
6
and position subframe
7
at the drill
holes at the desired seat height.
Guideline
Pay attention to the wiring harness.
High seat position
Drill holes
A
Low seat position
Drill holes
B
–
Mount and tighten screws
6
.
Guideline
Screw, sub-
frame
M8 30 Nm (22.1 lbf ft)
Loctite
®
243™
