WORK 3
13
M01676-10
–

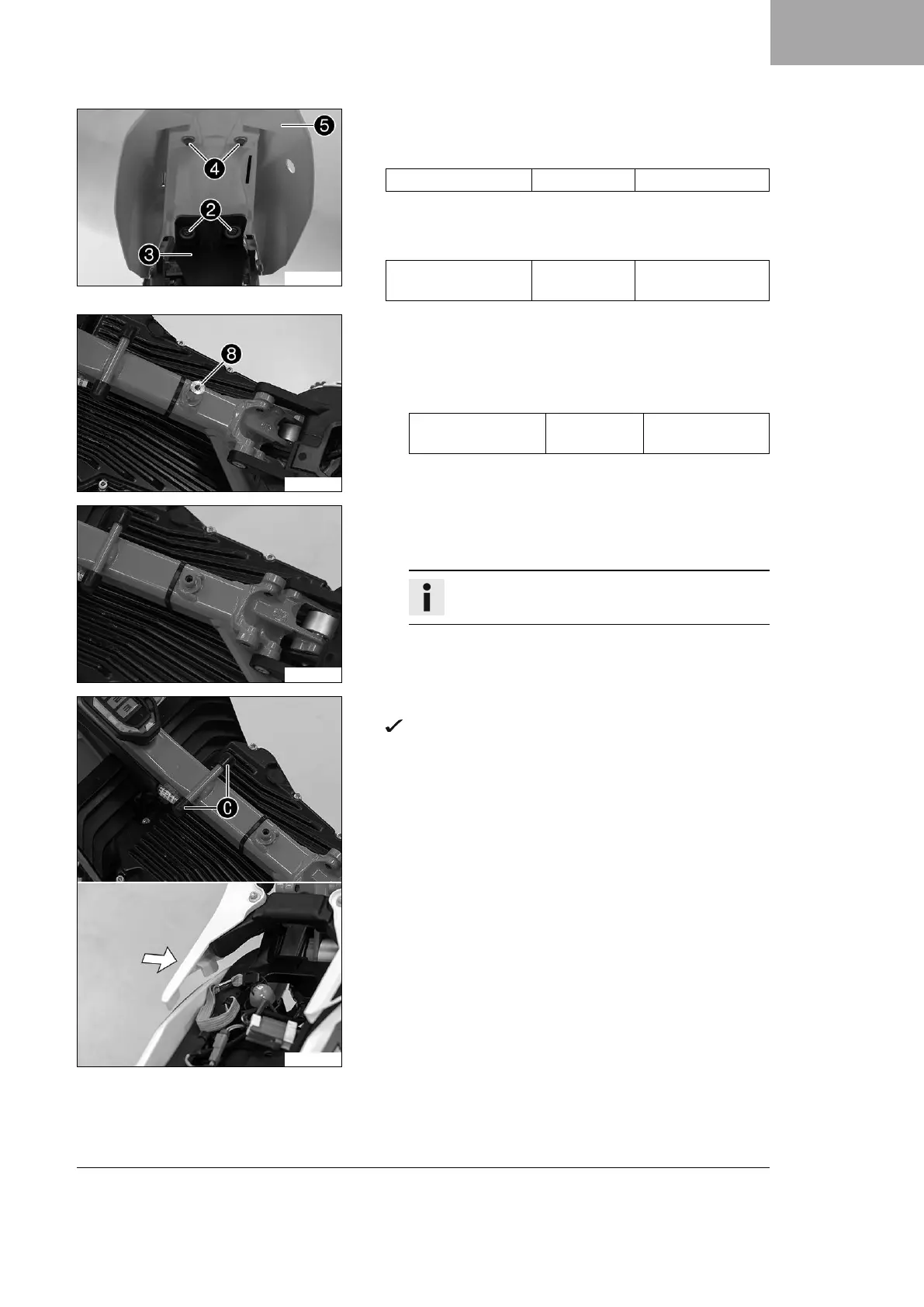

Position rear fairing
5
, mount screws
4
with bushings, and
tighten.
Guideline
Rear fairing screw M6 8 Nm (5.9 lbf ft)
–
Position splash protector
3
, mount screws
2
with bushings,
and tighten.
Guideline
Screw, splash protec-
tor
M6 8 Nm (5.9 lbf ft)
M01678-10
Condition
High seat position
–
Make sure that thread adapter
8
is mounted and tight-
ened.
Guideline
Threaded adapter
for front fairing
M6 8 Nm (5.9 lbf ft)
M01679-01
Condition
Low seat position
– Make sure that the thread adapter is removed.
Info
Retain the thread adapter for later assembly.
M01680-10
–
Position the front fairing on holders
C
.
The holding lugs of the front fairing engage in the
recesses of the rear fairing on both sides.
