Kuat Transfer2 - Page 15

15

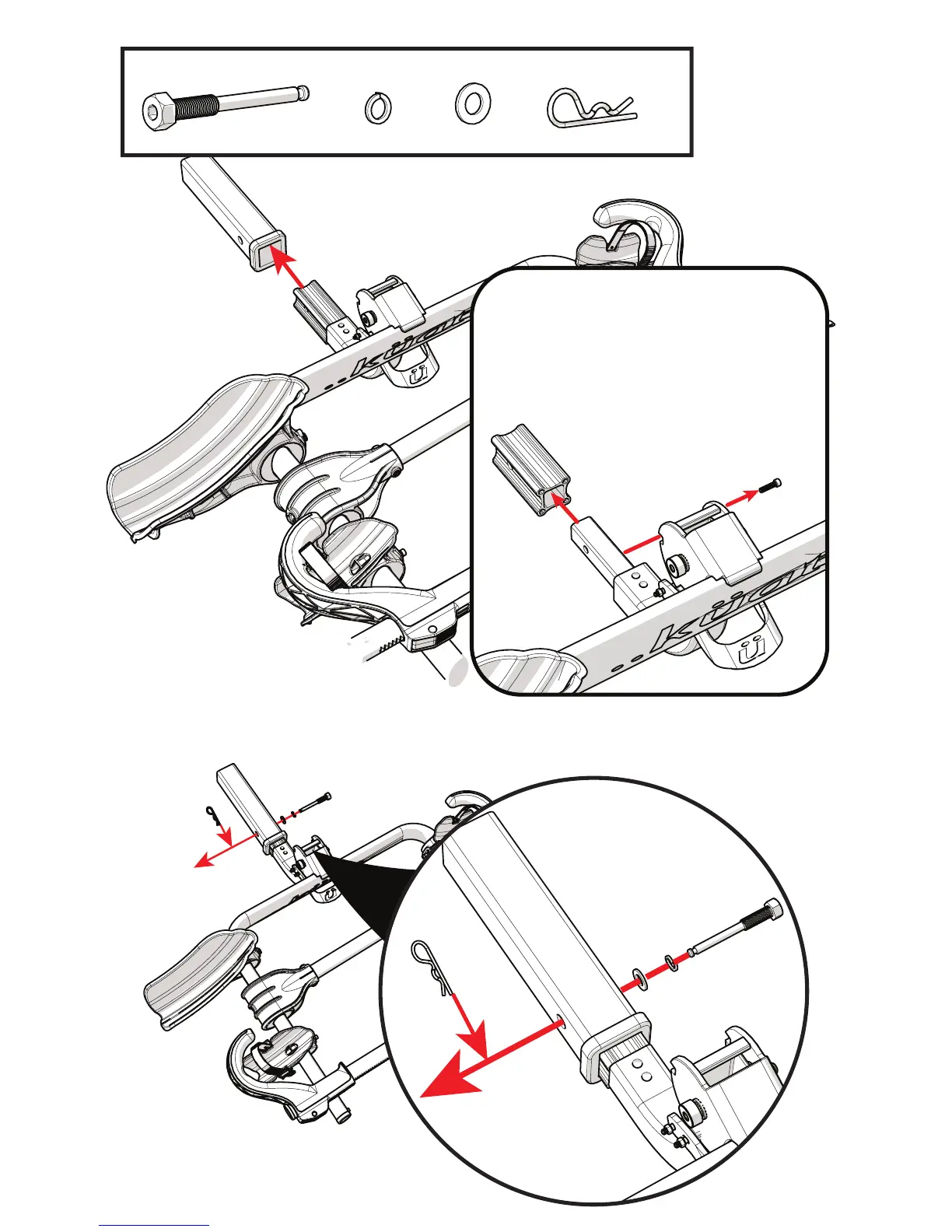

Thread the hitch bolt with washers into the hitch, secure bolt
with cotter pin. Tigthen with 8mm allen or 9mm box wrench.
Insert rack into hitch.
x1
x1
x1
x1
For 1-1/4” hitches remove 2”
hitch adapter by removing
6mm socket bolt.
Lock Washer
Hitch Bolt
Washer
Cotter Pin
