5
x1
x2

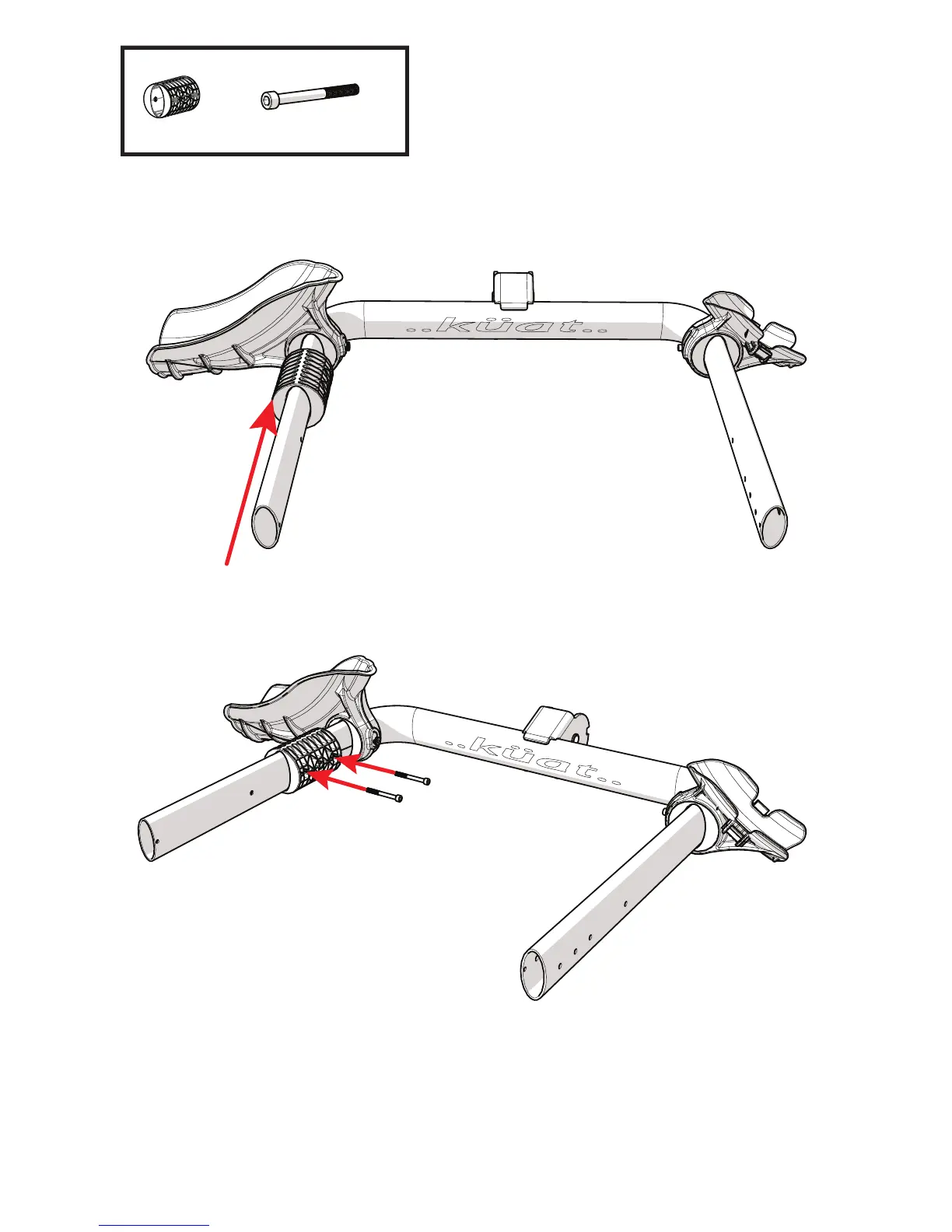

Slide arm puck into position with
the pre-installed nuts facing out.
Install screws.
Arm Puck M6 x 60
