ELECTRICAL SYSTEM

B1830,B2230,B2530,B3030, WSM

9-M27

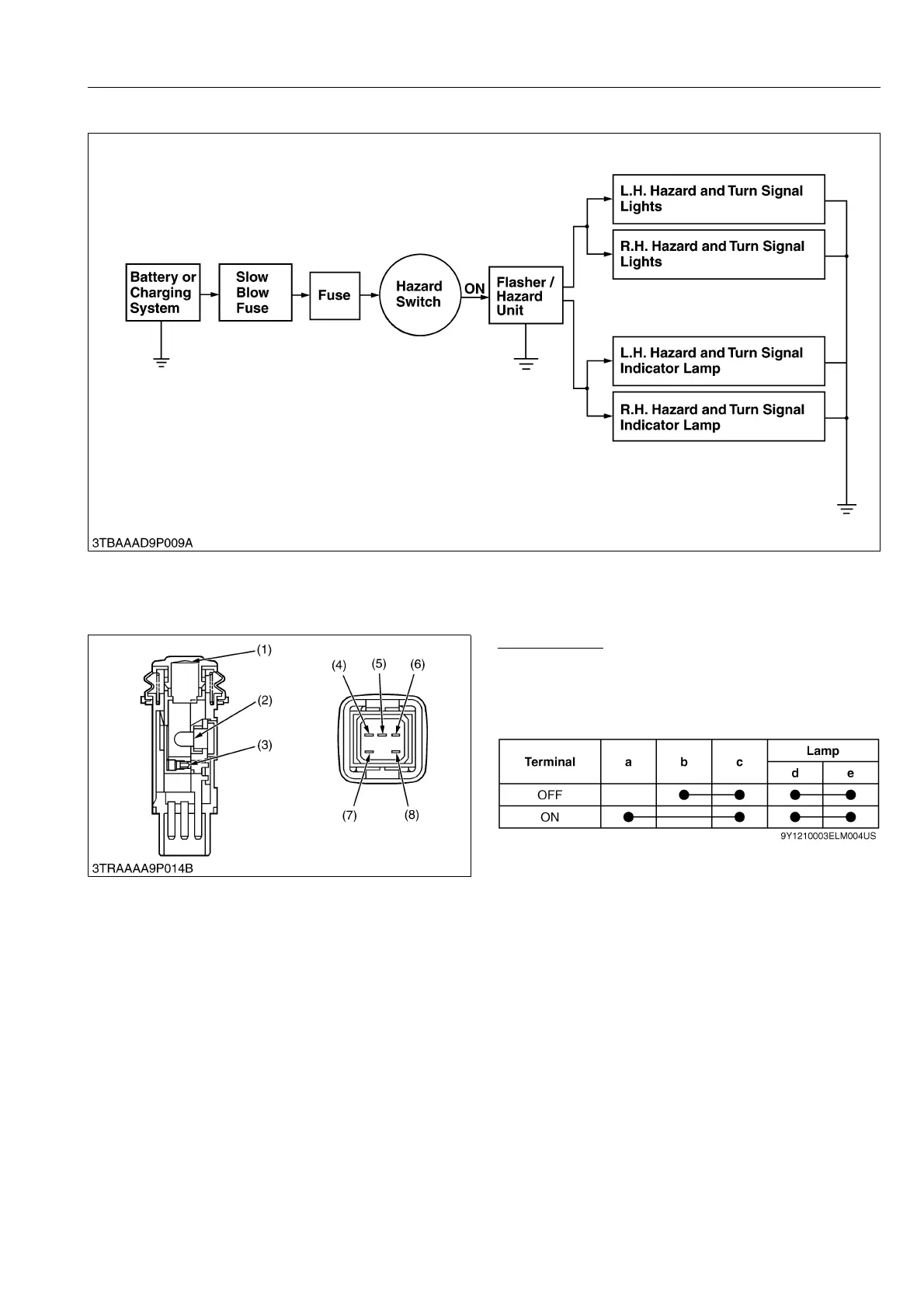

[3] HAZARD LIGHT

The hazard switch has two position; ON and OFF.

When the hazard switch is turned to ON, the hazard lights and indicator lamps are blinked as shown in the figure

above.

9Y1210003ELM0023US0

Hazard Switch

This is a pushing type switch to turn on the hazard

lights. The lamp (2) in the switch is lighted up by the

current from outside of the switch. The circuit in the

switch is shown below.

9Y1210003ELM0024US0

(1) Lens

(2) Lamp

(3) Contact Portion

(4) Terminal a

(5) Terminal b

(6) Terminal d

(7) Terminal c

(8) Terminal e
