Kubota G21 - BRAKE; Adjusting Brake Play

142
ENGLISH
1. Engage the PTO lever.
2. Measure tension spring length L.
3. If L is shorter than 87 mm adjust it with the
tension clutch cable adjusting nut.
¡ L should be 88 to 90 mm.
4. After adjustment tighten the nut securely.
¡ When replacing the new front PTO belts, L
should be 91 to 92 mm.
IMPORTANT:
¡ When replacing the front PTO belts, be sure to
replace the complete set. These belts are a
matched set.

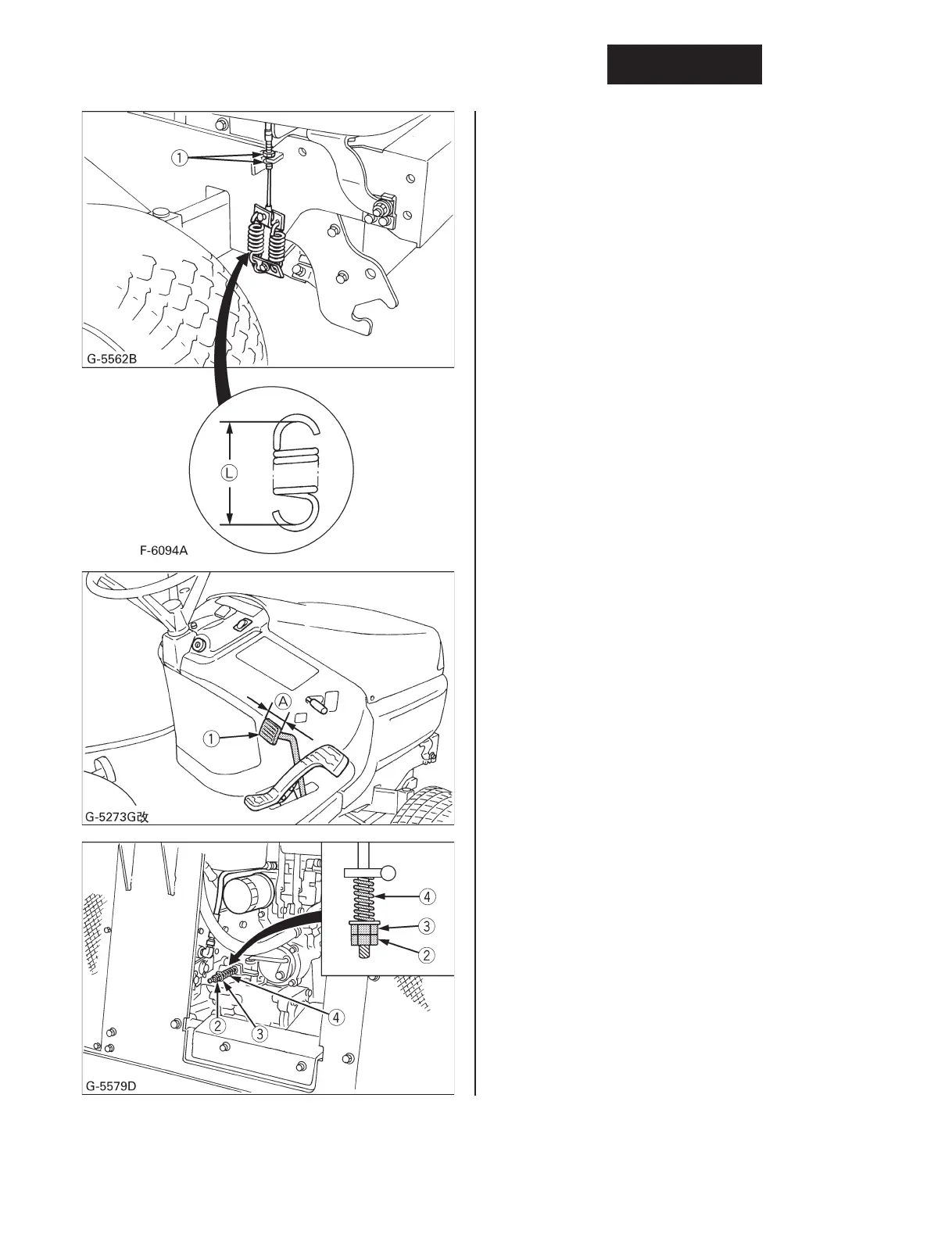

(1) Adjust nut
BRAKE
쏋 Adjusting Brake Play
3
CAUTION
To avoid personal injury:
¡¡
¡¡
¡ When making adjustments, park the
machine on a flat area, block wheels,
stop engine and remove the key.
Correct play ranges from 15 to 25 mm. If it is not
correct, loosen the lock nut w and turn the nut e in
the desired direction until the proper play is achieved.
After adjustment, retighten lock nut securely.
(1) Brake pedal (A) Play 15 to 25 mm
(2) Lock nut
(3) Nut
(4) Spring
