9-S10
G2160, WSM
MOWER

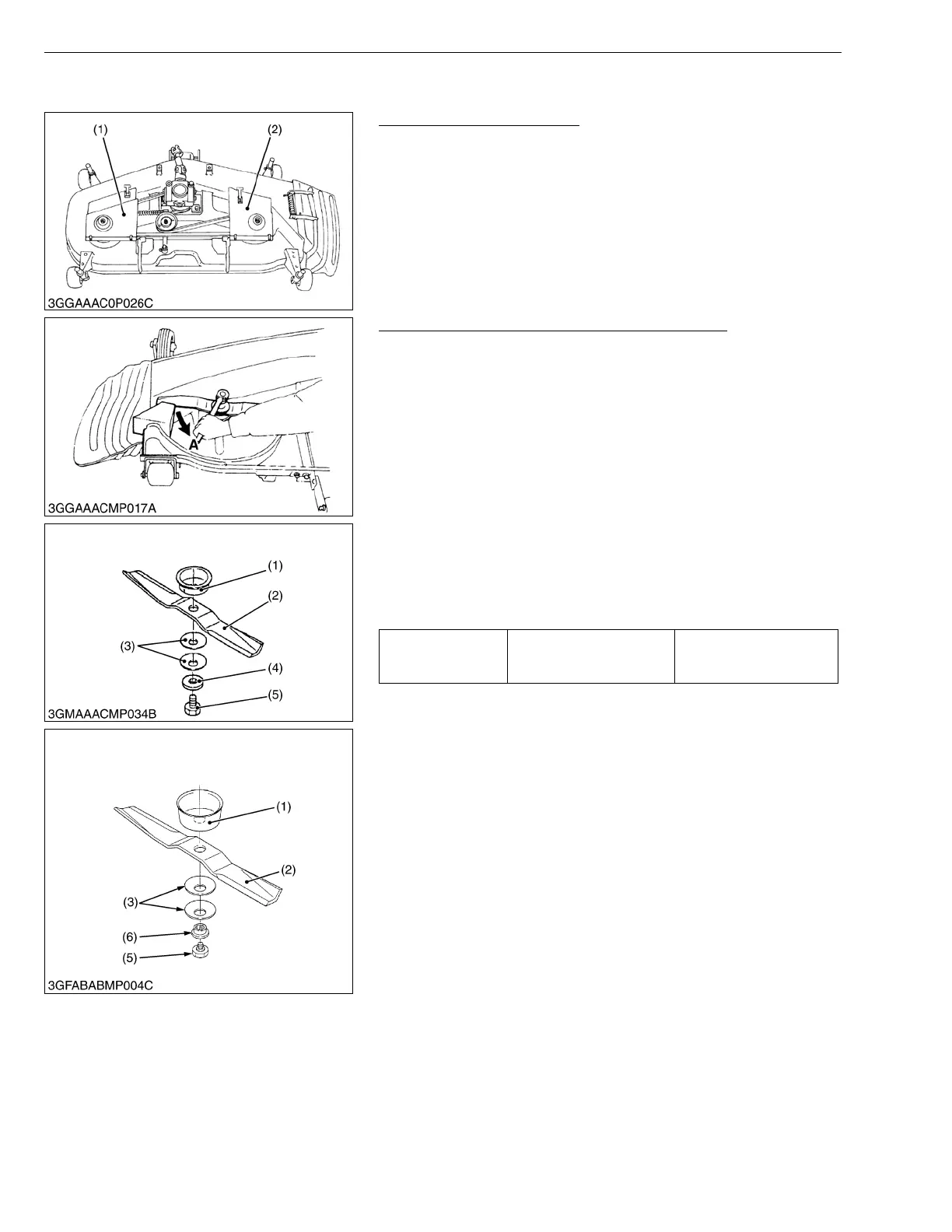

[3] DISASSEMBLING AND ASSEMBLING
Universal Joint and Covers
1. Remove the universal joint.
2. Remove the left and right hand covers (1), (2).
(When reassembling)
• Apply grease to the splines and grease nipples of the universal
joint.
W1013857
Mower Blades (Center Blade and Outer Blades)
1. Turn over the mower.
2. Unscrew the mower blade screw (5), and remove the spline boss
(4), two cup washers (3), mower blade (2) and dust cover (1).
• To remove the blade securely, wedge a block of wood
between one blade and the mower deck in such position that
it will hold the blade safely while loosing or tightening the
blade screw.
(When reassembling)
• Be sure to assemble the two cup washers between the mower
blade and lock washer or spline boss.
• Make sure the cup washer is not flattened out or worn,
causing blade to slip easily.
Replace two cup washers if either is damaged.
W1013987
(1) L.H. Cover (2) R.H. Cover
Tightening torque Mower blade screw
98.1 to 117.7 N·m
10.0 to 12.0 kgf·m
72.3 to 86.8 ft-lbs
(1) Dust Cover
(2) Mower Blade
(3) Cup Washer
(4) Lock Washer
(5) Mower Blade Screw
(6) Spline Boss
(A) Loosen
