Kubota G2160 - Disassembling and Assembling; Alternator

8-S21
G2160, WSM
ELECTRICAL SYSTEM

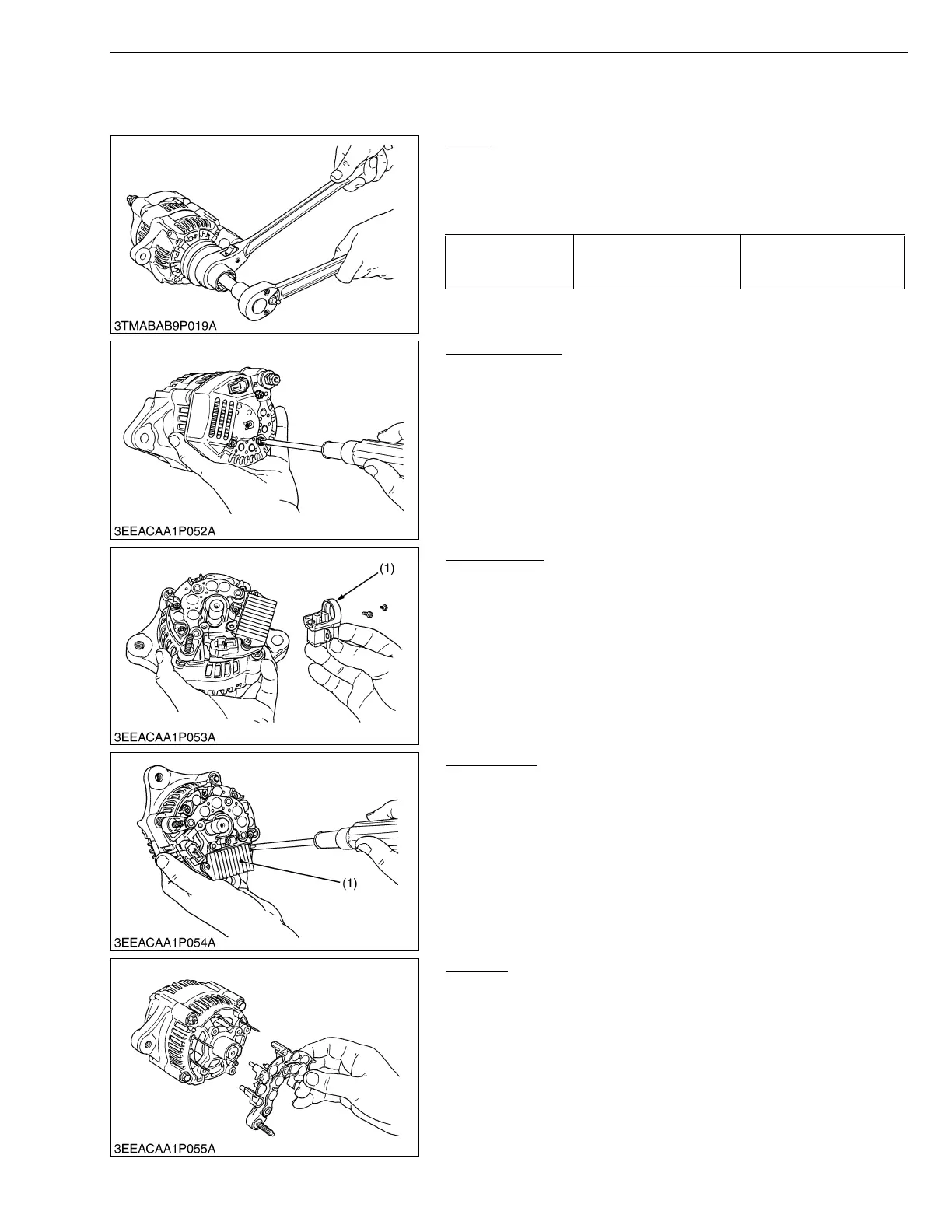

DISASSEMBLING AND ASSEMBLING
(1) Alternator
Pulley
1. Secure the hexagonal end of the pulley shaft with a double-
ended ratchet wrench as shown in the figure, loosen the pulley
nut with a socket wrench and remove it.
(When reassembling)
W1017643
Rear End Cover
1. Unscrew the three rear end cover screws and the B terminal nut,
and remove the rear end cover.
W1017960
Brush Holder
1. Unscrew the two screws holding the brush holder (1), and
remove the brush holder (1).
W1018041
IC Regulator
1. Unscrew the three screws holding the IC regulator (1), and
remove the IC regulator (1).
W1018137
Rectifier
1. Remove the four screws holding the rectifier(1) and the stator
lead wires.
2. Remove the rectifier (1).
W1018229
Tightening torque Pulley nut
93.1 to 127.4 N·m
9.5 to 13.0 kgf·m
68.7 to 94.0 ft-lbs
(1) Brush Holder
(1) IC Regulator
(1) Rectifier
