4-S2
G2160, WSM
FRONT AXLE
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

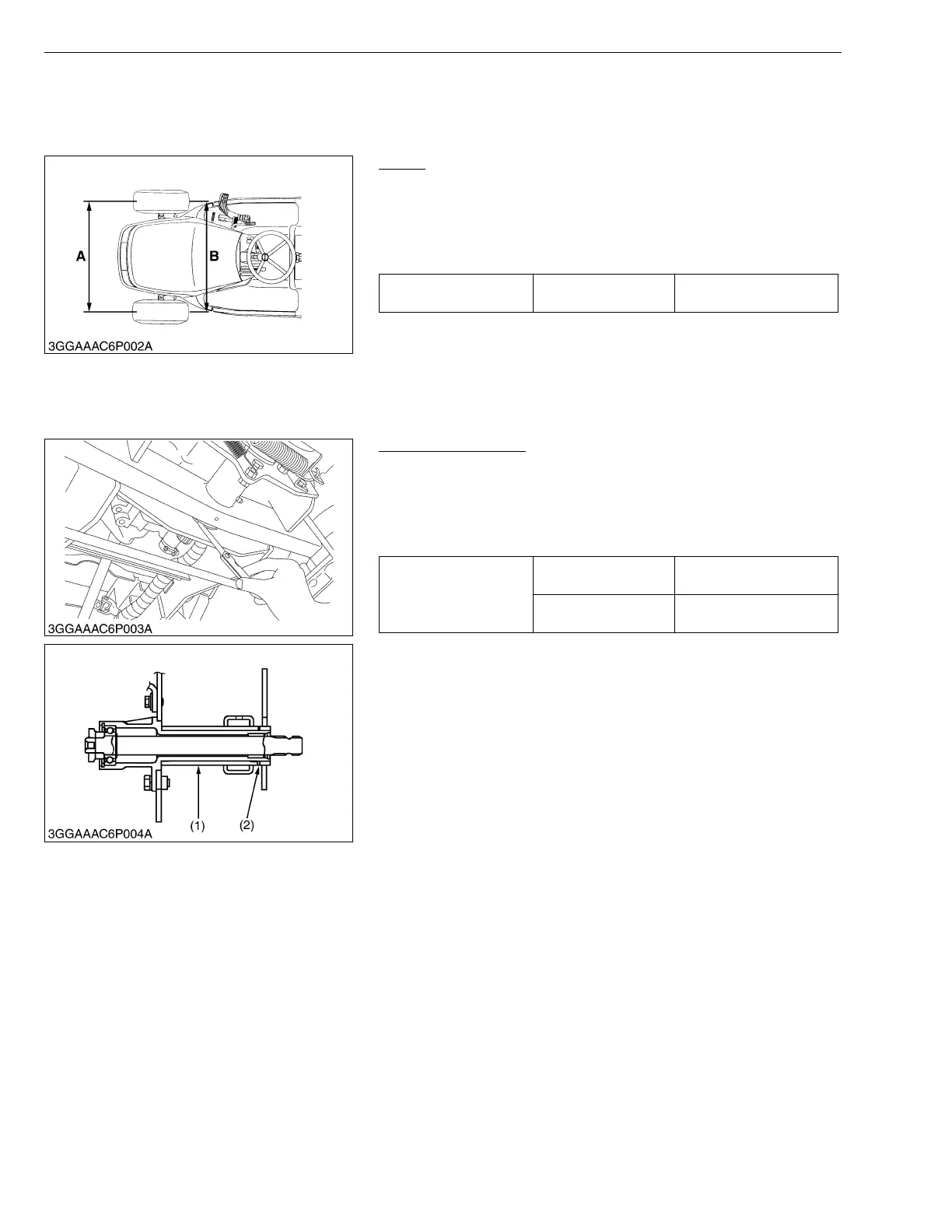

Toe-in
1. Inflate the front tires to the specified pressure.
2. Turn the front wheels straight ahead, and measure the toe-in (B-
A).
3. If the measurement is not within the factory specifications,
change the tie-rod length to adjust.
• After adjusting the toe-in, secure the tie-rod with the lock
nut.
W1011030
Front Axle End Play
1. Jack up the front of frame.
2. Measure the clearance between the front axle (1) and adjusting
shims (2).
3. If the measurement exceeds the allowable limit, replace the
adjusting shims (2).
(Reference)
• Thickness of adjusting shims:
1.5 mm (0.059 in.) (Part No. K1310-1512-0)
1.9 mm (0.075 in.) (Part No. K1310-1513-0)
2.3 mm (0.091 in.) (Part No. K1310-1514-0)
3.0 mm (0.118 in.) (Part No. K1310-1515-0)
W1011222
Toe-in (B-A) Factory spec.
0 to 10 mm
0 to 0.394 in.
(A) Wheel to Wheel Distance at Front
(B) Wheel to Wheel Distance at Rear
Front axle end play
Factory spec.
0.1 to 0.4 mm
0.004 to 0.016 in.
Allowable limit
1.0 mm
0.039 in.
(1) Front Axle (2) Adjusting Shims
