5-S23
G2160, WSM
STEERING

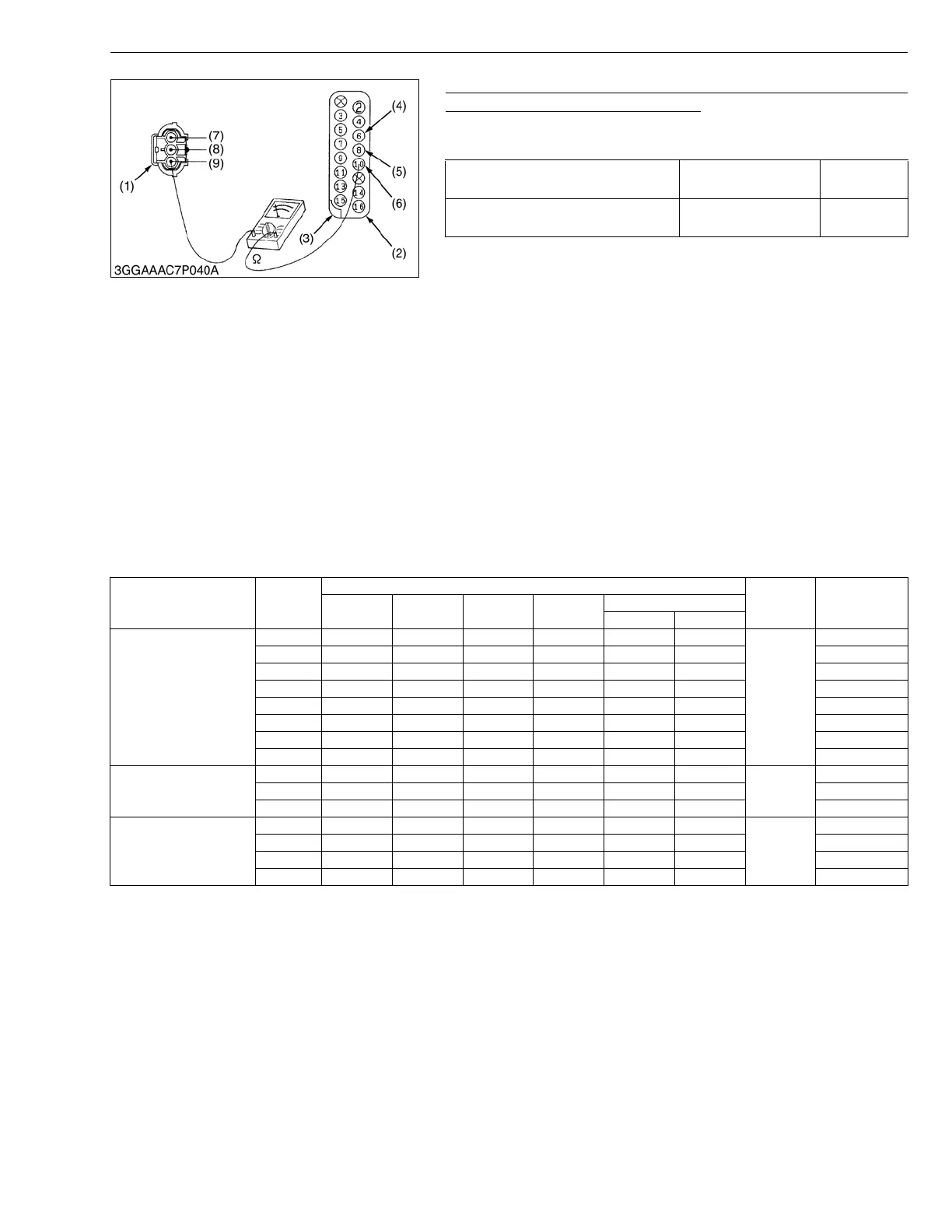

Checking Continuity between the Torque Sensor 3P Connector
and EPS Controller 16P Connector
1. Using a circuit tester, check continuity between the terminals.
Refer to the figure below.
2. If the resistance is out of factory specification, repair or replace
the wire harness with new one. If the resistance is okay, replace
the power steering assembly with new one.
IMPORTANT■
• In checking continuity, also swing the cable behind the
connector.
Be very careful to keep the circuit tester probes tight at the
terminals.
W1017512
(7) Error Codes and Defective Sections
Read the error code on the warning lamp display and take measures as shown in the table below.
For the procedures for taking measures, refer to page 5-S6.
W1018006
NOTE■
• Resetting method (Reset after performing checking based on the error code.)
#1: Turn off the main switch and then turn it on.
#2: Perform fail-safe history erasing.
Resistance
(between same color terminal)
Factory spec. 0 Ω
Resistance
(between different color terminal)
Factory spec.
∞ Ω
(1) Torque Sensor 3P Connector
(2) EPS Controller 16P Connector (view
from the wire connected side)
(3) Notch
(4) Black/White Terminal
(5) Red Terminal
(6) White Terminal
(7) Red Terminal
(8) Black Terminal
(9) White Terminal
System name
Error
code
Estimated defective section
Reset
Reference
section
Power
source
Fuse 30A Sensor Motor
EPS Controller
4P 16P
Power system 02 ✩✩ ✩✩ #1 5-S6
03 ✩✩ 5-S7
05 ✩✩ 5-S7
06 ✩✩ 5-S8
15 ✩✩ ✩ 5-S9
17 ✩✩ 5-S10
19 ✩✩ 5-S10
22 ✩✩ 5-S10
Torque sensor system 11 ✩✩#2 5-S8
12 ✩✩5-S9
13 ✩✩5-S9
EPS controller inside 23 ✩✩ ✩ #1 5-S11
32 ✩✩ 5-S12
34 ✩✩ 5-S12
35 ✩ 5-S13
