Kubota GL9000-STD - Control Panel Layouts; GL11000-USA and GL7000-USA Control Panels

5NOMENCLATURE
ENGLISH

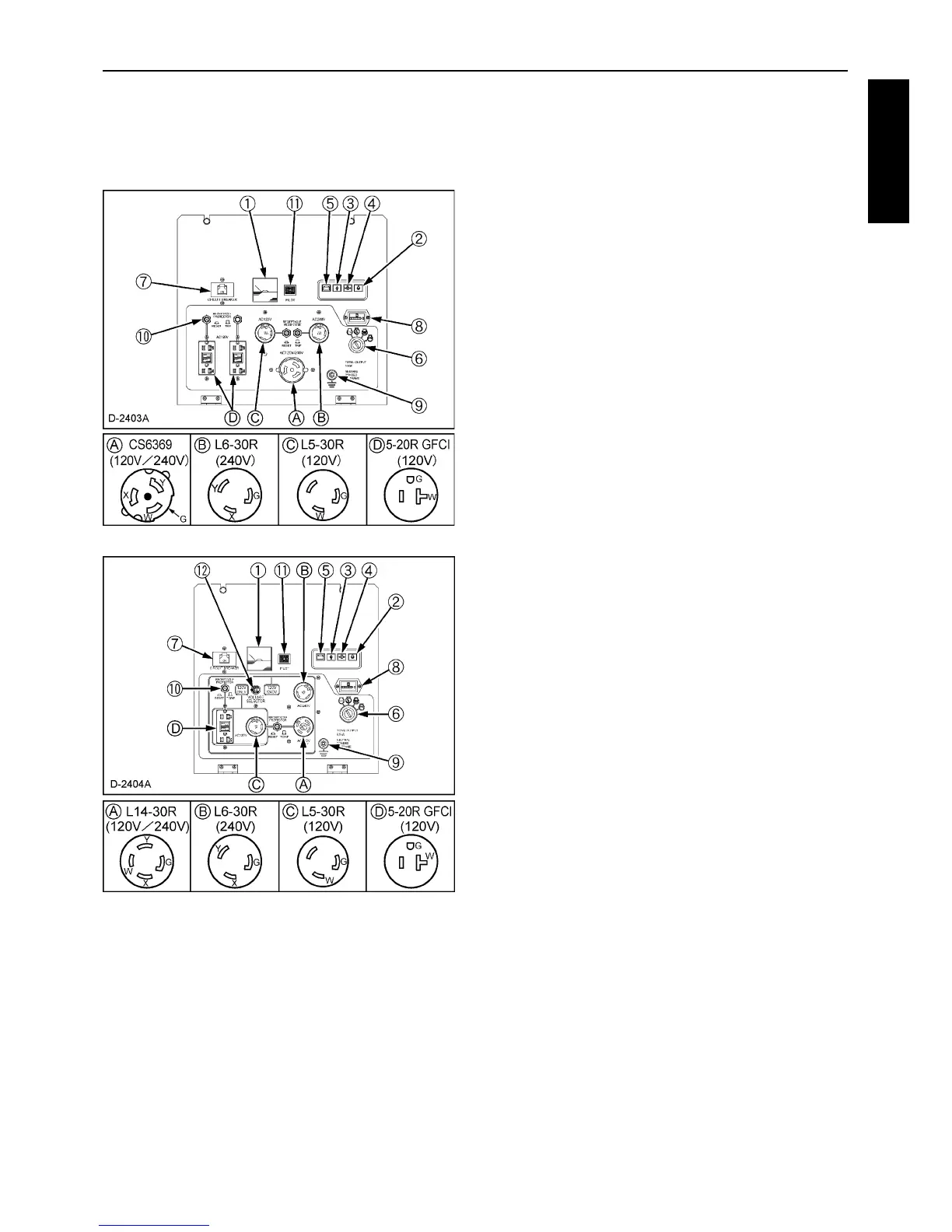

B Control Panel
Standard Model
C 1 Phase Type
(120/240V Dual voltage Type)
[GL11000-USA]
[GL7000-USA]
(1) A.C. Voltmeter
(2) Glow timer lamp
(3) Water temperature lamp
(4) Oil pressure lamp
(5) Battery charge lamp
(6) Starter switch (key)
(7) Circuit breaker
(8) Hour meter
(9) Ground terminal
(10) Protector (Receptacle)
(11) Pilot lamp
(12) Full power switch
(A) Receptacle
(B) Receptacle
(C) Receptacle
(D) Receptacle
