PERIODIC SERVICE74
A If the new fuse happens to blow out within a short time,
contact your dealer for inspection and repair. Never
"jump" the fuse with wire or foil, or install a larger
capacity fuse than is recommended.
a: Stamp or stick label "E/G STOP"
b: Stamp or stick label "IG/M"
c: Stamp or stick label "OPC"
C Protected circuit
BReplacing bulbs
(A) Replacement of the headlight bulb
1. Open hood.
2. Turn bulb socket to remove socket from headlight
housing.
3. Push bulb down and turn 1/4 turn to remove bulb from
the socket.
4. Install new bulb to the socket.
5. Install the socket in housing.
6. Close hood.
(B) Replacement of the Indicator light bulb
1. Open hood.
2. Turn bad bulb socket to the left.
And remove it.
3. Pull bulb from the socket.
4. Push new bulb into the socket.
5. Install the socket.
6. Close hood.
BChecking and Replacing Blade
To avoid serious injury:
A Be sure to stop the engine and remove the key.
A Blades may be sharp. When you handle blades,
wear heavy gloves or wrap end of blade with a
rag.
C Checking
The blade cutting edges should be kept sharp at all times.
Sharpen the cutting edges, if they resemble blade (B).
Replace the blades if they appear similar to blade (C).

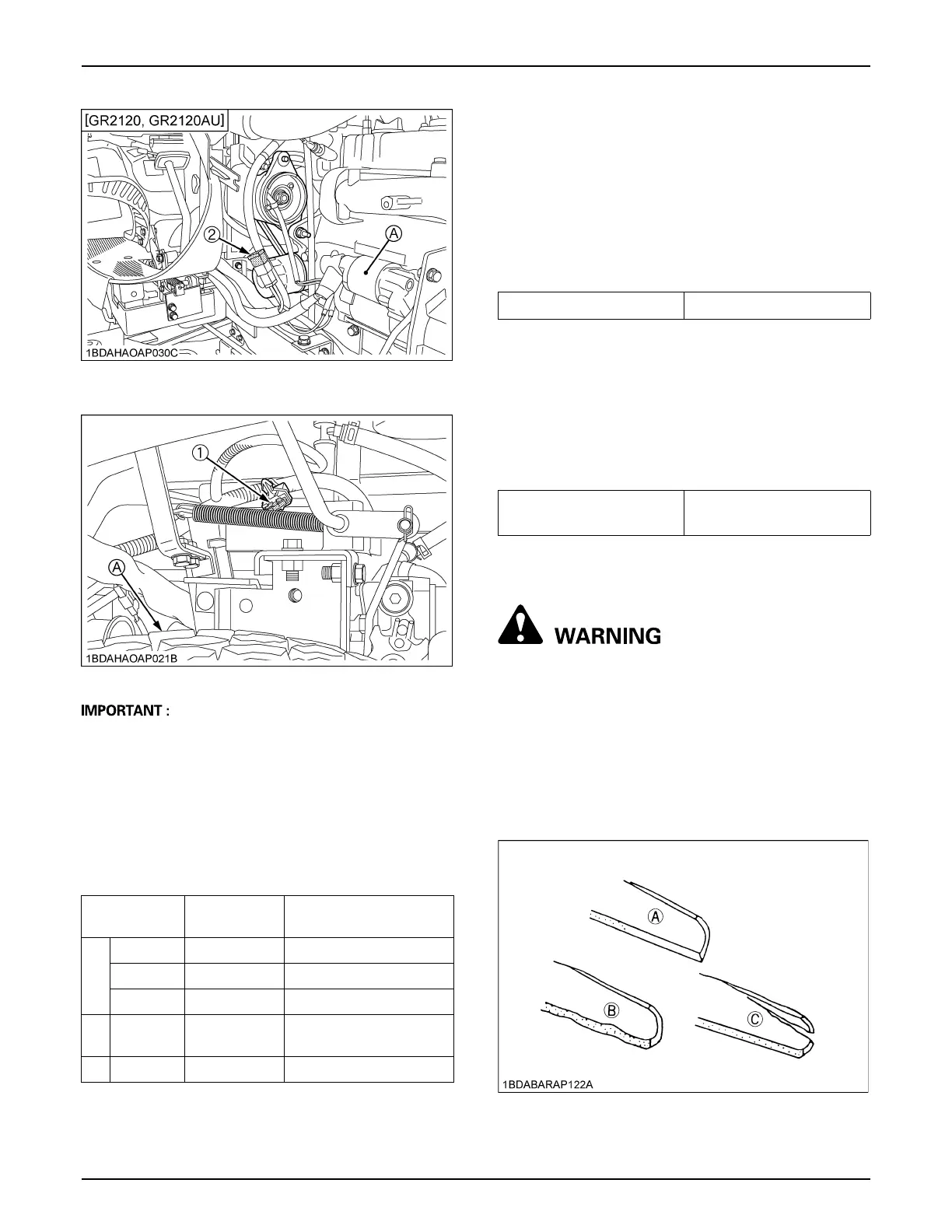

(2) Slow blow fuse (A) Starter
(1) KRA system (A) Left rear tire
FUSE NO.
(ID LABEL)
CAPACITY
(A)
Protected circuit
(1)
E/G STOP 15 Engine stop timer relay
IG/M 10 Fuel pump, Head light, etc.
OPC 3 Engine running circuit
(2) ---
Slow blow fuse
40
Check circuit against
wrong battery connection
(3) --- 3 KRA system
Headlight bulb 24W
Indicator light bulb
14.0 Rated Voltage/0.27
AMP/2 MSCP
(A) New blade
(B) Worn blade
(C) Cracked blade
