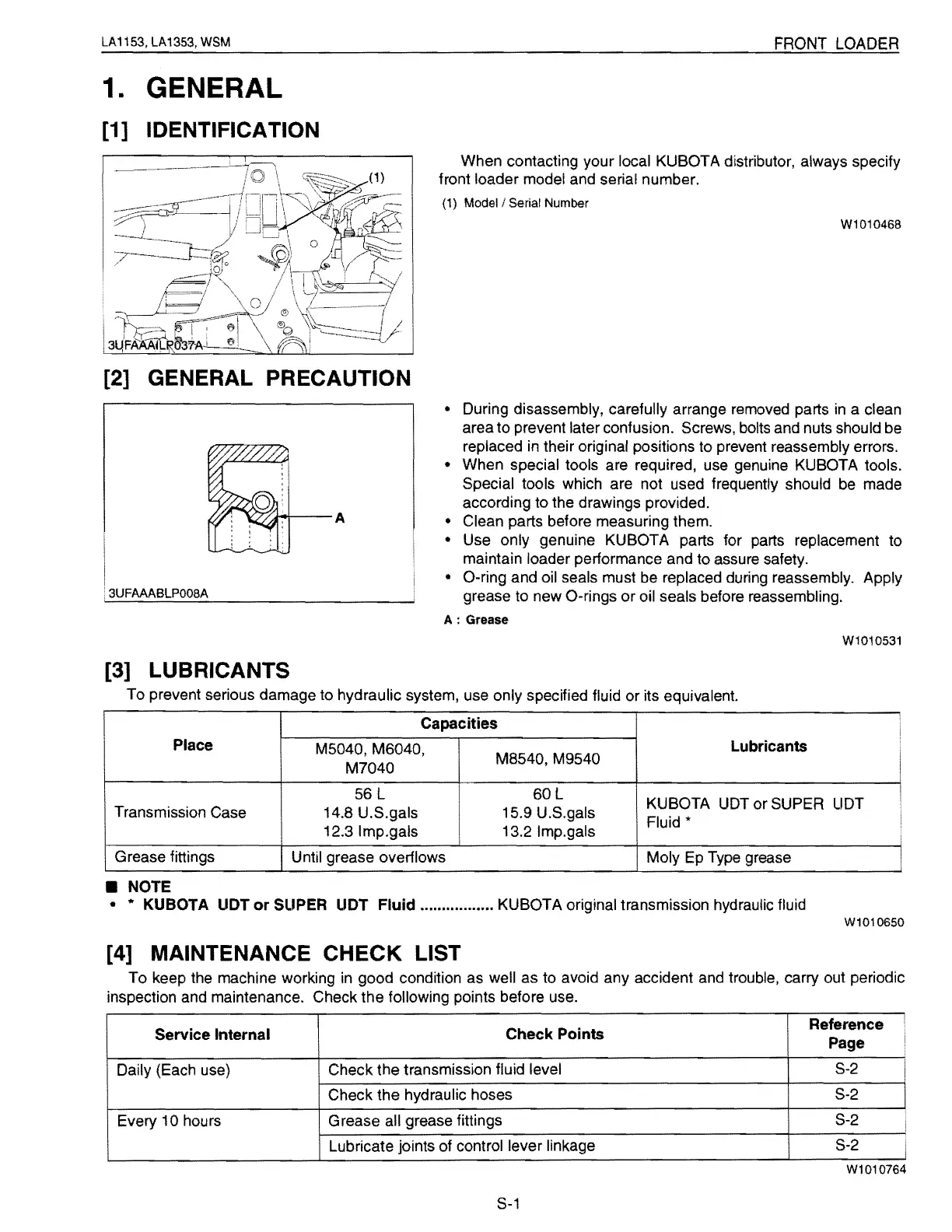

LA1153, LA1353, WSM
FRONT LOADER
1. GENERAL
[1
] IDENTIFICATION
When contacting your local KUBOTA distributor, always specify
front loader model and serial number.
(1)
Modell
Serial Number
W1010468
[2]
GENERAL PRECAUTION
•
•
•
•
During disassembly, carefully arrange removed parts
in
a clean
area to prevent later confusion. Screws, bolts and nuts should be
replaced
in
their original positions to prevent reassembly errors.
When special tools are required, use genuine KUBOTA tools.
Special tools which are not used frequently should be made
according to the drawings provided.
Clean parts before measuring them.
Use only genuine KUBOTA parts for parts replacement to
maintain loader performance and to assure safety.
• 3UFAAABLP008A
• O-ring and oil seals must be replaced during reassembly. Apply
grease to new O-rings
or
oil seals before reassembling.
A:
Grease
W1010531
[3]
LUBRICANTS
To prevent serious damage to hydraulic system, use only specified fluid or its equivalent.
Place
Capacities
i
Lubricants
M5040, M6040,
M7040
M8540, M9540
Transmission Case
56 L
14.8 U.S.gals
12.3Imp.gals
60L
15.9 U.S.gals
13.2 Imp.gals
KUBOTA UDT or SUPER UDT
Fluid
*
Grease fittings
Until grease overflows Moly Ep Type grease
•
NOTE
• * KUBOTA
l~DT
or Sl'PER UDT Fluid .................
KUBOTA
original
transmission
hydraulic
fluid
W1010650
[4]
MAINTENANCE CHECK LIST
To keep the machine working
in
good condition as well as to avoid any accident and trouble, carry out periodic
inspection and maintenance. Check the following points before use.
Service Internal
Check Points
Reference
I
Page
Daily (Each use)
Check the transmission fluid level
S-2
Check the hydraulic hoses
S-2
Every 10 hours
Grease all grease fittings
S-2
Lubricate jOints of control lever linkage
S-2
i
I
W1010764
S-1
