LA1153.
LA1353.
WSM
FRONT
LOADER

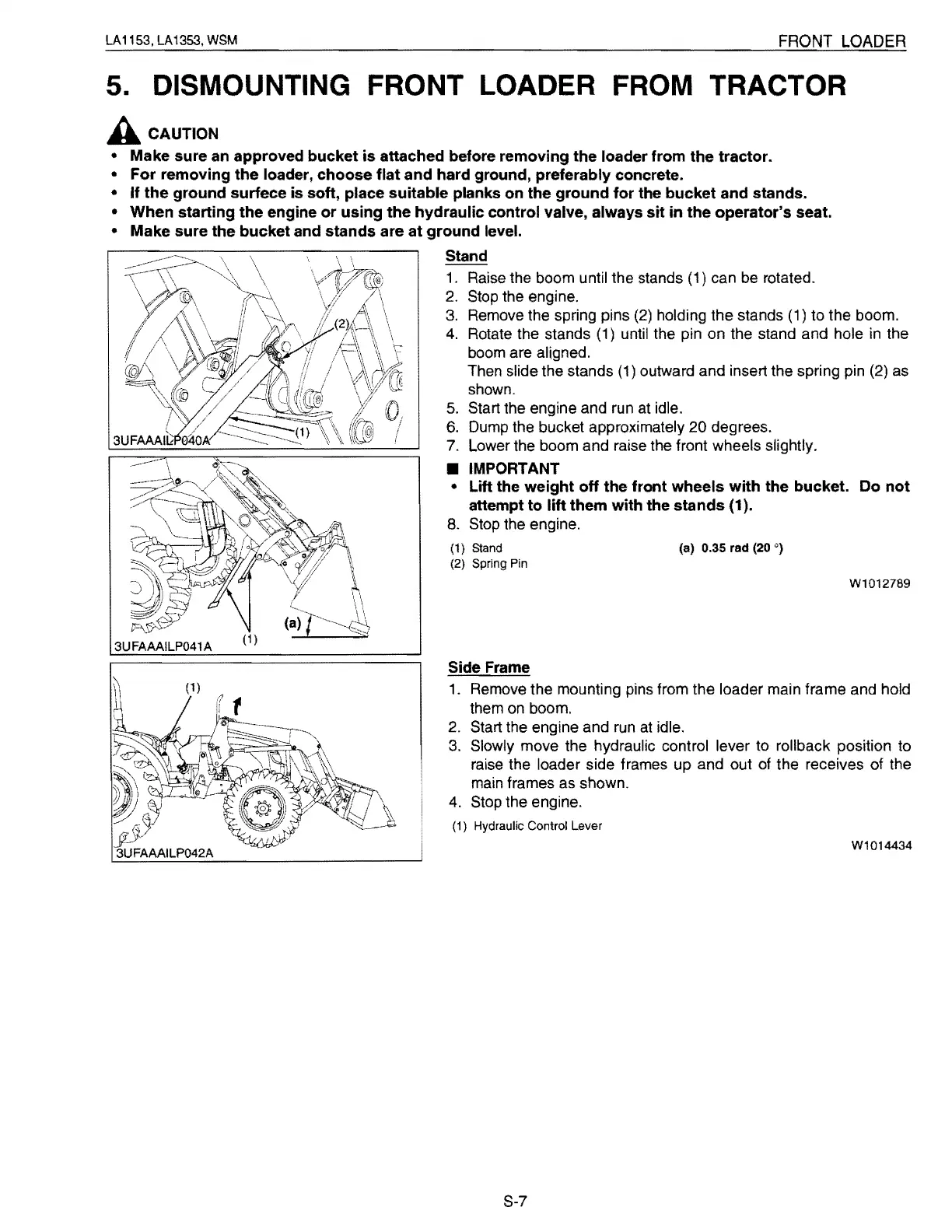

5. DISMOUNTING FRONT LOADER FROM TRACTOR
(1
)
3UFAAAILP041A
A CAUTION
• Make sure an approved
bucket
is
attached before removing the loader from the tractor.
•
For
removing
the
loader, choose
flat
and hard ground, preferably concrete.
•
If
the
ground surfece
is
soft, place suitable planks
on
the
ground
for
the bucket and stands.
• When starting the engine
or
using
the
hydraulic
control valve, always
sit
in
the operator's seat.
• Make sure the
bucket
and stands are at
ground
level.
Stand
1.
Raise the boom until the stands (1) can be rotated.
2.
Stop the engine.
3.
Remove the spring pins
(2)
holding the stands
(1)
to the boom.
4.
Rotate the stands (1) until the pin on the stand and hole
in
the
boom are aligned.
Then slide the stands
(1)
outward and insert the spring pin
(2)
as
shown.
5.
Start the engine and run at idle.
6.
Dump the bucket approximately 20 degrees.
7.
Lower the boom and raise the front wheels slightly .
• IMPORTANT
• Lift the
weight
off
the
front
wheels
with
the bucket. Do
not
attempt
to
lift
them
with
the
stands
(1).
8.
Stop the engine.
(1) Stand
(a) 0.35 rad (20
0)
(2) Spring
Pin
W1012789
Side Frame
1.
Remove the mounting pins from the loader main frame and hold
them
on
boom.
2.
Start the engine and run
at
idle.
3.
Slowly move the hydraulic control lever to rollback position to
raise the loader side frames up and out of the receives of the
main frames as shown.
4.
Stop the engine.
(1) Hydraulic Control Lever
W1014434
S-7
To Next Page
