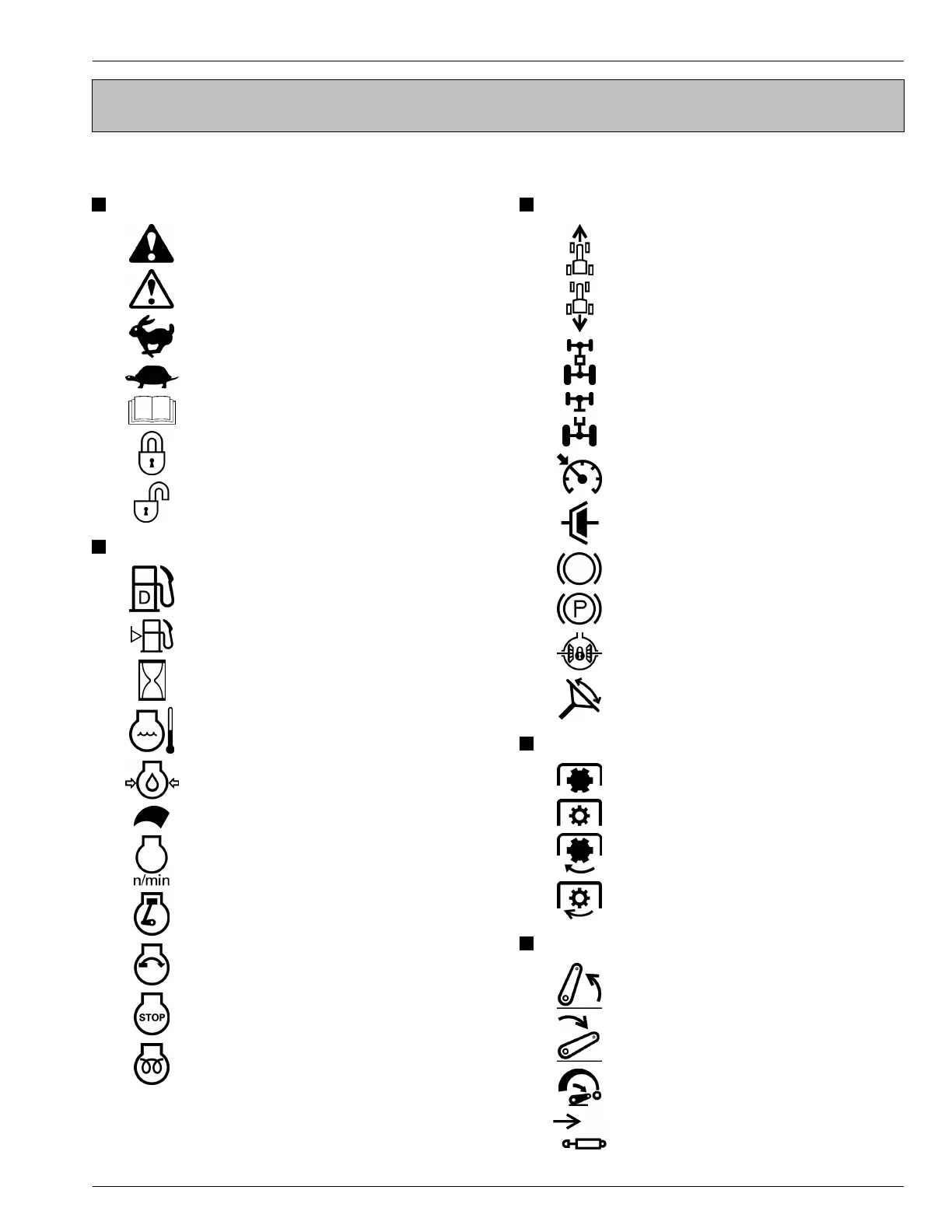

UNIVERSAL SYMBOLS
As a guide to the operation of your tractor, various universal symbols have been utilized on the instruments and
controls. The symbols are shown below with an indication of their meaning.
General
Safety alert symbol
Master system warning
Fast
Slow
Read operator's manual
Lock
Unlock
Engine-related
Diesel fuel
Fuel level
Hour meter / elapsed operating hours
Engine coolant - temperature
Engine oil - pressure
Engine speed control
Engine - rotational speed
Engine - run
Engine - start
Engine - stop
Diesel preheat / glow plugs (low
temperature start aid)
Vehicle body-related
Tractor forward movement - overhead
view
Tractor rearward movement -
overhead view
4-wheel drive - on
4-wheel drive - off
Cruise control / speed set
Clutch
Brake
Parking brake
Differential lock
Steering wheel - tilt control
PTO-related
PTO - off (disengaged)
PTO - off (disengaged)
PTO - on (engaged)
PTO - on (engaged)
Hydraulic-related
Position control - raised position
Position control - lowered position
3-point lowering speed control
Remote cylinder - retract
UNIVERSAL SYMBOLS
