Kubota M108S Workshop Manual

6-S6
M108S, WSM
FRONT AXLE

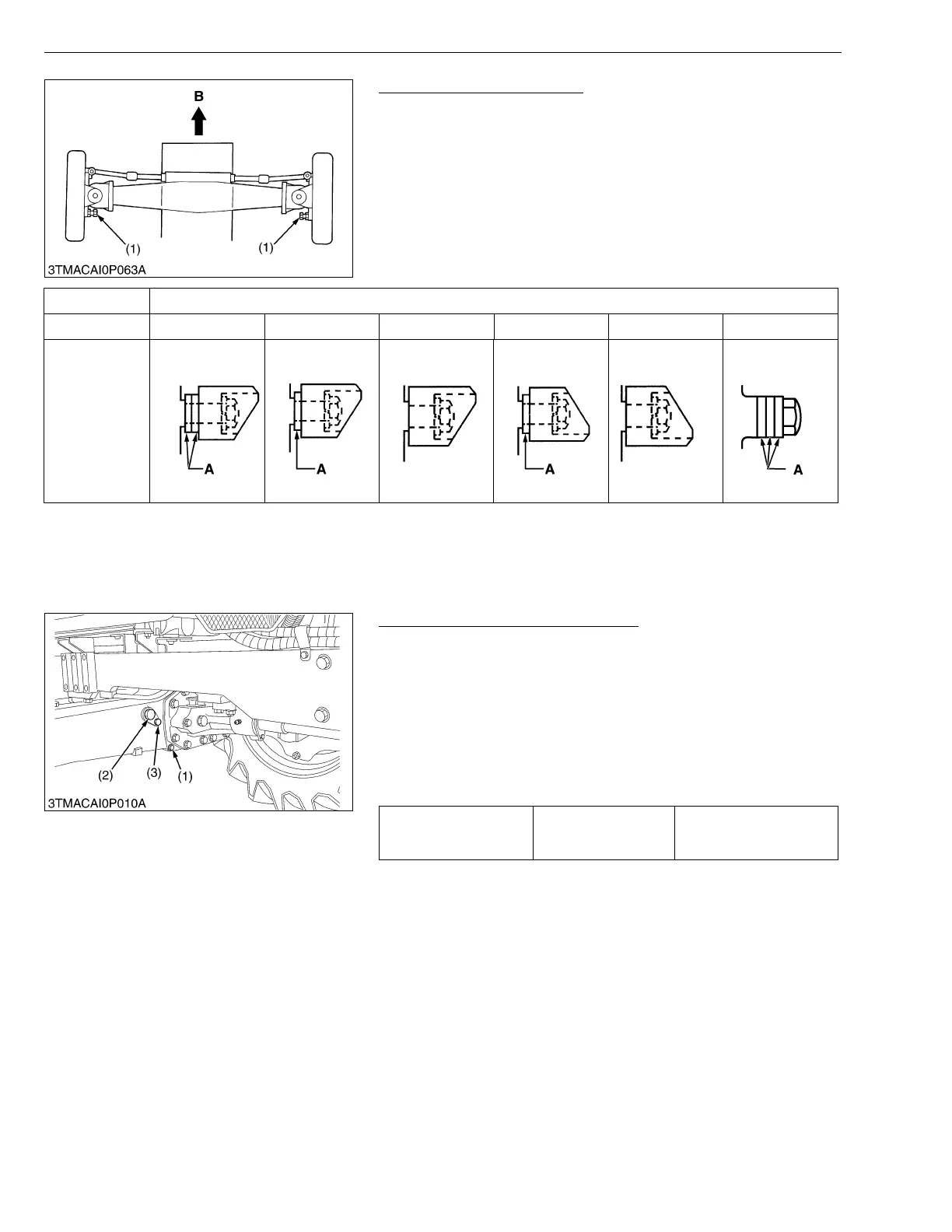

Front Wheel Steering Angle
1. Inflate the tires to the specified pressure.
2. Adjust turning angle with the stopper bolts table below.
3. The right side is similarly adjusted.
IMPORTANT■
• Always check if tires contact with tractor or loader frame
assemblies.
W1019340
A : 5 mm (0.2 in.) Collar
[2] DISASSEMBLING AND ASSEMBLING
(1) Separating Front Axle [4WD Type]
Draining Front Differential Case Oil
1. To drain the used oil, remove the drain and filling plug (1), (2) at
the front differential case and drain the oil completely into the oil
pan.
2. After draining, reinstall the drain plug (1).
3. Remove the oil level check plug (3).
4. Fill with the new oil up to the lower rim of check plug port.
Refer to “4. LUBRICANTS, FUEL AND COOLANT” at “G.
GENERAL” section.
5. After filling, reinstall the filling plug (2) and check plugs (3).
W1013503
(1) Stopper Bolt B : Front
Stopper Bolt (ex. LH stopper bolt)
Angle 0.52 rad (30 °) 0.58 rad (33 °) 0.65 rad (37 °) 0.73 rad (42 °) 0.79 rad (45 °) 0.87 rad (50 °)
Stopper
Front differential case oil Capacity
7.0 L
7.4 U.S.qts
6.2 Imp.qts
(1) Drain Plug
(2) Filling Plug
(3) Check Plug
KiSC issued 06, 2007 A
