TRANSAXLE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
2-M1

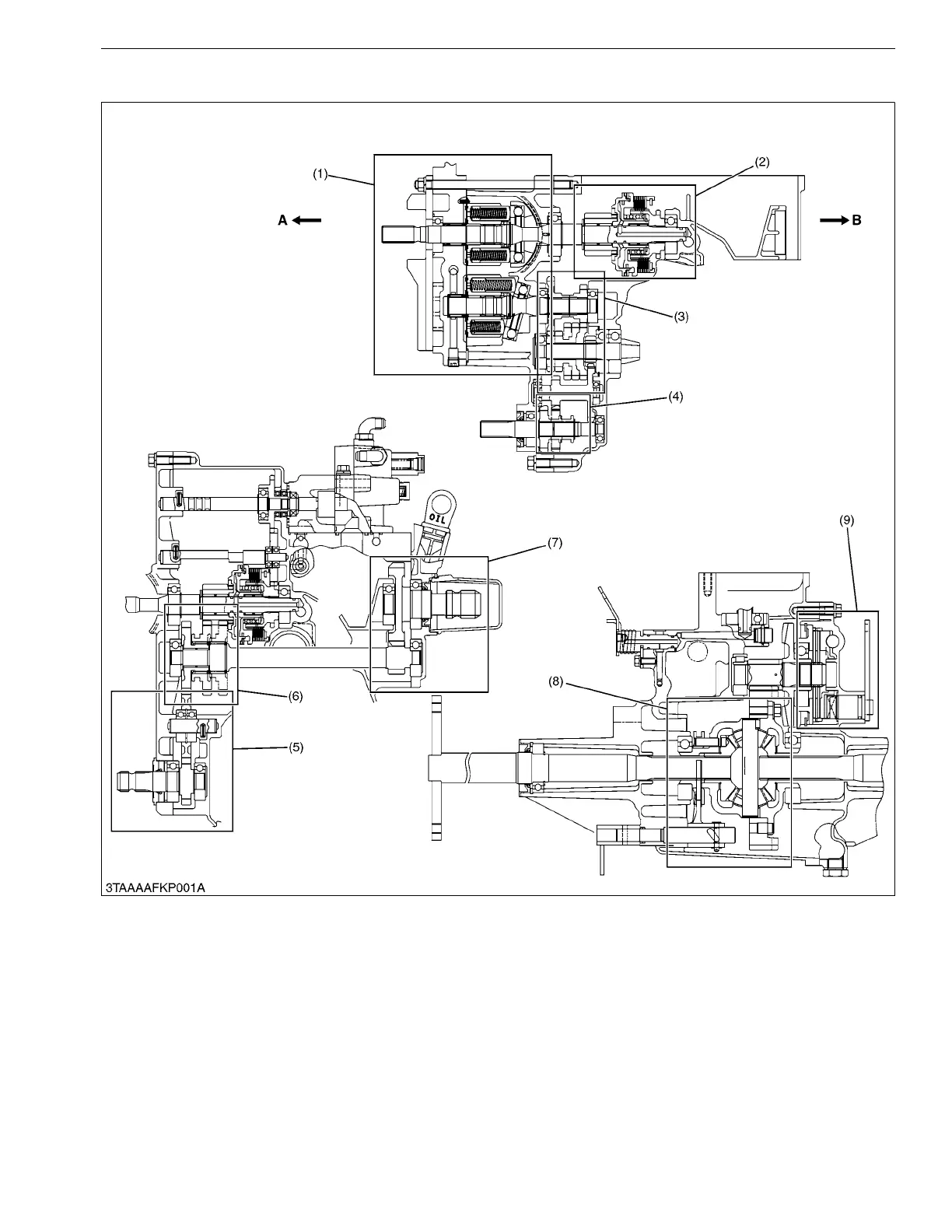

1. STRUCTURE
9Y1210855TXM0001US0
(1) Hydrostatic Transmission
(2) PTO Clutch Section
(3) Range Gear Shift Section
(4) Front Wheel Drive Gear
Section
(5) Mid-PTO Section
(6) PTO Gear Shift Section
(7) Rear PTO Section
(8) Differential Gear Section
(9) Brake Section
A: Front Side
B: Rear Side
KiSC issued 02, 2017 A
