ENGINE
SM-E4B SERIES, WSM
1-S36
(Continued)

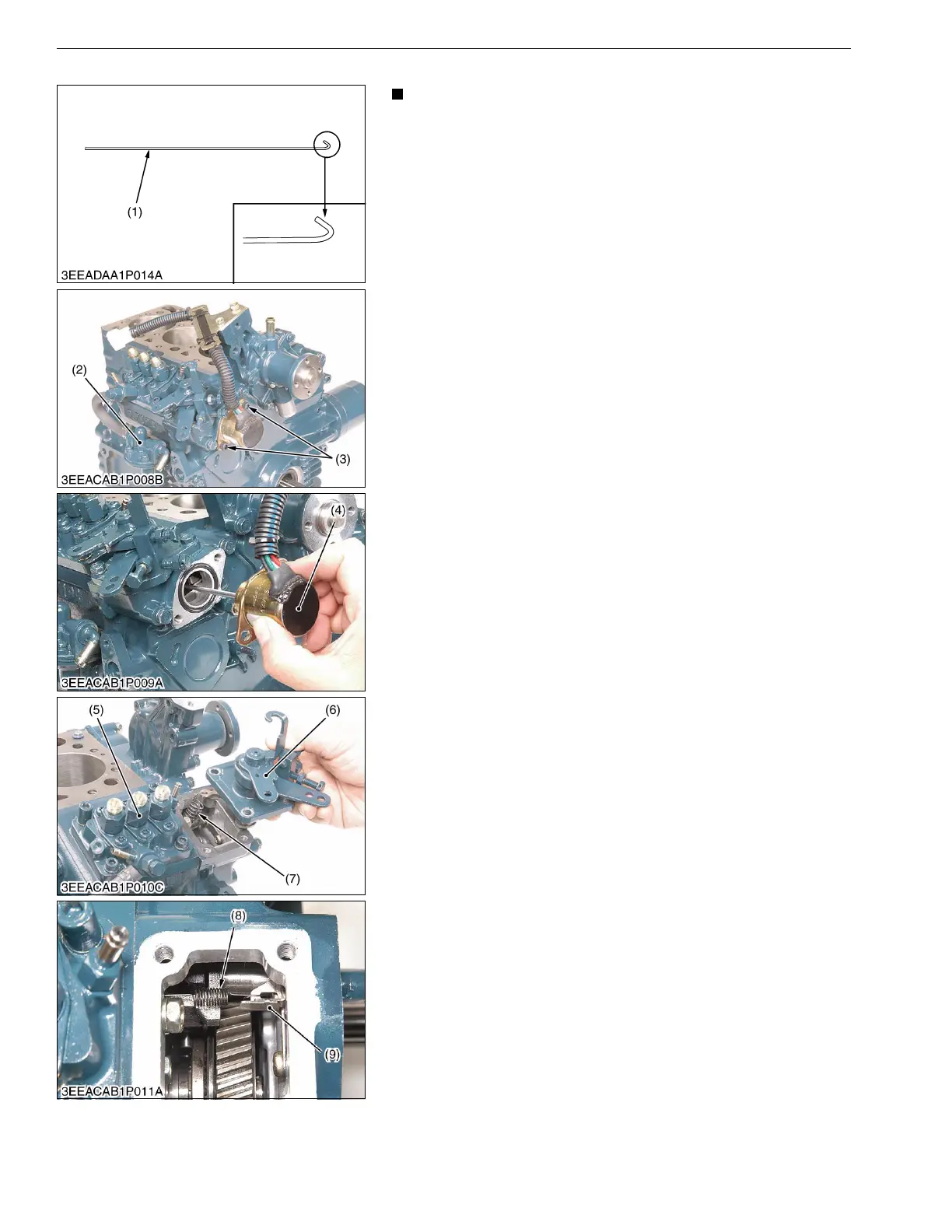

NOTE
• Specific tool (1) :
1.2 mm (0.047 in.) diameter hard wire with its end hooked,
overall length 200 mm (7.87 in.).
The tip of wire is bent like the hook to hang governor
springs.
1. Remove the socket head screws (3), and remove the engine
stop solenoid (4).
2. Remove the screws and separate the speed control plate (6),
taking care not to damage the governor spring (7).
3. Disconnect the governor spring (7) and remove the speed
control plate (6) using the specific tool (1).
4. Remove the fuel feed pump (2).
5. Disconnect the start spring (8) from the bracket (9) using the
specific tool (1).
6. Remove the socket head screws and nuts, and remove the
injection pump (5).
(To be continued)
(1) Specific Tool
(2) Fuel Feed Pump
(3) Socket Head Screw
(4) Engine Stop Solenoid
(5) Injection Pump
(6) Speed Control Plate
(7) Governor Spring
(8) Start Spring
(9) Bracket
KiSC issued 01, 2013 A
