Kubota SM-E4B Series User Manual

ENGINE
SM-E4B SERIES, WSM
1-S49

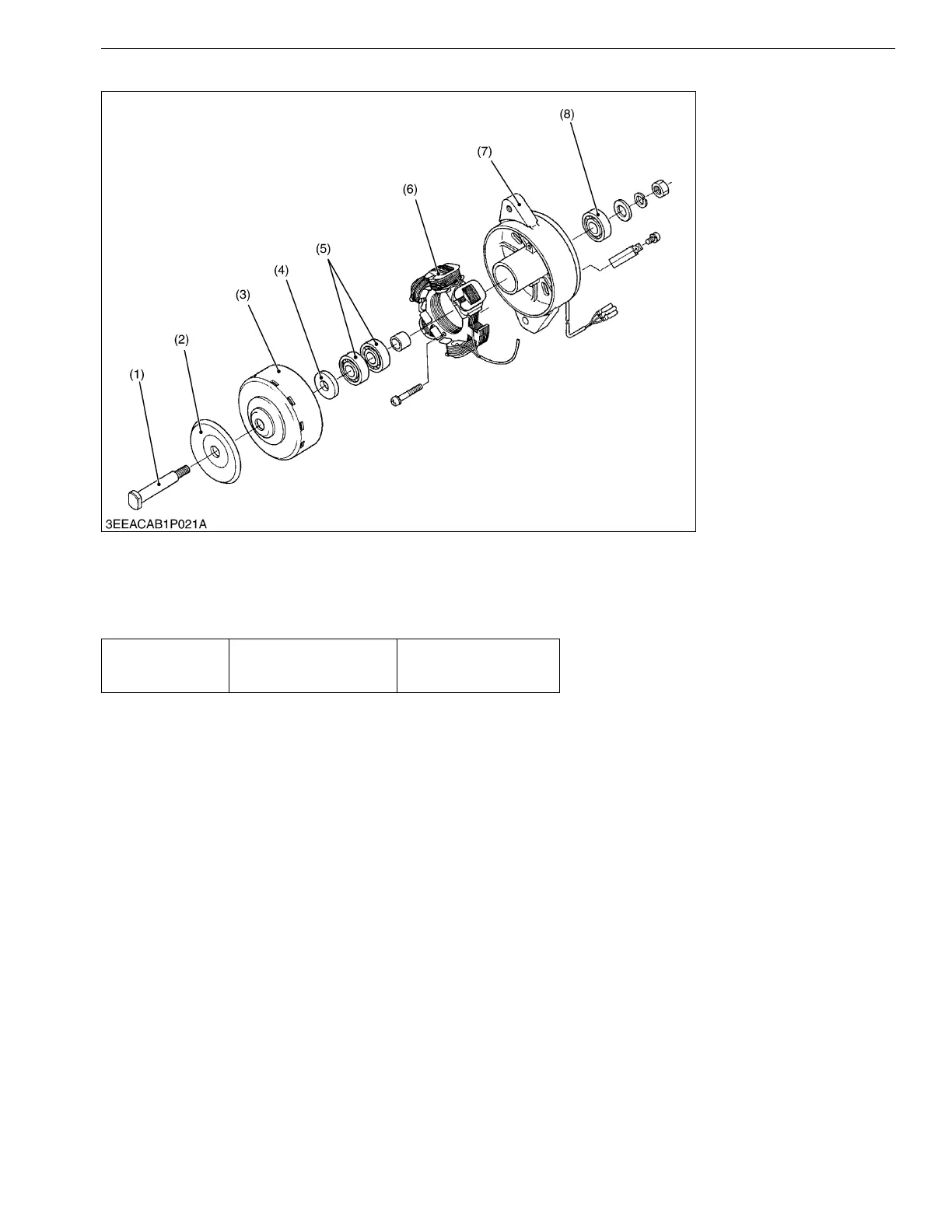

(8) Dynamo
1. Remove the nut and separate the plate (7).
2. Tap out the shaft (1) from the rotor (3).
3. Unscrew the screws and remove the stator (6).
(When reassembling)
• Take care the direction of the collar (4), the flat side should face to the pulley side.
9Y1210785ENS0059US0
(1) Shaft
(2) Pulley
(3) Rotor
(4) Collar
(5) Bearing
(6) Stator
(7) Plate
(8) Bearing
Tightening torque Pulley nut
40 to 44 N·m
4.0 to 4.5 kgf·m
29 to 32 lbf·ft
KiSC issued 01, 2013 A
