GENERAL
SM-E4B SERIES, WSM
G-22
[11] CHECK POINT OF EVERY YEAR

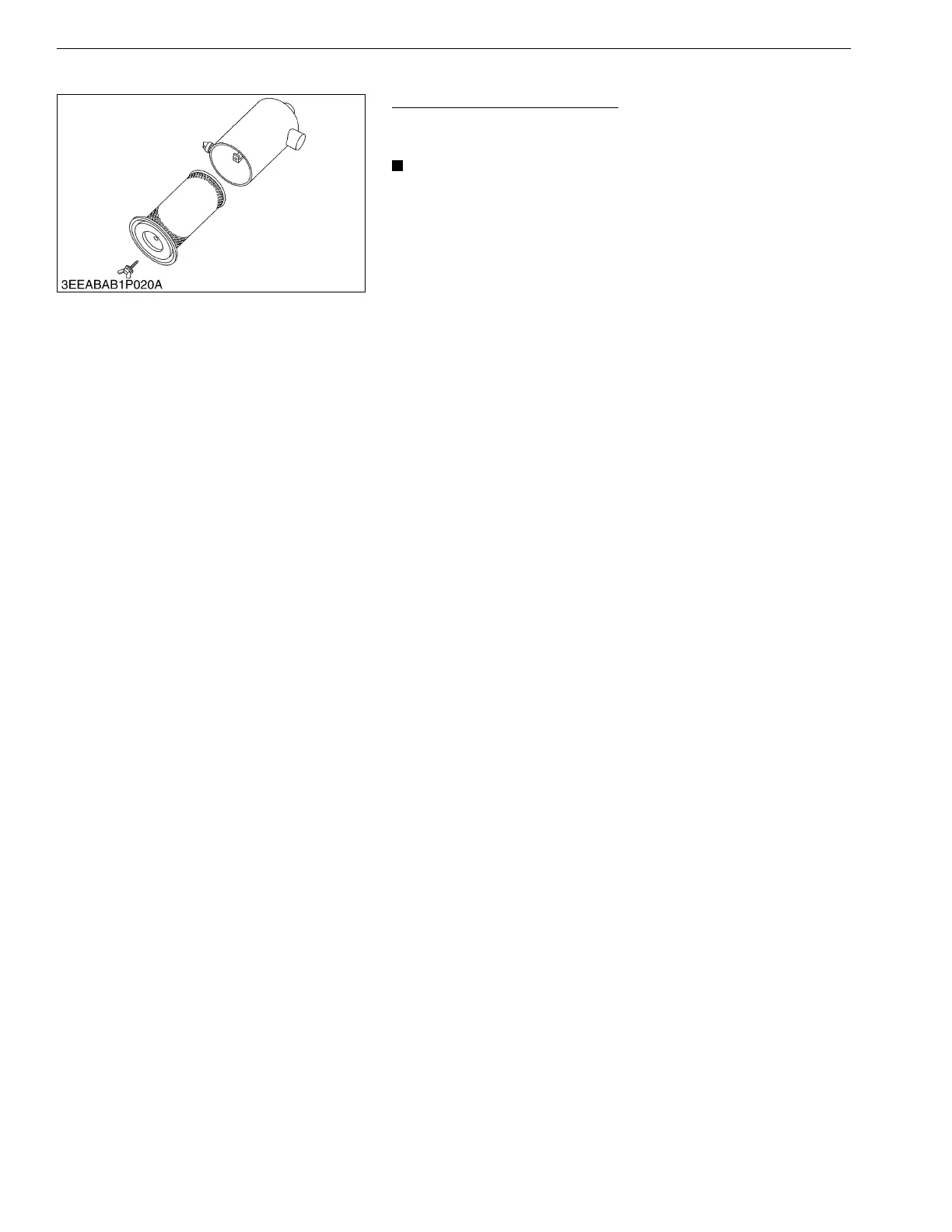

Replacing Air Clea
ner Element
1.
Remove used air cleaner element.
2.
Replace new air cleaner element.
NOTE
•
The air cleaner uses a dry elem
en
t. Never apply oil to it.
•
Do not run the engine with filter
element removed.
9Y1210785GEG0029US0
KiSC issued 01, 2013 A
42
44
Table of Contents
Information
4
Safety First
5
Specifications
8
Performance Curves
10
Dimensions
15
General
21
Default Chapter
21
Table of Contents
21
1 Engine Identification
22
Model Name and Engine Serial Number
22
E4B Engine
24
Cylinder Number
24
2 General Precaution
25
3 Maintenance Check List
26
4 Check and Maintenance
28
Daily Check Points
28
Check Points of Initial 50 Hours
30
Check Point of Every 50 Hours
32
Check Points of Every 75 Hours
33
Check Points of Every 100 Hours
34
Check Points of Every 150 Hours
36
Check Points of Every 200 Hours
37
Check Points of Every 400 Hours
38
Check Points of Every 500 Hours
39
Check Points of Every 1 or 2 Months
41
Check Point of Every Year
43
Check Point of Every 800 Hours
44
Check Points of Every 1500 Hours
45
Check Points of Every 3000 Hours
47
Check Points of Every 2 Years
50
5 Special Tools
54
Mechanism
60
1 Engine Body
61
Half-Floating Head Cover
61
Closed Breather
61
Piston (Z602-E4B, D782-E4B, D902-E4B)
62
Oil Pan (Z602-E4B, D902-E4B)
62
2 Cooling System
63
Cooling Fin (Z602-E4B, D902-E4B)
63
Servicing
64
1 Troubleshooting
65
2 Servicing Specifications
68
3 Tightening Torques
76
Tightening Torques for General Use Screws, Bolts and Nuts
76
Tightening Torques for Special Use Screws, Bolts and Nuts
77
4 Checking, Disassembling and Servicing
78
Checking and Adjusting
78
Engine Body
78
Lubricating System
80
Cooling System
81
Fuel System
83
Electrical System
87
Disassembling and Assembling
93
Draining Engine Oil and Coolant
93
External Components
94
Cylinder Head, Valves and Oil Pan
94
Gear Case and Timing Gears
99
Piston and Connecting Rod
105
Flywheel and Crankshaft
107
Starter
111
Dynamo
113
Alternator
114
Servicing
115
Cylinder Head and Valves
115
Specifications
118
Timing Gears
120
Piston and Connecting Rod
123
Crankshaft
125
Cylinder
131
Oil Pump
132
Starter
133
Alternator
136
4
