ENGINE
SM-E4B SERIES, WSM
1-S39

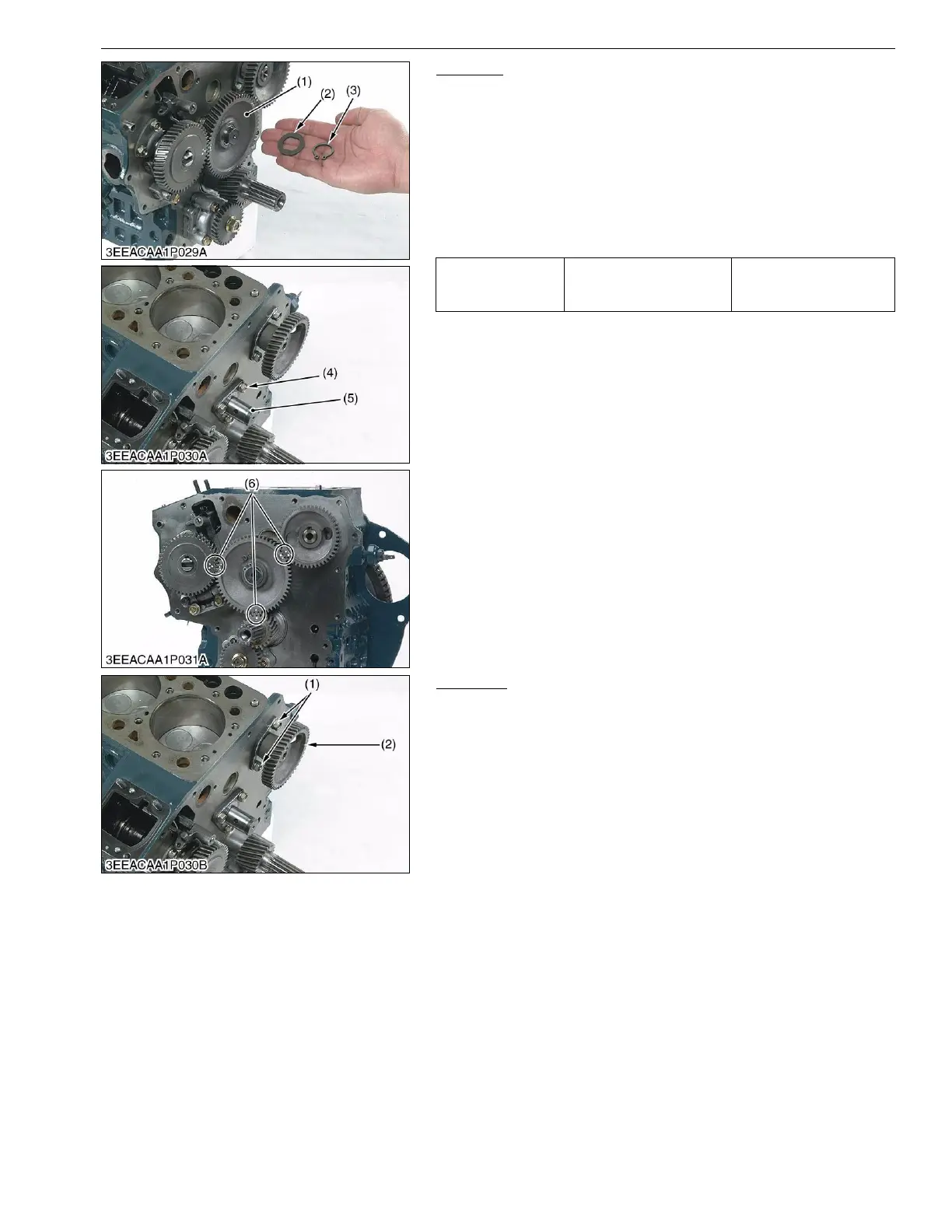

Idle Gear
1. Remove the external snap ring (3), the collar (2) and the idle
gear (1).
2. Remove the idle gear shaft mounting screws (4).
3. Remove the idle gear shaft (5) (if necessary).
(When reassembling)
• Apply engine oil to the idle gear shaft mounting screw (4). And
tighten them.
• Install the idle gear, aligning the mark (6) on the gears referring
to the photo.
9Y1210785ENS0044US0
Camshaft
1. Remove the camshaft mounting screws (1) and draw out the
camshaft with gear (2) on it.
(When reassembling)
• When install the camshaft, apply engine oil to the camshaft
journals.
• Apply engine oil to the camshaft mounting screws. And tighten
them.
9Y1210785ENS0045US0
Tightening torque
Idle gear shaft mounting
screw
9.81 to 11.2 N·m
1.00 to 1.15 kgf·m
7.24 to 8.31 lbf·ft
(1) Idle Gear
(2) Idle Gear Collar
(3) External Snap Ring
(4) Idle Gear Shaft Mounting Screw
(5) Idle Gear Shaft
(6) Alignment Mark
(1) Camshaft Mounting Screw (2) Camshaft Gear
KiSC issued 01, 2013 A
