ENGINE
SM-E4B SERIES, WSM
1-S63

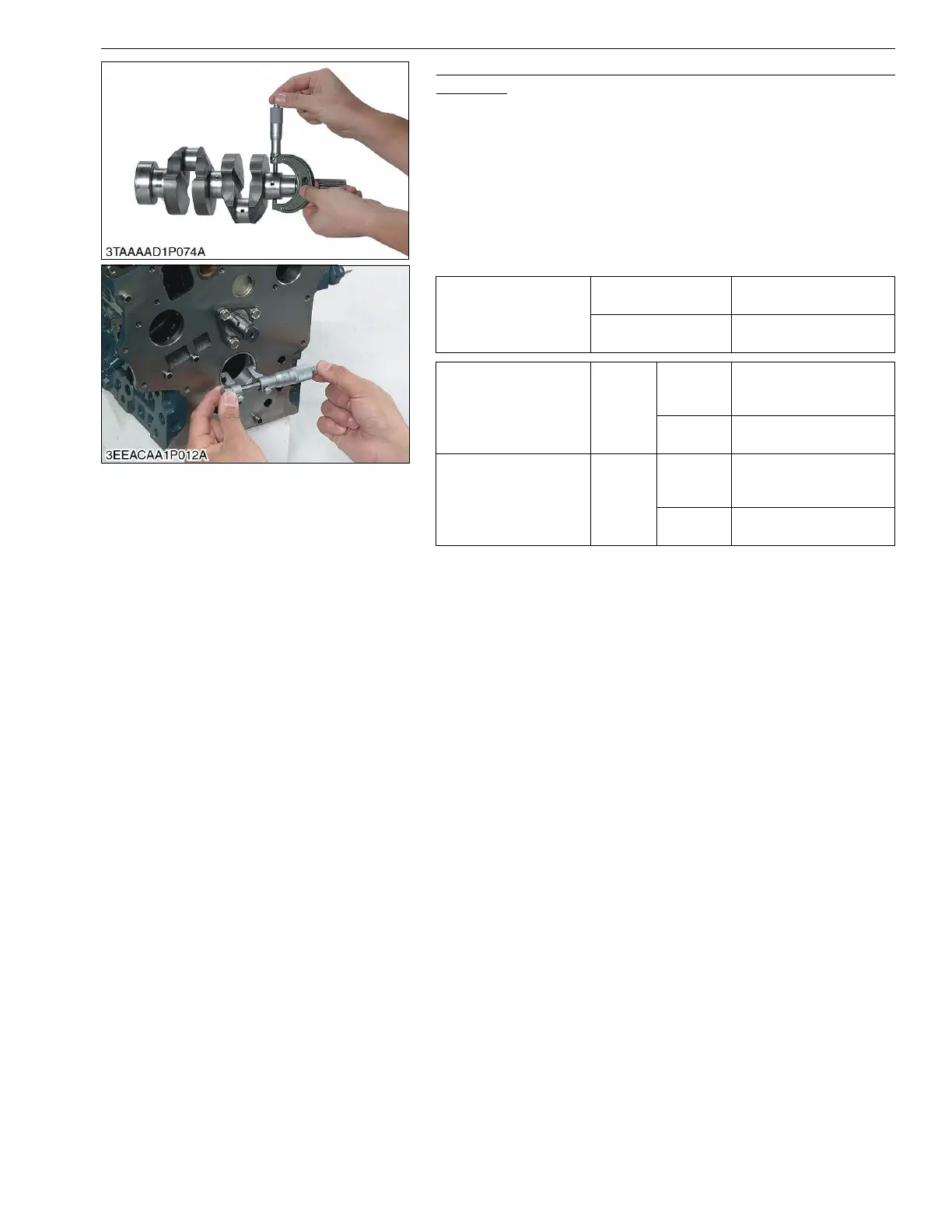

Oil Clearance between Crankshaft Journal and Crankshaft
Bearing 1
1. Measure the O.D. of the crankshaft front journal with an outside
micrometer.
2. Measure the I.D. of the crankshaft bearing 1 with an inside
micrometer, and calculate the oil clearance.
3. If the oil clearance exceeds the allowable limit, replace the
crankshaft bearing 1.
4. If the same size bearing is useless because of the crankshaft
journal wear, replace it with an undersize one referring to the
table and the figure.
(To be continued)
Oil Clearance between
crankshaft journal and
crankshaft bearing 1
Factory specification
0.0340 to 0.106 mm
0.00134 to 0.00417 in.
Allowable limit
0.20 mm
0.0079 in.
Crankshaft journal O.D.
Factory
specifi-
cation
Z482-E4B
D722-E4B
D782-E4B
39.934 to 39.950 mm
1.5722 to 1.5728 in.
Z602-E4B
D902-E4B
43.934 to 43.950 mm
1.7297 to 1.7303 in.
Crankshaft bearing 1 I.D.
Factory
specifi-
cation
Z482-E4B
D722-E4B
D782-E4B
39.984 to 40.040 mm
1.5742 to 1.5763 in.
Z602-E4B
D902-E4B
43.984 to 44.040 mm
1.7317 to 1.7338 in.
KiSC issued 01, 2013 A
