53PERIODIC SERVICE
ENGLISH
PERIODIC SERVICE
To avoid personal injury:
A Do not work under any hydraulically supported
devices. They can settle, suddenly leak down,
or be accidentally lowered. If necessary to work
under tractor or any machine elements for
servicing or adjustment, securely support them
with stands or suitable blocking beforehand.

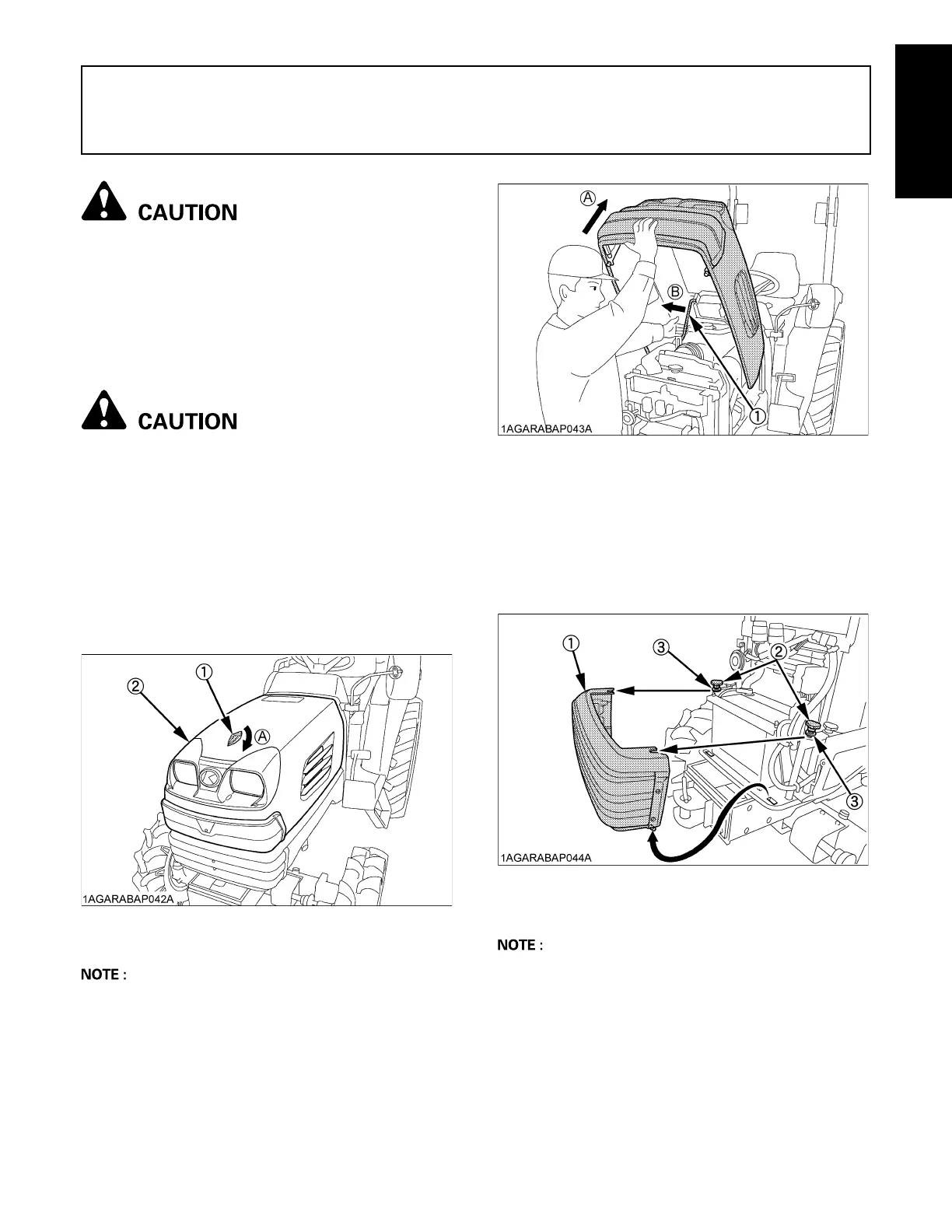

HOW TO OPEN THE HOOD
To avoid personal injury from contact with moving
parts;
A Never open the hood or engine side cover while
the engine is running.
A Do not touch muffler or exhaust pipes while
they are hot; Severe burns could result.
A Support hood with other hand while unlocking
support link.
BHood
To open the hood, twist the mascot to release the latch
and open the hood.
A To close the hood, hold the hood and release the
support link.
BEngine Side Cover and Front Grill
1. To remove the front grill, loosen knob bolts, pull
outward as indicated by arrows, and then lift the front
grill off.
A When reassembling the front grill. Put the plain washer
on the oblong hole.
2. To remove the engine side cover, un-screw the knob
bolt and then pull cover off.
(1) Mascot
(2) Hood
(A) "OPEN"
(1) Support link (A) "HOLD"
(B) "PULL"
(1) Front grill
(2) Knob bolt
(3) Plain washer
To Next Page
