MOWER MOUNTING
ATTACHING THE MOWER
WARNING
To avoid serious injury or death:
• Shut off the engine and remove the key before
attaching the mower.

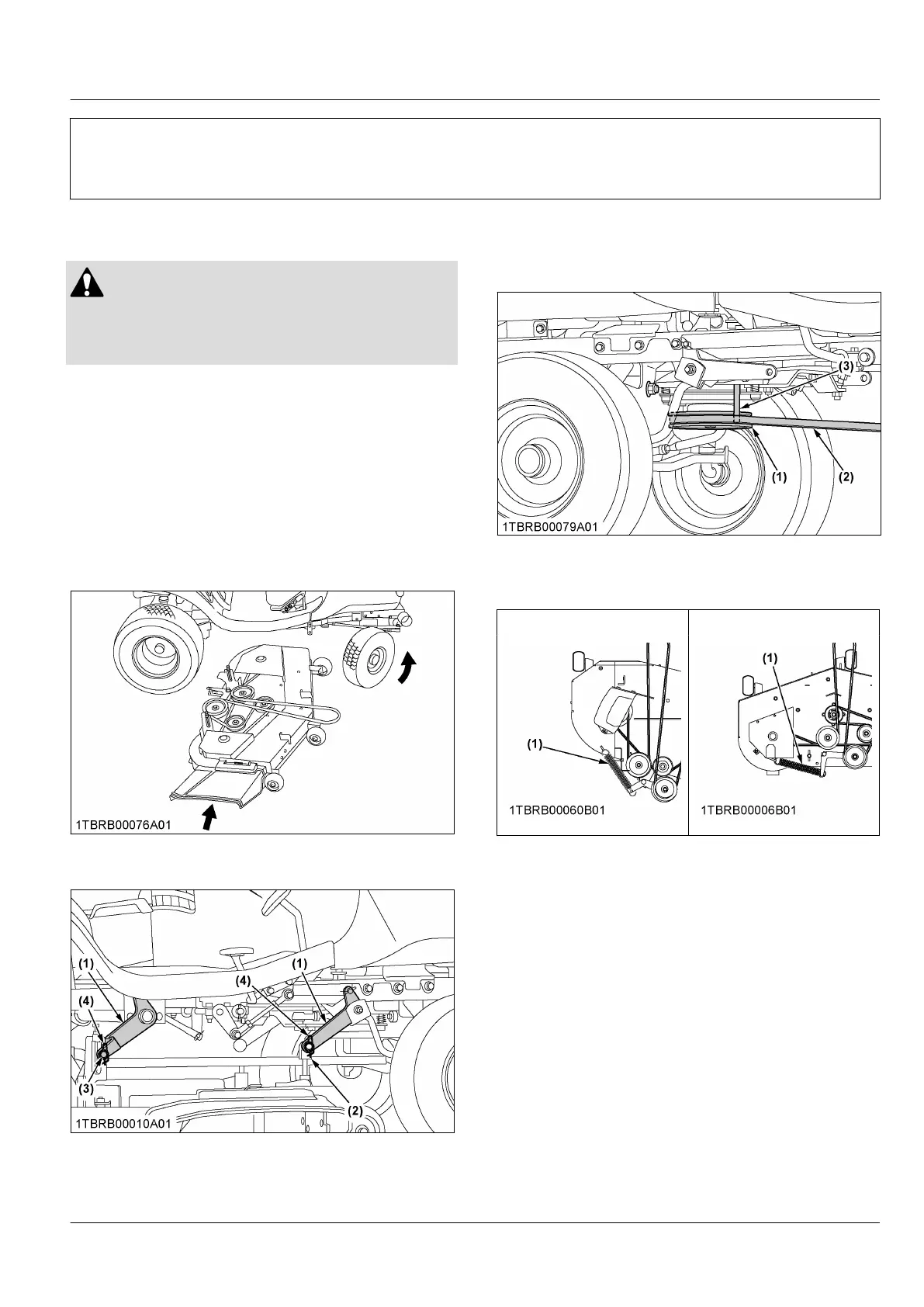

1. Mounting the mower deck
1. Park the machine on level ground and place the
mower deck at the right side of machine.
Raise mower lift lever and lock in raised position.
2. Turn the front wheels to the left. Slide the mower
under the machine, then return wheels to straight
ahead position.
3. Adjust height control dial to [1] and lower mower lift
lever and lock in lower position.
4. Attach the mower deck to the link and mower link
with 2 clevis pins and 4 rue-ring pins.
(1) Mower link
(2) Link
(3) Clevis pin
(4) Rue-ring pin
5. Attach the mower belt to the engine pulley. See the
belt routing. The mower belt must be outside of the
guard pin.
(1) Engine pulley
(2) Mower belt
(3) Guard pin
6. Attach the tension spring.
RCK42P RCK48P
(1) Tension spring
ADJUSTING THE MOWER DECK
(FOR BEAUTIFUL FINISH CUT)
See OPERATING THE MOWER on page 32 and
ADJUSTMENT on page 64.
DISMOUNTING THE MOWER
DECK
For dismounting the mower deck, reverse the above
procedures.
ATTACHING THE MOWER MOWER MOUNTING
T2090BR-AU,T2290KW-AU,T2290KWT-AU
