Assembly and functions
54

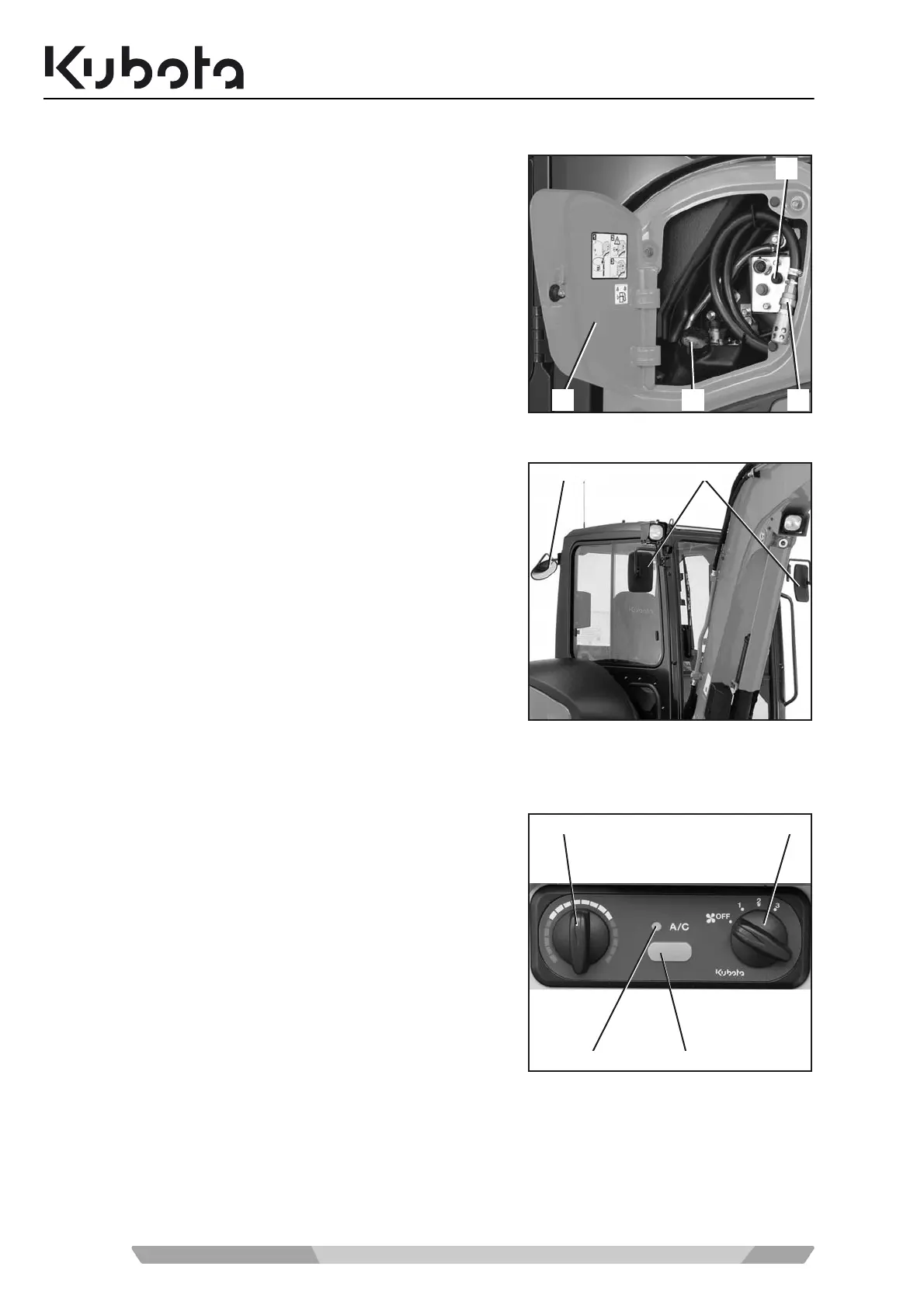

Tank filler neck and fill level monitor with suction pump (optional only KX057-4)
The excavator can be equipped with an optional suction pump (2).
With this equipment, the suction pump, the tank filler neck (3) and
the fill level monitor (1) are located below the left service cover (4)
(only if equipped with optional suction pump).
Rear view mirror
The rear view mirror (1) allows visibility down towards the rear of the
excavator. The front rear view mirrors (2) allows visibility to the rear.
The rear view mirrors can be adjusted for optimum visibility of the
respective areas.
Heating and air-conditioning system (optional)
The heating controls are on the right control console. The control
panel includes the following components:
1. Temperature control
2. Blower switch
3. Air-conditioner switch (optional)
4. Indicator (optional)
Using the air-conditioner switch, you can switch on the air-conditioner when the starter switch is in the RUN posi-
tion and the fan is switched on. Operation of the air-conditioner system (optional) is indicated by the indicator.
Using the temperature control, you can set the air temperature to the desired value.
Using the blower switch, you can control the air flow in three stages, with stage 3 having the maximum air flow.
4
1
2
3
1 2
1 2
34
