ENGINE
DIESEL PARTICULATE FILTER HANDLING MANUAL, WSM
1-S30

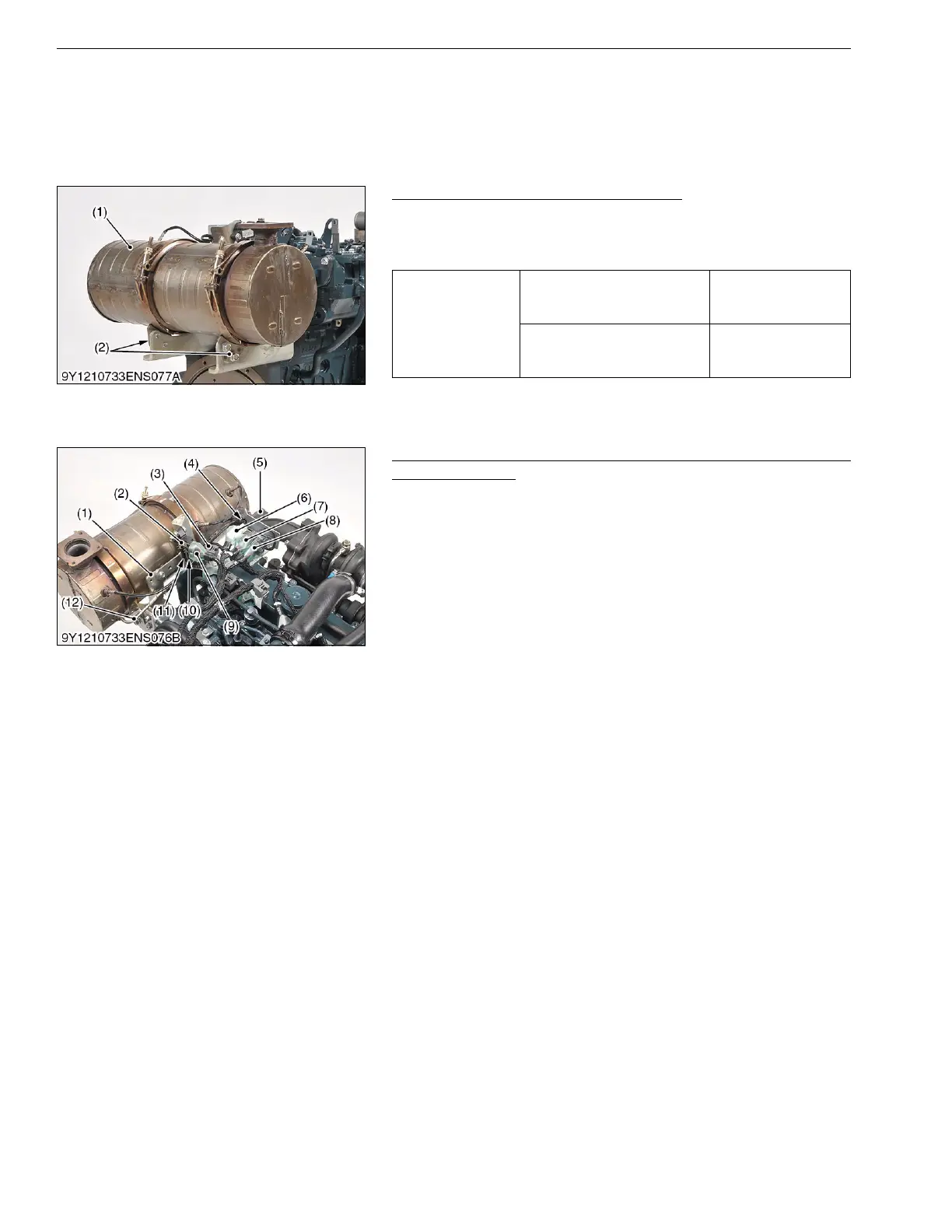

[11] MOUNTING OF DPF MUFFLER FULL ASSEMBLY
Follow the below procedures to mount DPF muffler full assy to a product (engine).
After mounting it, start up an engine and check gas leak.
(1) D1803-CR-E4, D1803-CR-TE4, V2403-CR-E4, V2403-CR-TE4
Mounting of DPF Muffler Full Assembly
1. Assemble the DPF muffler full assembly (DPF) (1) with the
muffler full assembly (DPF) mounting screw (2) and the screw
of muffler flange.
Connector of Exhaust Temperature Sensor and Differential
Pressure Sensor
1. Install the differential pressure sensor bracket (1).
2. Install the differential pressure sensor (2).
3. Connect the tube (10), (11) with differential pressure pipe (3)
and (12), and fix the tube with a clamp surely.
4. Connect the connectors of exhaust temperature sensor (6), (7),
(8), and fix the wiring with clamp (4).
5. Connect the connector of differential pressure sensor (9).
Tightening torque
Muffler full assembly (DPF)
mounting screw
49.0 to 55.9 N·m
5.00 to 5.70 kgf·m
36.2 to 41.2 lbf·ft
Screw of muffler flange
49.0 to 55.9 N·m
5.00 to 5.70 kgf·m
36.2 to 41.2 lbf·ft
(1) Muffler full assembly (DPF) (2) Muffler full assembly (DPF)
mounting screw
(1) Differential Pressure Sensor
Bracket
(2) Differential Pressure Sensor
(3) Differential Pressure Pipe
(4) Clamp
(5) Screw of Muffler Flange
(6) Connector of Exhaust Temperature
Sensor (T2)
(7) Connector of Exhaust Temperature
Sensor (T1)
(8) Connector of Exhaust Temperature
Sensor (T0)
(9) Connector of Differential Pressure
Sensor
(10) Tube
(11) Tube
(12) Differential Pressure Pipe
To Next Page
