ENGINE
DIESEL PARTICULATE FILTER HANDLING MANUAL, WSM
1-S31
(2) V2607-CR-E4

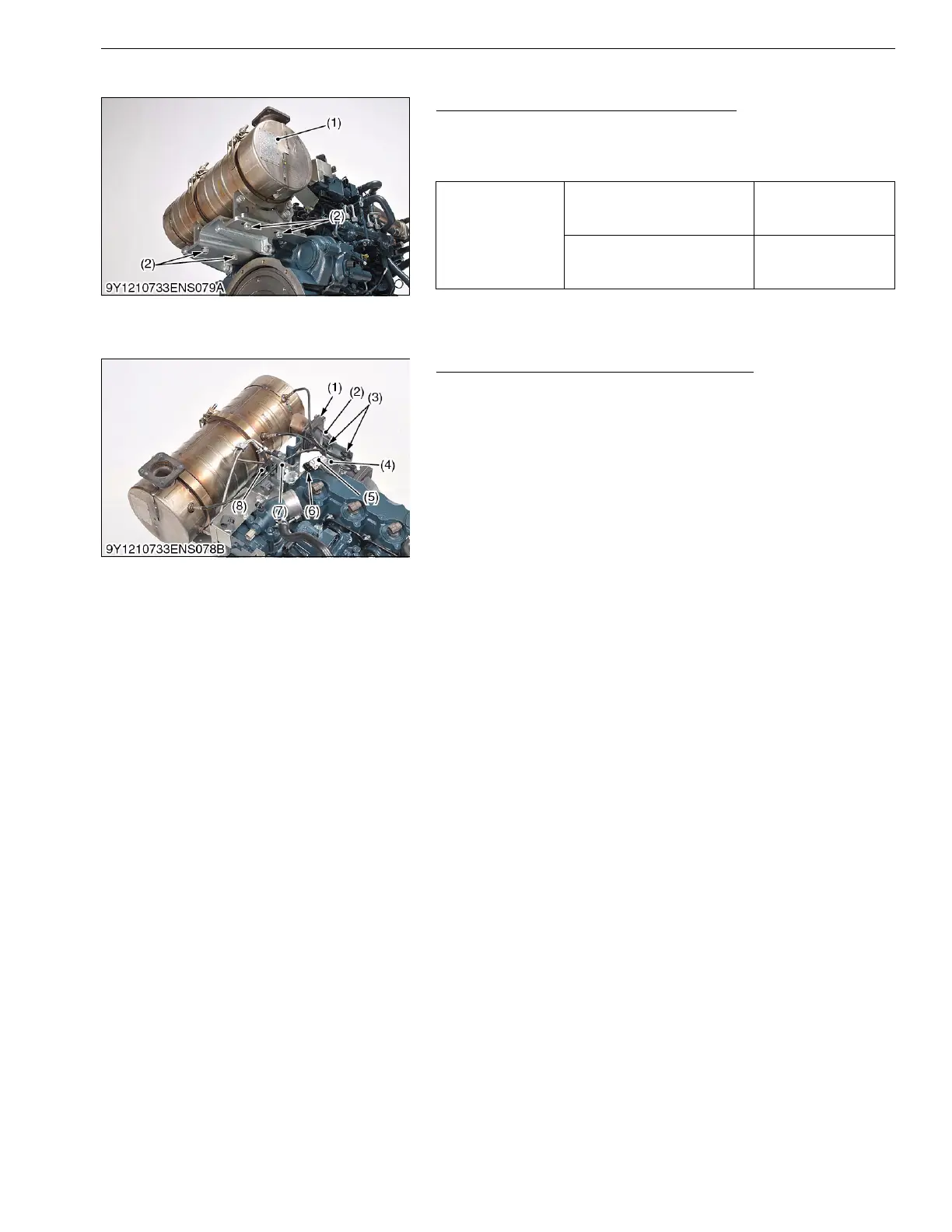

Mounting of Muffler Full Assembly (DPF)
1. Assemble the muffler full assembly (DPF) (1) with the muffler
full assembly (DPF) mounting screw (2) and the screw of muffler
flange.
Connector of Exhaust Temperature Sensor
1. Install the differential pressure sensor bracket (7).
2. Install the differential pressure sensor (8) to the bracket (7).
3. Connect the connectors of exhaust temperature sensor (4), (5),
(6), and fix the wiring with clamp (3).
Tightening torque
Muffler full assembly (DPF)
mounting screw
49.0 to 55.9 N·m
5.00 to 5.70 kgf·m
36.2 to 41.2 lbf·ft
Screw of muffler flange
49.0 to 55.9 N·m
5.00 to 5.70 kgf·m
36.2 to 41.2 lbf·ft
(1) Muffler Full Assembly (DPF) (2) Muffler Full Assembly (DPF)
Mounting Screw
(1) Screw of Muffler Flange
(2) Muffler Flange
(3) Clamp
(4) Connector of Temperature Sensor
(T2)
(5) Connector of Temperature Sensor
(T1)
(6) Connector of Temperature Sensor
(T0)
(7) Differential Pressure Sensor
Bracket
(8) Differential Pressure Sensor
To Next Page
